350 Mag MPI Alpha-Bravo - Serial 0W060000 Thru 0W309999 - Water Distribution Housing

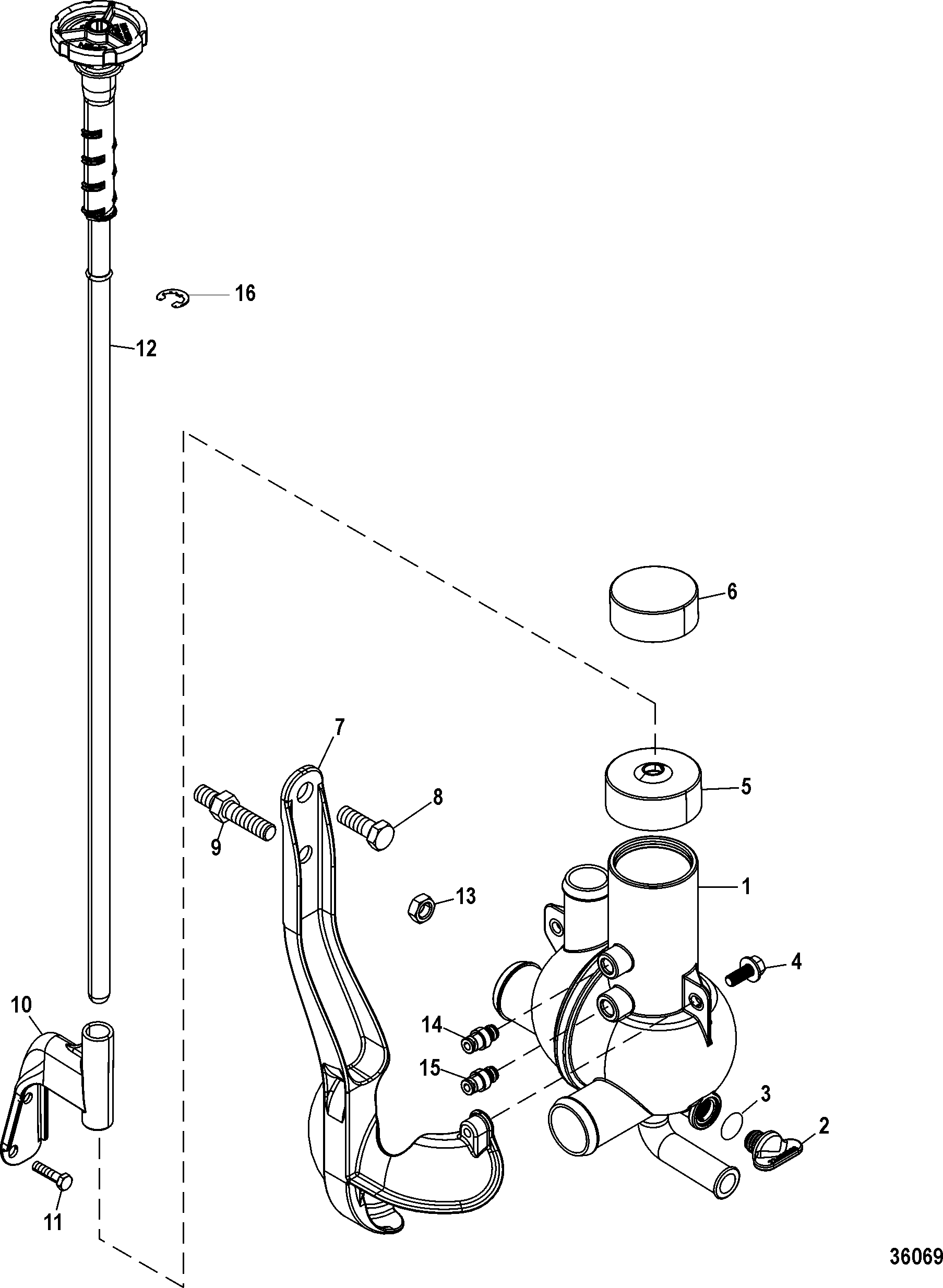

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 863631T1



HOUSING, Water Distribution 1
(Manual Drain)
1 863444T1



HOUSING, Water Distribution 1
(Rod Actuated)
1 863802T2



HOUSING, Water Distribution 1
(Air Actuated) (Closed Cool)
1 863444T2



HOUSING, Water Distribution 1
(Air Actuated) (Standard Cool)
2 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue 1 22-806608A1
3 25-32509



O-RING, (.489 x .070) 1

4 10-8175051



SCREW, (.250-20 x .625) 3

5 863839



COVER 1
(Rod Actuated)
6 863865



COVER 1
(Manual Drain)
7 863449T



BRACKET, Water Distribution Housing 1

8 10-34353


525-10-34353 SCREW, (.375-16 x 1.00) 1

9 16-805357



STUD, (.375-16 x 2.130) 1

10 863451T



BRACKET, Water Drain Actuator 1

11 10-34353


525-10-34353 SCREW, (.375-16 x 1.00) 2

12 863381A1



DRAIN ROD ASSEMBLY 1

13 11-82671112



NUT, (.375-16) 1

14 22-863499



FITTING, Air Valve, Orange 1
(Component of Air Actuated Housing Only)
15 22-863467



FITTING, Air Valve, Gray 1
(Component of Air Actuated Housing Only)
16 53-863741



E-RING 1
