350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Exhaust Manifold And Exhaust Elbow

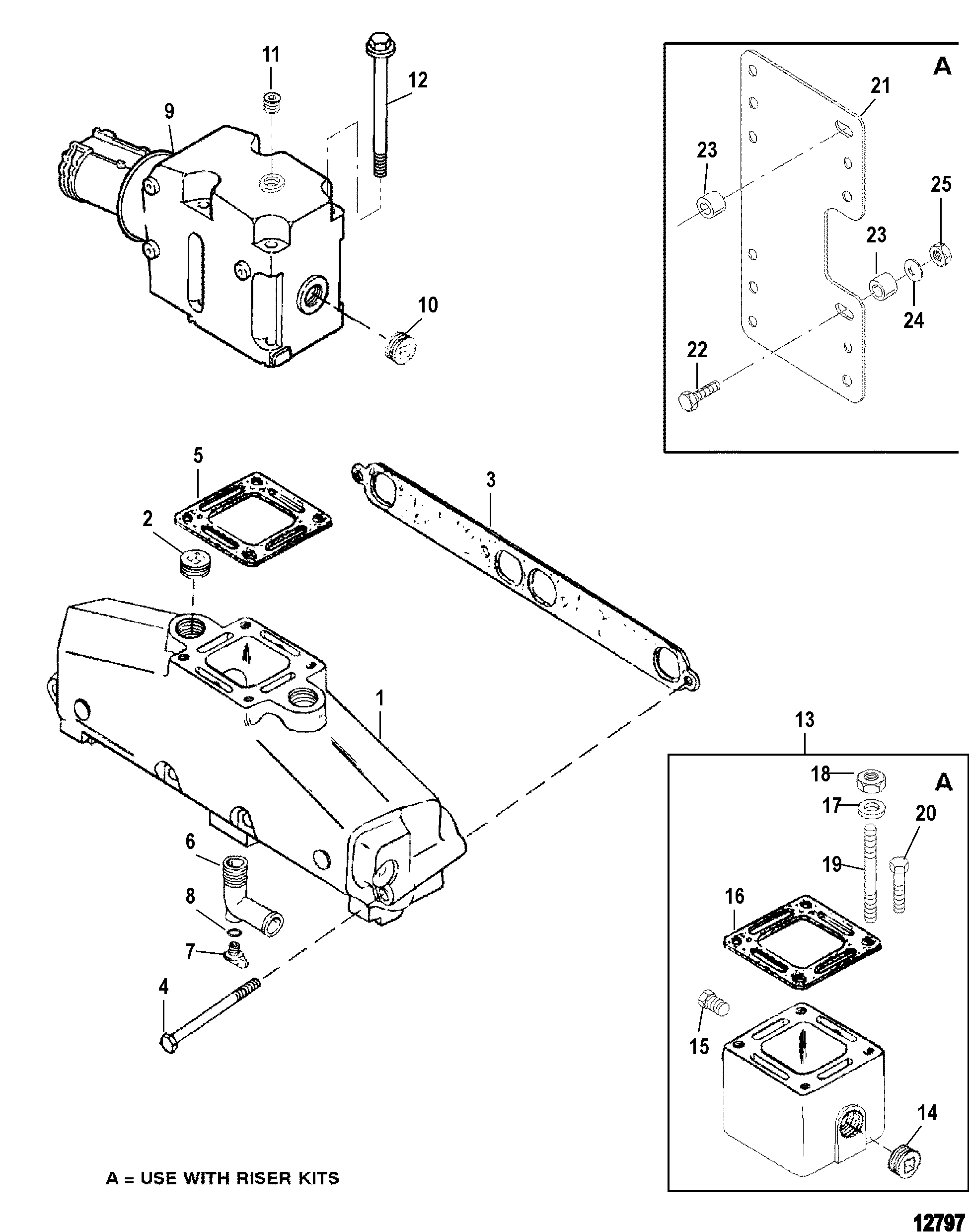

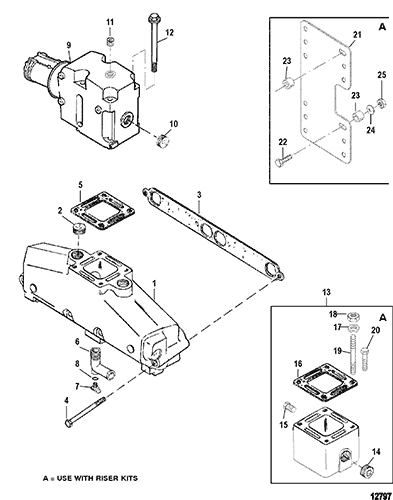

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator And Brackets (Delco)
- Alternator And Starter Motor (Mando)
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Fuel Rails
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Sendors And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Throttle Body And Flame Arrestor
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 860246A15 | MANIFOLD ASSEMBLY, Exhaust | 2 | 860246A10 | |||||
| 2 | 22-428611 | 602-98-102-57 | PLUG, (.750-14) Pipe | 8 | 22-861187 | ||||
| 3 | 27-33395 | 676-9-61401 | 700-31100 | GASKET | 2 | 3 | |||
| 4 | 10-53728 | 700-21745 | SCREW, (.375-16 x 4.75) | 8 | |||||
| 5 | 27-863724 | 676-9-61413 | GASKET | 2 | Standard Cooling | ||||
| 6 | 22-862210A01 | 676-9-41206 | 700-13991 | ELBOW KIT, Drain | 2 | 22-806926A1 | |||
| 7 | 22-806608A02 | 700-13992 | PLUG KIT, (.500-13) Royal Blue | 2 | 22-806608A1 | ||||
| 8 | 25-32509 | QUAD RING | 2 | 25-806609 | 3 | ||||
| 9 | 807988A03 | ELBOW ASSEMBLY, Exhaust | 2 | 807988A2 | |||||
| 10 | 22-41622 | 676-9-41205 | 700-21892 | PLUG, (.750-14) Pipe | 2 | ||||
| 11 | 22-73379 | 700-22379 | PLUG, (.250-18) | 2 | |||||
| 12 | 10-43749 | 700-22381 | SCREW, (.375-16 x 5.750) | 8 | |||||
| 12 | 10-43749 | 700-22381 | SCREW, (.375-16 x 5.750) | 4 | Swiss Emissions (BSO1 and SAV1) | ||||
| 12 | 10-843504 | SCREW, (.380-16 x 1.500) Stainless Steel | 4 | ||||||
| 13 | 93320A13 | RISER KIT, Exhaust (3 Inches) | 1 | 93320A5 | EACH KIT CONTAINS 2 RISERS | ||||
| 13 | 93322A12 | 700-50610 | RISER KIT, Exhaust (6 Inches) | 1 | 93322A7 | EACH KIT CONTAINS 2 RISERS | |||
| 14 | 22-428611 | 602-98-102-57 | PLUG, (.750-14) Pipe | 2 | 22-861187 | ||||
| 15 | 22-328022 | PLUG, Pipe (.125-27) | 2 | 22-328021 | |||||
| 16 | 27-863726 | 676-9-61414 | GASKET | 2 | |||||
| 17 | 12-46132 | WASHER | 4/8 | USE WITH 3 IN. RISER | |||||
| 18 | 11-46335 | NUT, (.375-24) | 4/8 | USE WITH 3 IN. RISER | |||||
| 19 | 8M0022137 | 700-22474 | STUD, (.375 x 9.56) | 4/8 | 16-11375 | USE WITH 3 IN. RISER | |||
| 20 | 10-14315 | SCREW, (.375-16 x 4.25) | 4 | This Part is No Longer Available Swiss Emissions (BSO1 and SAV1) - USE WITH 6 IN. RISER | |||||
| 20 | 10-865982005 | SCREW, (.375-16 x 1.00) | 8 | 10-12244 | USE WITH 6 IN. RISER | ||||
| 21 | 818598T | BRACKET | 1 | USE WITH 6 IN. RISER | |||||
| 22 | 10-76596 | SCREW, (.250-20 x 1.250) | 3 | USE WITH 6 IN. RISER | |||||
| 23 | 23-806981 | SPACER | 6 | USE WITH 6 IN. RISER | |||||
| 24 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | USE WITH 6 IN. RISER | |||||
| 25 | 11-64015 | NUT, (.250-20) | 3 | USE WITH 6 IN. RISER | |||||
| - | 27-75611A98 | GASKET SET, Engine Overhaul | 1 |
