350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Senders And Sensors

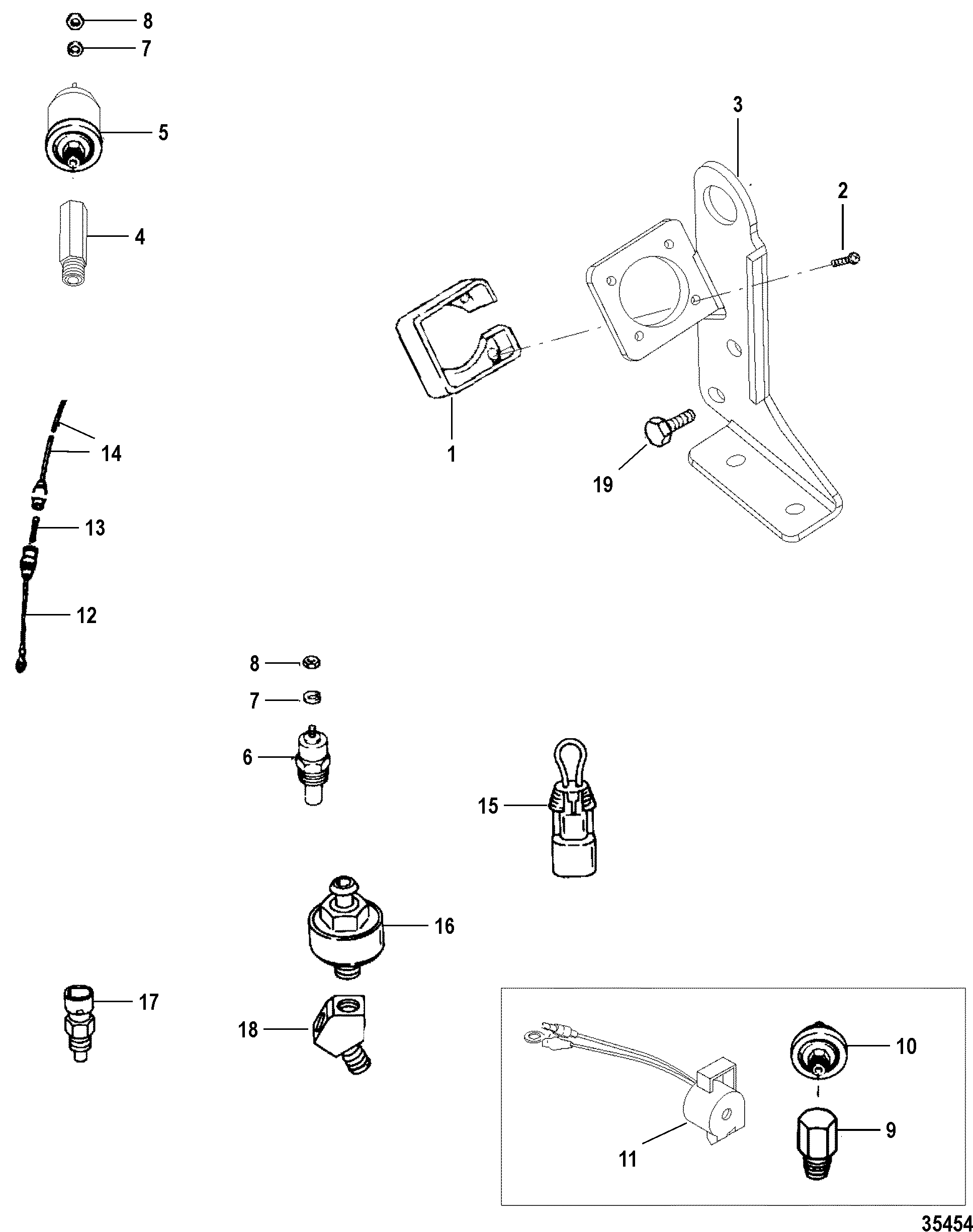

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 26079A2



PLATE KIT, Wire Harness Mount 1

2 10-15001



SCREW, (#8-16 x .875) 4

3 806816T



BRACKET/LIFTING EYE, Harness Mounting 1
(REAR)
4 22-805059



FITTING 1

5 8M0068784



SENDER ASSEMBLY, Oil Pressure 1 815425
5 37293T



SENDER ASSEMBLY, Oil Pressure (DUAL STATION) OPT 37293 4
6 806490T



SENDER ASSEMBLY, Water Temperature 1 97257A1
6 49734



SENDER ASSEMBLY, Water Temperature (DUAL STATION) OPT 49734A1 4
7 13-26996



LOCKWASHER, (#10) Stainless Steel 2

8 11-68219



NUT, (#10-32) Stainless Steel 2

9 22-8053281



FITTING, Elbow (90 Degree - .125) 1
AUDIO WARNING SYSTEM
10 87-805605A1



SWITCH ASSEMBLY 1
AUDIO WARNING SYSTEM
11 816492A6



ALARM KIT 1
AUDIO WARNING SYSTEM
12 84-95084A9



CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip 1
13 88-79091



FUSE, 20 Ampere 1
14 84-95084A10



CABLE ASSEMBLY, (5.00 Inches) Red 1
15 805592A1



CONNECTOR ASSEMBLY 1
16 806612T



SENSOR, Knock 1
17 805218T
676-9-42402

SENSOR 1
18 22-8067051



FITTING, Dual 1
19 10-98261



SCREW, (.375-16 x .750) 2
