350 Mag MPI Alpha-Bravo - Serial 0L010019 Thru 0L339999 - Intake Plenum And Flame Arrestor

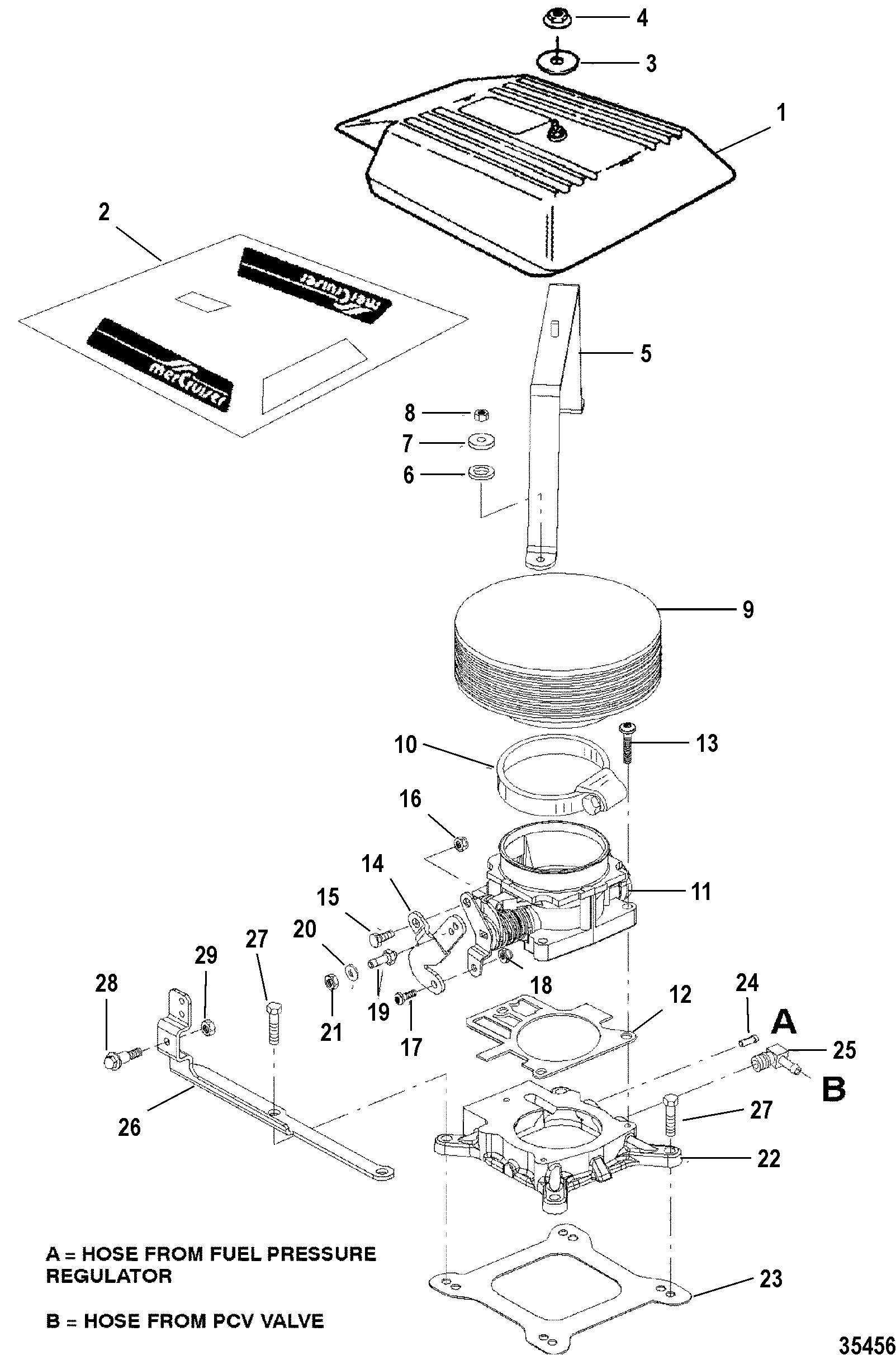

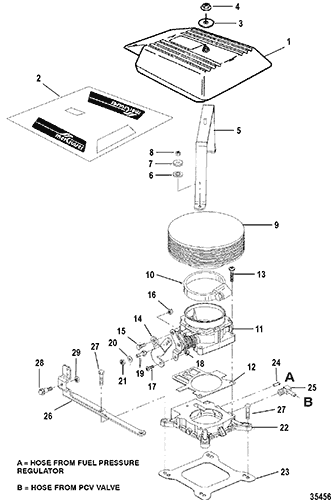

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 18484A3         COVER 1

2 37-861314A14         DECAL SET 1 37-861314A1 This Part is No Longer Available
3 12-86400         WASHER 1

4 11-826709109         NUT, (.250-28) 1 11-35045
5 861408         BRACKET, Flame Arrestor 1   This Part is No Longer Available
6 12-30119         WASHER, (.875 Inch Outside Diameter) 2

7 12-26907         WASHER (5/8 IN. O.D.) 2

8 11-64015         NUT, (.250-20) 2

9 861259         FLAME ARRESTOR 1

10 54-815504256         CLAMP, Worm Gear 1

11 861536A1         THROTTLE BODY ASSEMBLY 1 807671A1
12 27-807672         GASKET, TBU Relocator Tube 1
2
NS 853678T         SENSOR, Throttle Position 1 853678
NS 803149         VALVE, Intake Air Control 1 853677
NS 10-853680         SCREW KIT 1   This Part is No Longer Available
13 10-807054         SCREW, (.250-20 x 1.00) 3

14 861387         BRACKET, Throttle Linkage 1 861387T This Part is No Longer Available
15 10-54630         SCREW, (.312-24 x .625) 1
No longer made, limited availability
16 11-82670911         NUT, (.312-24) Stainless Steel 1 11-35814
17 10-64074         SCREW, (.250-28 x .620) 1

18 11-8267089         NUT, (.250-28) 1 11-20361
19 16-805526         STUD, (.250-28 x 1.540) 1

20 12-20533         WASHER 1

21 11-826709109         NUT, (.250-28) 1 11-35045
22 861040A1         PLATE, TBI Adaptor 1   This Part is No Longer Available
23 27-41610   676-9-61001     GASKET 1
2
24 22-805598         FITTING, (.1875) Barb 1

25 22-687271         FITTING, (.250-18) 90 Degree - Brass 1 22-68727
26 861388         BRACKET, Throttle Cable 1 861388T
27 10-74824         SCREW, (.312-18 x 1.250) 4
28 10-96430         SHOULDER SCREW 1
29 11-814101         NUT, (.250-20) Stainless Steel 1
- 27-75611A98         GASKET SET, Engine Overhaul 1
