4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0D714370 THRU 0F001219 - SHIFT BRACKET

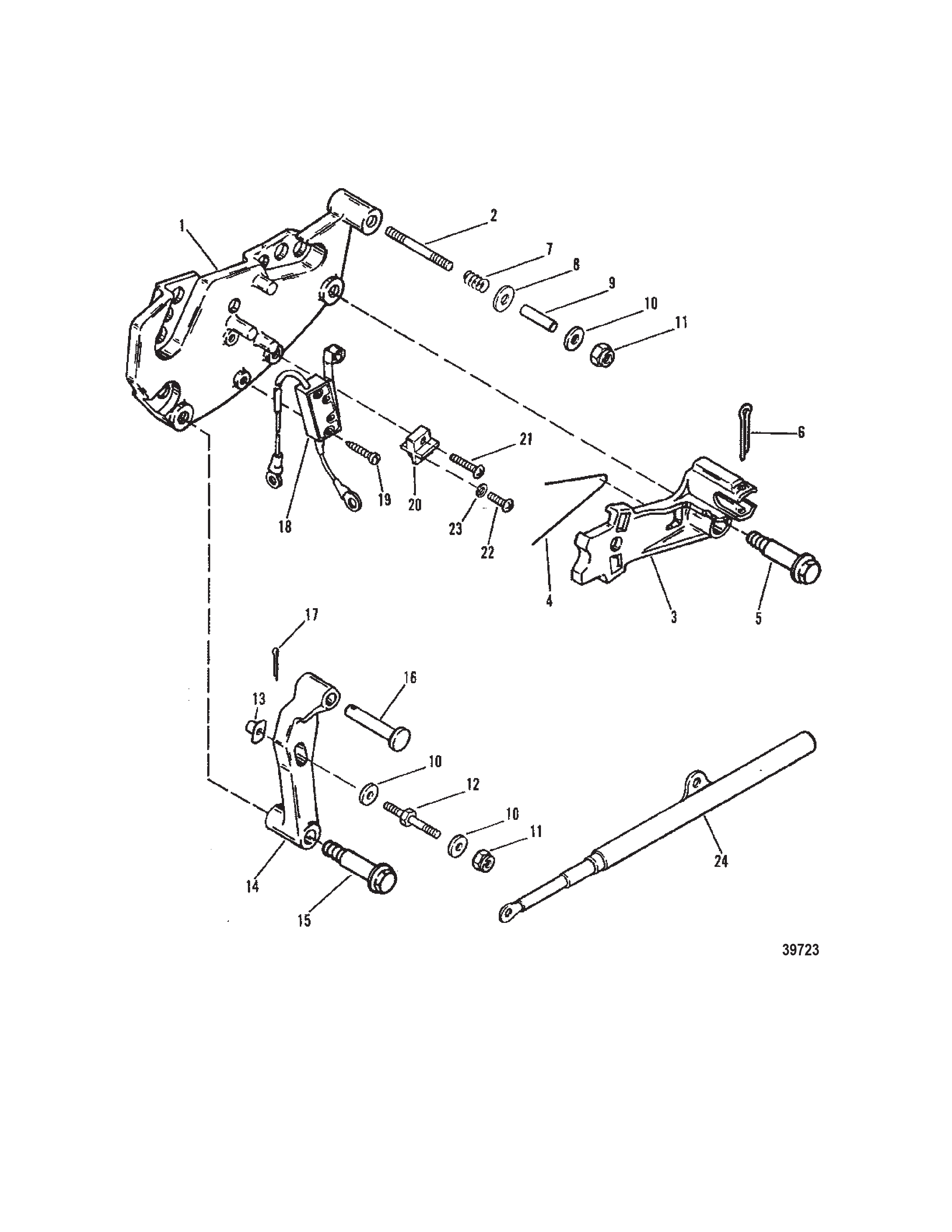

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 99237A10 BRACKET ASSEMBLY   1
2 0016 814002 STUD   2
3 0000 13051A4 LEVER ASSEMBLY Actuating   1
4 0024 45599 SPRING   1
5 0010 13743 SCREW (.312-18 x 1.843) Shoulder   1
6 0018 32857 COTTER PIN   1
7 0024 OEM: 525-24-98880 SPRING   1
8 0012 OEM: 525-12-56720 WASHER (.330 x .750 x .060) Stainless Steel   1
9 0023 814003 SPACER   1
10 0012 OEM: 525-12-35462 WASHER (.2656 x .625 x .0625) Stainless Steel   3
11 0011 13438 NUT (.250-28)   2
12 0016 96112 STUD (.250-28 x 2.00) Throttle Cable Anchor   1
13 0011 OEM: 525-11-63341 TEE NUT   1
14 0000 13898A3 LEVER ASSEMBLY Shift   1
15 0010 13743 SCREW (.312-18 x 1.843) Shoulder   1
16 0017 OEM: 525-17-814001 PIN Clevis   1
17 0018 21071 COTTER PIN   1
18 0000 39670A28 SWITCH ASSEMBLY   1
19 0010 30902 SCREW (#6-32 x .750)   2
20 0086 66986 TERMINAL BLOCK   1
21 0010 OEM: 525-10-96113 SCREW (#10-32 x .880) Stainless Steel   1
22 0010 OEM: 525-10-73287 SCREW (#10-32 x .380)   1
23 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
24 0000 OEM: 525-813995A1 GUIDE ASSEMBLY Spring   1
