4.3LX (GEN II) (4 BBL.) GM 262 V-6 - 0D714370 THRU 0F001219 - EXHAUST MANIFOLD AND EXHAUST ELBOW

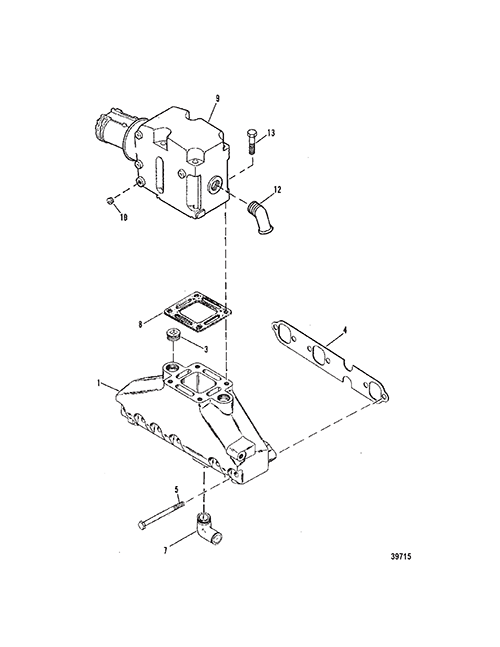

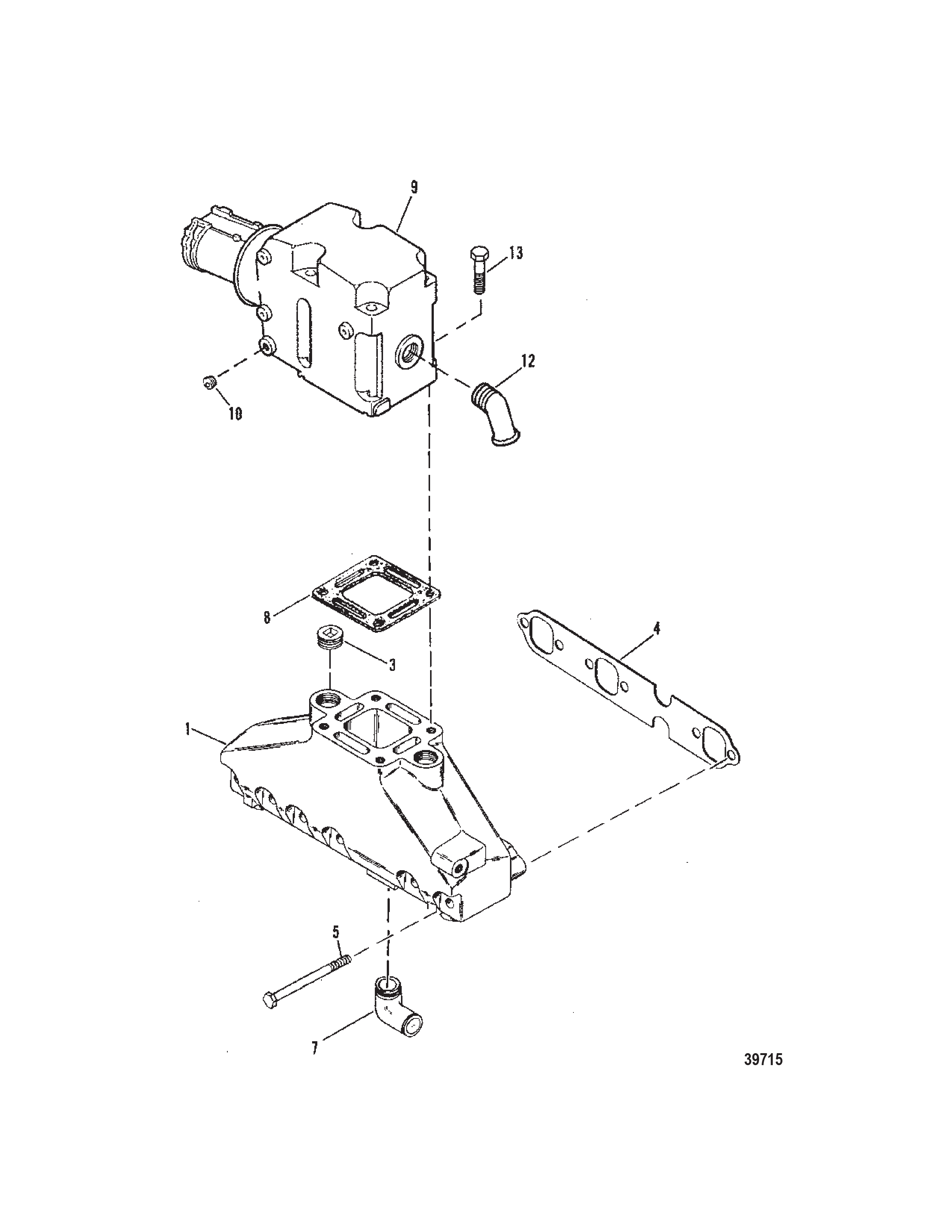

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 99746A8 MANIFOLD ASSEMBLY Exhaust   2
3 0022 33198A1 PLUG (3/4-14)   AR
4 0027 OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 GASKET   2 [1]
5 0010 OEM: 525-10-53728, GLM: 700-21745 SCREW (.375-16 x 4.75)   12
7 0022 36305 ELBOW (90 Degrees) (90 DEGREES)   1
7 0022 45084 FITTING Straight (STRAIGHT)   1
8 0027 41813 GASKET   2 [1]
9 0000 44354A3 ELBOW ASSEMBLY Exhaust (See Riser Kits below for exhaust elbow extension kits) 2
10 0022 OEM: 525-22-36382, GLM: 700-21887 FITTING (.250-18 x .62) Brass   4
12 0022 92499 FITTING (45 Degrees) (45 DEGREES)   2
13 0010 43749 SCREW (.375-16 x 5.750)   8
- 0000 93320A3 RISER KIT Exhaust Elbow (3 In.) (Contains 2 Risers) 2
- 0000 93322A4 RISER KIT Exhaust Elbow (6 In.) (Contains 2 Risers) 1

PART NOTES:

[1] - 11977A92 GASKET SET, ENGINE OVERHAUL
