4.3LX (GEN +) (2 BBL.) GM 262 V-6 - 0F803000 THRU 0K999999 - CARBURETOR AND THROTTLE LINKAGE (4 BARREL)

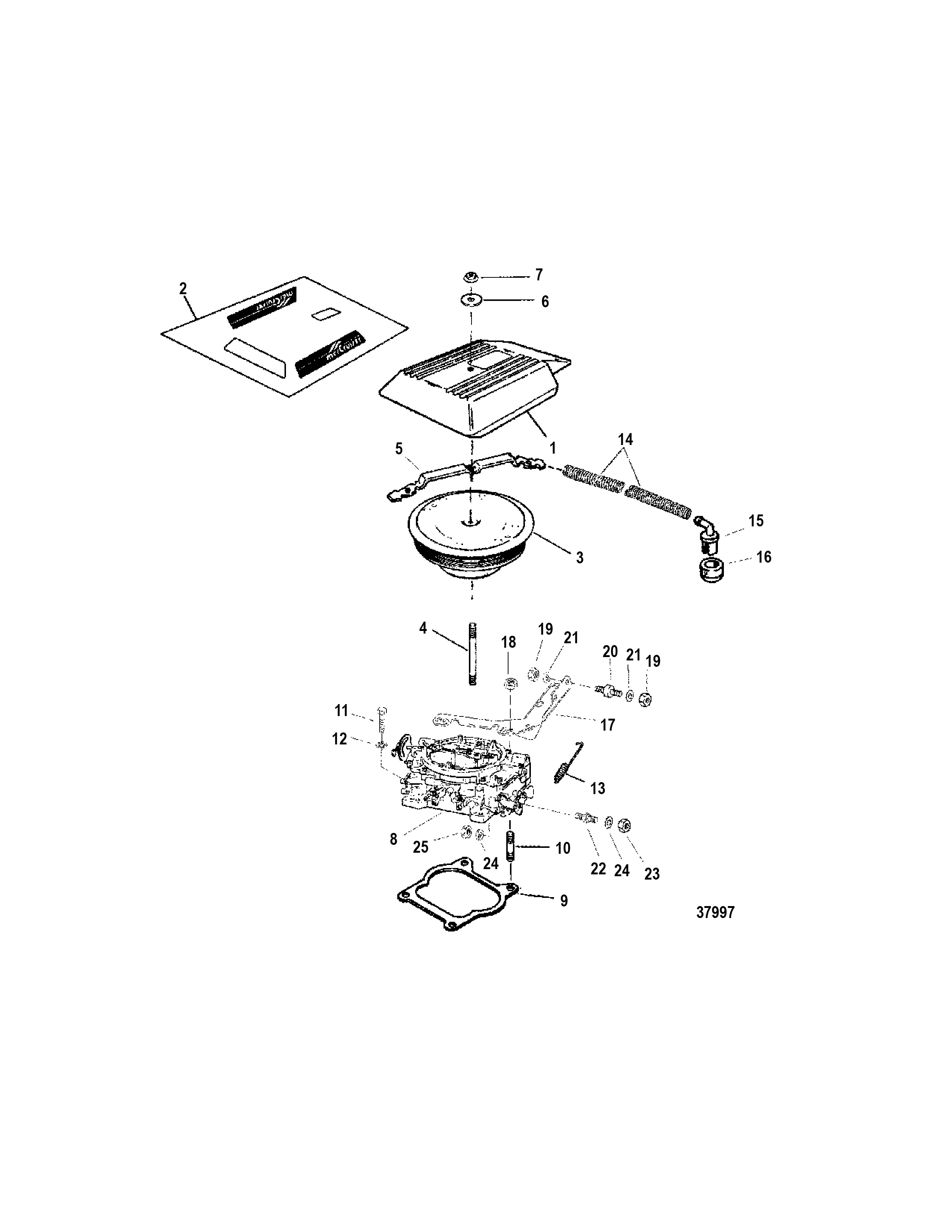

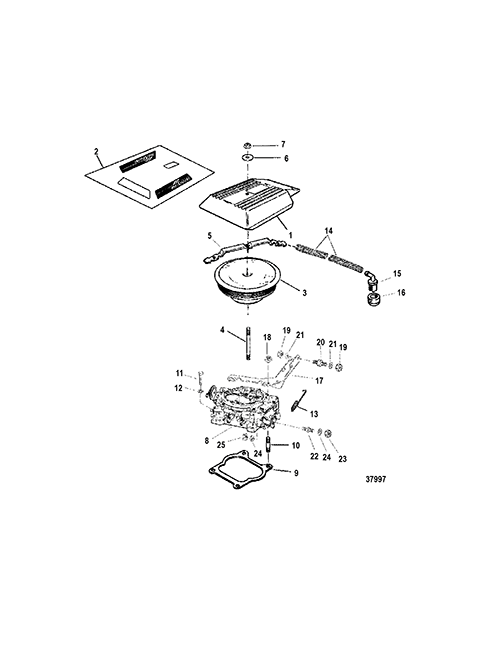

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-18484A3 COVER   1
2 0037 812776A39 DECAL SET Cover   1
3 0000 OEM: 525-805298A1 FLAME ARRESTOR   1
4 0016 OEM: 525-16-805296 STUD (4.50 Inch)   1
5 0000 OEM: 525-805314 RETAINER Breather Hose   1
6 0012 OEM: 525-12-86400 WASHER   1
7 0011 35045 NUT (.250-28)   1
8 3310 807826A1 CARBURETOR ASSEMBLY (SEE CARBURETOR (WEBER) FOR BREAKDOWN) 1 [1]
8 3310 860076A1 CARBURETOR ASSEMBLY SWISS EMISSIONS (BSO1 and SAV1) (SEE CARBURETOR (WEBER) FOR BREAKDOWN) 1
9 0027 OEM: 525-27-524572, Sierra: 676-18-2848 GASKET   1 [2]
10 0016 OEM: 525-16-70236, GLM: 700-22482 STUD (.312 x 1.500)   2
11 0010 OEM: 525-10-35386 SCREW (.312-18 x 1.00)   2
12 0013 OEM: 525-13-39107, GLM: 700-21496 LOCKWASHER (.312-24)   2
13 0024 32817 SPRING   1
14 0032 1589418 HOSE Breather   2
15 0000 97850 ELBOW 90 Degree Breather   2
16 0025 OEM: 525-25-827152 GROMMET   2
17 0000 OEM: 525-805359T BRACKET   1
18 0011 OEM: 525-11-29250 NUT (.312-24)   2
19 0011 35045 NUT (.250-28)   2
20 0016 OEM: 525-16-818192 STUD   1
21 0012 OEM: 525-12-24664 WASHER (M4 x 20)   2
22 0016 96112 STUD (.250-28 x 2.00) Throttle Cable Anchor   1
23 0011 20361 NUT (.250-28)   1
24 0012 OEM: 525-12-29245, Sierra: 676-18-4275, GLM: 700-21490 WASHER (.281 x .500 x .060) Stainless Steel   2
25 0011 35045 NUT (.250-28)   1
- 0027 824326A96 GASKET SET Overhaul ENGINE   1

PART NOTES:

[1] - Alternate part numbers:

807826A 1QS

807826R02Reman


[2] - PART INCLUDED IN ENGINE OVERHAUL GASKET SET
