4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Standard Cooling System

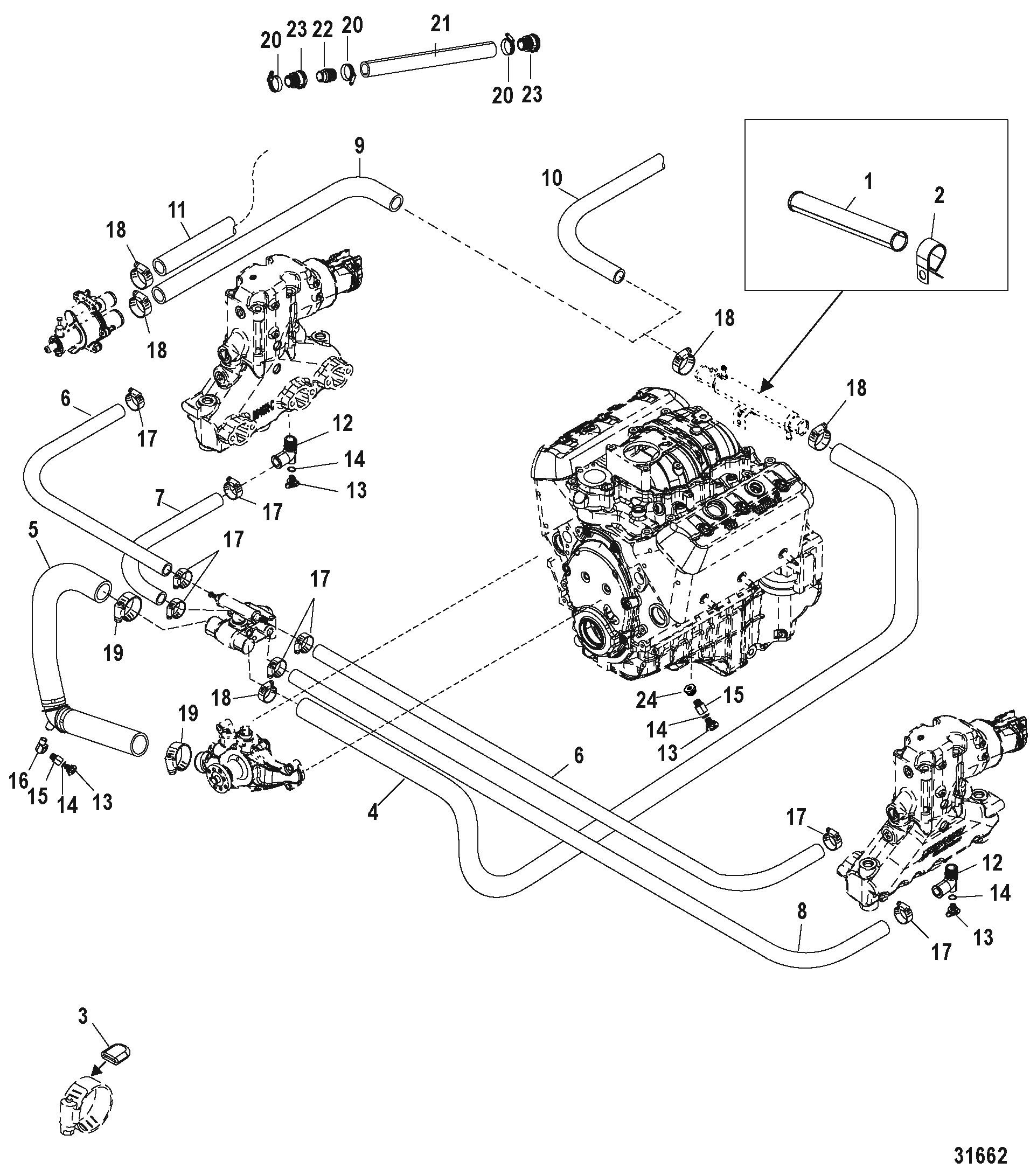

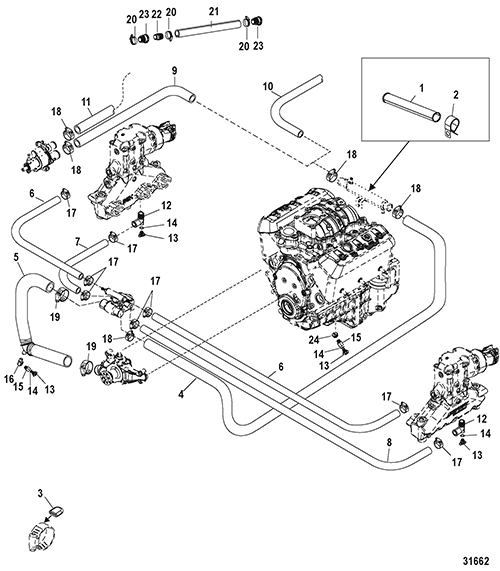

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor
- Carburetor and Throttle Linkage
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gasket Set Components Engine Overhaul
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Alpha-Bravo Closed Cooling)
- Sea Water Pump Assembly (Bravo Standard) 1A299999 and Below
- Sea Water Pump Assembly (Bravo Standard) 1A300000 and Up
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System
- Starter Motor
- Steering Components
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-860315A1 | TUBE Hose Extender | (Compact Hydralic Steering) (Cut to 10.50 Inch Length) | 1 | |
| 2 | 0054 | OEM: 525-54-806616 | CLAMP Water Tube | 1 | ||
| 3 | 0019 | 8079923 | COVER Hose Clamp End | AR | ||
| 4 | 0032 | OEM: 525-32-865092 | HOSE Power Steering Cooler to Thermostat Housing | 1 | ||
| 5 | 0032 | OEM: 525-32-861590A05, Sierra: 676-18-71337 | HOSE ASSEMBLY Circulating Pump to Thermostat Housing | 1 | ||
| 6 | 0032 | OEM: 525-32-864977 | HOSE Thermostat Housing to Elbow | 2 | ||
| 7 | 0032 | OEM: 525-32-862124, Sierra: 676-18-70947 | HOSE Thermostat Housing to Starboard Manifold | 1 | ||
| 8 | 0032 | OEM: 525-32-862139, Sierra: 676-18-70945 | HOSE Thermostat Housing to Port Exhaust Manifold | 1 | ||
| 9 | 0032 | OEM: 525-32-860205, Sierra: 676-18-70951 | HOSE Sea Pump to Power Steering Cooler | (Bravo) [1A299999] & Below | 1 | |
| 9 | 0032 | OEM: 525-32-8636111 | HOSE Sea Pump to Power Steering Cooler | (Bravo) [1A300000] & Up | 1 | |
| 10 | 0032 | OEM: 525-32-807661 | HOSE Transom to Power Steering Cooler | (Alpha) | 1 | |
| 11 | 0032 | 865672079 | HOSE (96.00 Inches Bulk) Sea Water Pump to Drive | (Bravo) | 1 | |
| 12 | 0022 | OEM: 530-862210A01, Sierra: 676-18-4224, GLM: 700-13990 | ELBOW KIT Drain | 2 | ||
| 13 | 0022 | OEM: 525-22-806608A02, Sierra: 676-18-4226 | PLUG ASSEMBLY (.500-13) Blue Drain Fitting | 9 | [1] | |
| 14 | 0025 | 8M2000926 | SEAL | 9 | ||
| 15 | 0022 | OEM: 525-22-860088 | BUSHING | 3 | ||
| 16 | 0022 | OEM: 525-22-46982 | FITTING (90 Degree) | 1 | ||
| 17 | 0054 | OEM: 525-54-815504216 | CLAMP Worm Gear (1.56 Diameter) Hose | 4 | ||
| 18 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) Hose | 11 | ||
| 19 | 0054 | OEM: 525-54-815504232 | CLAMP Worm Gear (2.50 Diameter) Hose | 2 | ||
| 20 | 0054 | OEM: 525-54-815504220 | CLAMP Worm Gear | 3 | ||
| 21 | 0032 | OEM: 525-32-865672013 | HOSE (4.00 Inches) | 1 | ||
| 22 | 0022 | OEM: 525-22-865362 | QUICK CONNECT | 1 | ||
| 23 | 0022 | OEM: 525-22-865324 | QUICK CONNECT | 2 | ||
| 24 | 0022 | OEM: 525-22-8M2005622 | FITTING Reducer (M28 x .250) | 1 |
PART NOTES:
[1] - Alternate part numbers:
806608A02Service Part
806608Q01QS
