4.3L CARB ALPHA-BRAVO - 1A063240 and Up - Sea Water Pump Assembly (Bravo Standard) 1A300000 and Up

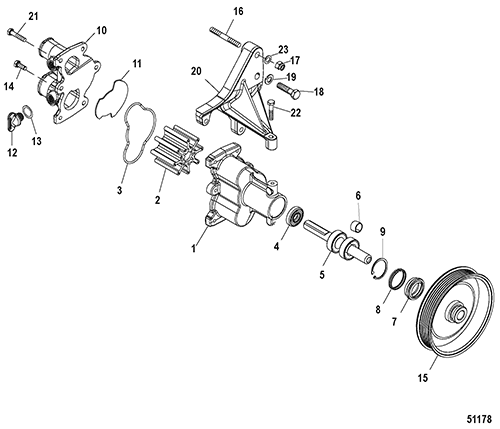

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
- 0046 862914T10 PUMP KIT Sea Water   1
1 0046 OEM: 525-46-862914A13, Sierra: 676-18-3160-1 HOUSING ASSEMBLY Impeller   1
2 0047 862232A2 IMPELLER   1
3 0000 OEM: 525-8M2021987 O-RING Formed (Also included with Reference 8)   1
- 0000 OEM: 525-8M0050018 DRIVESHAFT ASSEMBLY KIT   1
4 0026 862037 SEAL Oil   1
5 0000 862235A1 DRIVESHAFT ASSEMBLY   1
6   NSS NOT SOLD SEPARATE SPACER [1A623371] & Up 1
7 0026 OEM: 525-26-862040 SEAL Lip   1
8 0000 OEM: 525-862039 TOLERANCE RING [1A623370] & Below 1
9   NSS NOT SOLD SEPARATE SNAP RING [1A623371] & Up 1
10 0000 OEM: 525-862776A01 COVER KIT Impeller Housing   1
11 0000 OEM: 525-8M2014176 PLATE Wear   1
12 0022 806608A1 PLUG KIT (.500-13) Royal Blue   2 [1]
13 0025 32509 O-RING (.489 x .070)   2
14 0010 OEM: 525-10-4000328 SCREW (M6 x 16)   4
15 0000 862351T PULLEY   1
16 0016 OEM: 525-16-863853 STUD   2
17 0011 OEM: 525-11-82671112 NUT (.375-16)   2
18 0010 OEM: 525-10-32132 SCREW (.375-16 x 1.750)   1
19 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   1
20 0000 OEM: 525-865143T01 BRACKET Sea Water Pump   1
21 0010 OEM: 525-10-4000331 SCREW (M6 x 30)   2
22 0010 OEM: 525-10-4000331 SCREW (M6 x 30)   1
23 0012 OEM: 525-12-38622 WASHER (.391 x 1.00 x .125)   1

PART NOTES:

[1] - Alternate part numbers:

806608A 1Service Part

806608Q01QS
