4.3L CARB ALPHA-BRAVO - 0W310000 THRU 0W649999 - Exhaust Risers

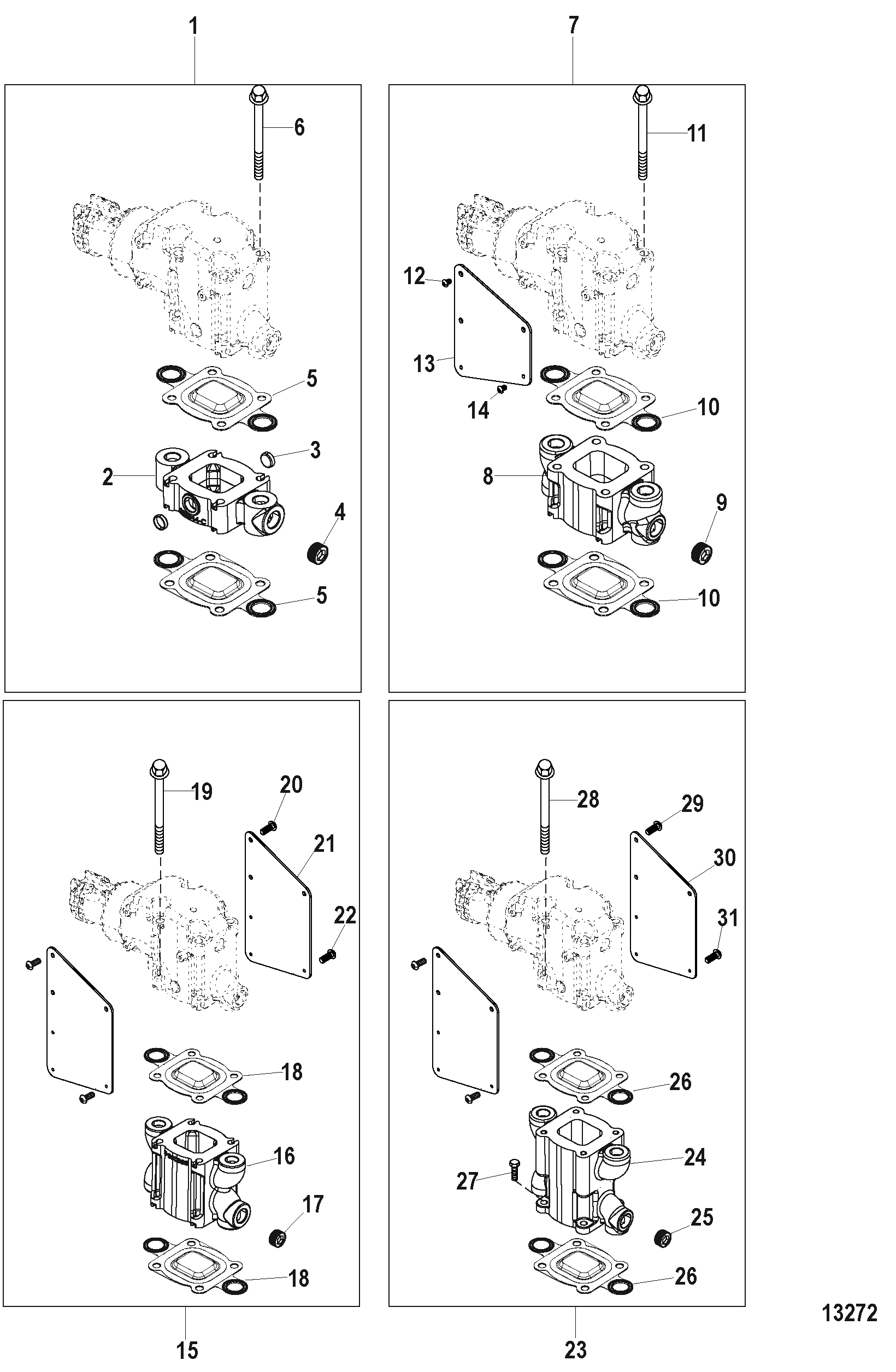

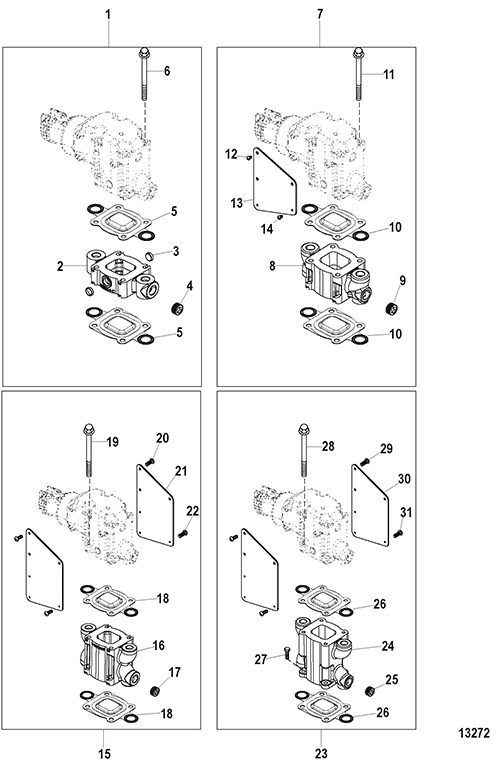

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-865995A01 RISER EXTENSION KIT 1.7 Inch (Standard Cooling) 1
1 0000 OEM: 525-865996A01 RISER EXTENSION KIT 1.7 Inch (Closed Cooling) 1
2   NSS NOT SOLD SEPARATE Riser (1.70 Inch)   2
3 0019 OEM: 525-19-864689 PLUG Expansion   2
4 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
5 0027 OEM: 530-864850A02, Sierra: 676-18-0722 GASKET Restrictor   2
5 0027 OEM: 530-864549A02, Sierra: 676-18-0720 GASKET Block Off   2
5 0027 OEM: 530-864547A02, Sierra: 676-18-0721 GASKET Full Flow   2
6 0010 OEM: 525-10-865982071 SCREW (.375-16 x 9.250)   8
7 0000 OEM: 525-864929A3 RISER EXTENSION KIT 3.0 Inch (Standard Cooling) 1
7 0000 OEM: 525-864929A4 RISER EXTENSION KIT 3.0 Inch (Closed Cooling) 1
8   NSS NOT SOLD SEPARATE Riser (3 Inch)   2
9 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
10 0027 OEM: 530-864850A02, Sierra: 676-18-0722 GASKET Restrictor   1
10 0027 OEM: 530-864549A02, Sierra: 676-18-0720 GASKET Block Off   1
10 0027 OEM: 530-864547A02, Sierra: 676-18-0721 GASKET Full Flow   1
11 0010 OEM: 525-10-865982077 SCREW (.375-16 x 10.500)   8
12 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   1
13 0000 OEM: 525-863714T01, GLM: 700-50017 BRACKET   1
14 0010 OEM: 525-10-864378 SCREW (.250-20 x .375) Torx   1
15 0000 OEM: 525-866208A02 RISER EXTENSION KIT 4.7 Inch (Standard Cooling) 1
15 0000 OEM: 525-866208A03 RISER EXTENSION KIT 4.7 Inch (Closed Cooling) 1
16   NSS NOT SOLD SEPARATE Riser (4.70 Inch)   2
17 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
18 0027 OEM: 530-864850A02, Sierra: 676-18-0722 GASKET Restrictor   2
18 0027 OEM: 530-864549A02, Sierra: 676-18-0720 GASKET Block Off   2
18 0027 OEM: 530-864547A02, Sierra: 676-18-0721 GASKET Full Flow   2
19 0010 OEM: 525-10-865982092 SCREW (.375-16 x 12.380)   8
20 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   6
21 0000 OEM: 525-863715T01, GLM: 700-50018 BRACKET   2
22 0010 OEM: 525-10-864378 SCREW (.250-20 x .375) Torx   1
23 0000 OEM: 525-864908A1 RISER EXTENSION KIT 6.0 Inch (Standard Cooling) 1
23 0000 OEM: 525-864908A2 RISER EXTENSION KIT 6.0 Inch (Closed Cooling) 1
24   NSS NOT SOLD SEPARATE Riser (6.00 Inch)   2
25 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
26 0027 OEM: 530-864850A02, Sierra: 676-18-0722 GASKET Restrictor   2
26 0027 OEM: 530-864549A02, Sierra: 676-18-0720 GASKET Block Off   2
26 0027 OEM: 530-864547A02, Sierra: 676-18-0721 GASKET Full Flow   2
27 0010 OEM: 525-10-865982005 SCREW (.375-16 x 1.00)   8
28 0010 OEM: 525-10-865982057 SCREW (.375-16 x 7.50) Not included in Kit. OPT
29 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   6
30 0000 OEM: 525-863715T01, GLM: 700-50018 BRACKET   2
31 0010 OEM: 525-10-864378 SCREW (.250-20 x .375) Torx   1
