4.3L CARB ALPHA-BRAVO - 0W310000 THRU 0W649999 - Distributor and Ignition Components

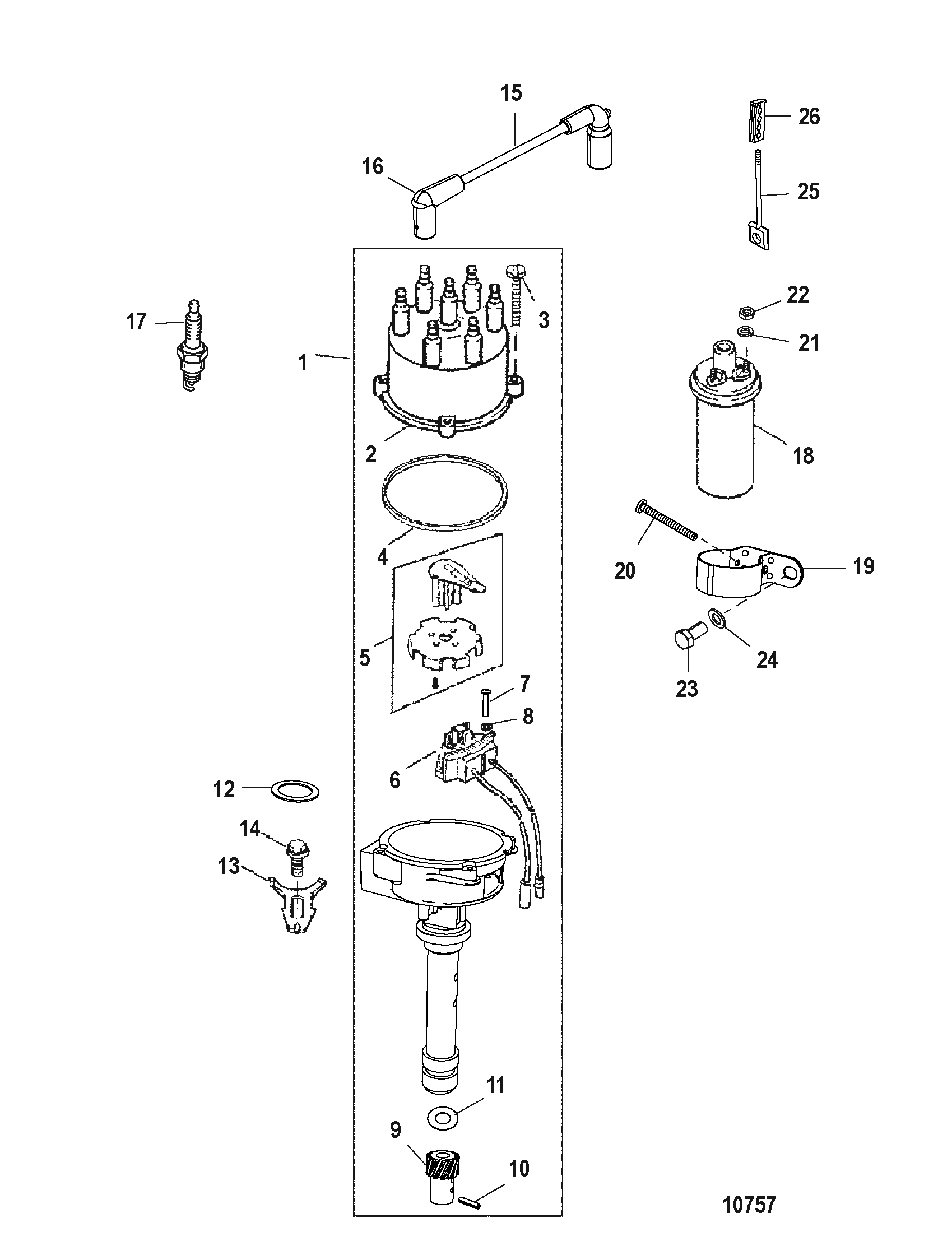

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 805185A37 DISTRIBUTOR ASSEMBLY   1
2 0000 OEM: 530-815407A2, Sierra: 676-18-5396, GLM: 700-71500 CAP Distributor   1 [1]
3 0010 OEM: 525-10-90926, GLM: 700-22305 SCREW (#10-32 x .810)   4
4 0027 OEM: 525-27-805760, GLM: 700-32060 GASKET   1
5 0000 OEM: 530-13524A6, Sierra: 676-18-5432, GLM: 700-72890 ROTOR/SENSOR WHEEL   1 [2]
6 0087 OEM: 530-892150Q02 SENSOR ASSEMBLY   1 [3]
7 0010 OEM: 525-10-72202, GLM: 700-22312 SCREW (#10-32 x 1.25)   1
7 0010 OEM: 525-10-66686, GLM: 700-22311 SCREW (#10-32 x 1.00)   1
8 0013 OEM: 525-13-F8058 LOCKWASHER Internal (#10)   1
9 0043 OEM: 525-43-818807, GLM: 700-19360 GEAR   1
10 0017 OEM: 525-17-47617, GLM: 700-22195 PIN   1
11 0012 OEM: 525-12-90931, GLM: 700-21661 THRUST WASHER   1
12 0027 OEM: 525-27-344863, Sierra: 676-18-0874 GASKET   1 [4]
13 0000 OEM: 525-52185 CLAMP   1
14 0010 OEM: 525-10-881570 SCREW (M8 x 25 MM)   1
15 0084 OEM: 525-84-863656A04 CABLE KIT Ignition -Plug & Coil Wires (Blue) 1
16   NSS NOT SOLD SEPARATE Coil Wire Assembly   1
17 0033 OEM: 525-33-862029 SPARK PLUG   6
18 0392 805570A2 COIL KIT Ignition   1
19 0000 OEM: 525-65970T1 BRACKET Coil   1
20 0010 41408 SCREW (#10-32 x 1.50)   1
21 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
22 0011 OEM: 525-11-68219 NUT (#10-32) Stainless Steel   2
23 0010 OEM: 525-10-98261 SCREW (.375-16 x .750)   1
24 0012 OEM: 525-12-20553, GLM: 700-21675 WASHER (.406 x .734 x .063)   1
25 0016 OEM: 525-16-90096A1 STUD ASSEMBLY (#10-32 x Special) Spark Plug Wire Retainer   2
26 0054 OEM: 525-54-72821 RETAINER Spark Plug Wire   2
- 0027 OEM: 525-27-824326A03 GASKET SET Engine Overhaul   1
- 0000 879150A31 LONG BLOCK (4.3L)   1 [5]

PART NOTES:

[1] - Alternate part numbers:

815407A 2Service Part

815407Q02QS

815407Q 5QS Kit

815407T 5MPP Kit


[2] - Alternate part numbers:

13524A 6Service Part

13524Q06QS

815407Q 5QS Kit

815407T 5MPP Kit


[3] - Alternate part numbers:

861780A 2Service Part

892150K02MPP

892150Q02QS


[4] - Component of Engine Overhaul Gasket Set 824326A03

Component of Long Block Assembly -Long Block Part Numbers Listed on Service/Support Material Page


[5] - Alternate part numbers:

879150A31QS

879150R31Reman

8M0150280Reman
