4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0F000878 THRU 0F601126 - CRANKSHAFT AND PISTONS

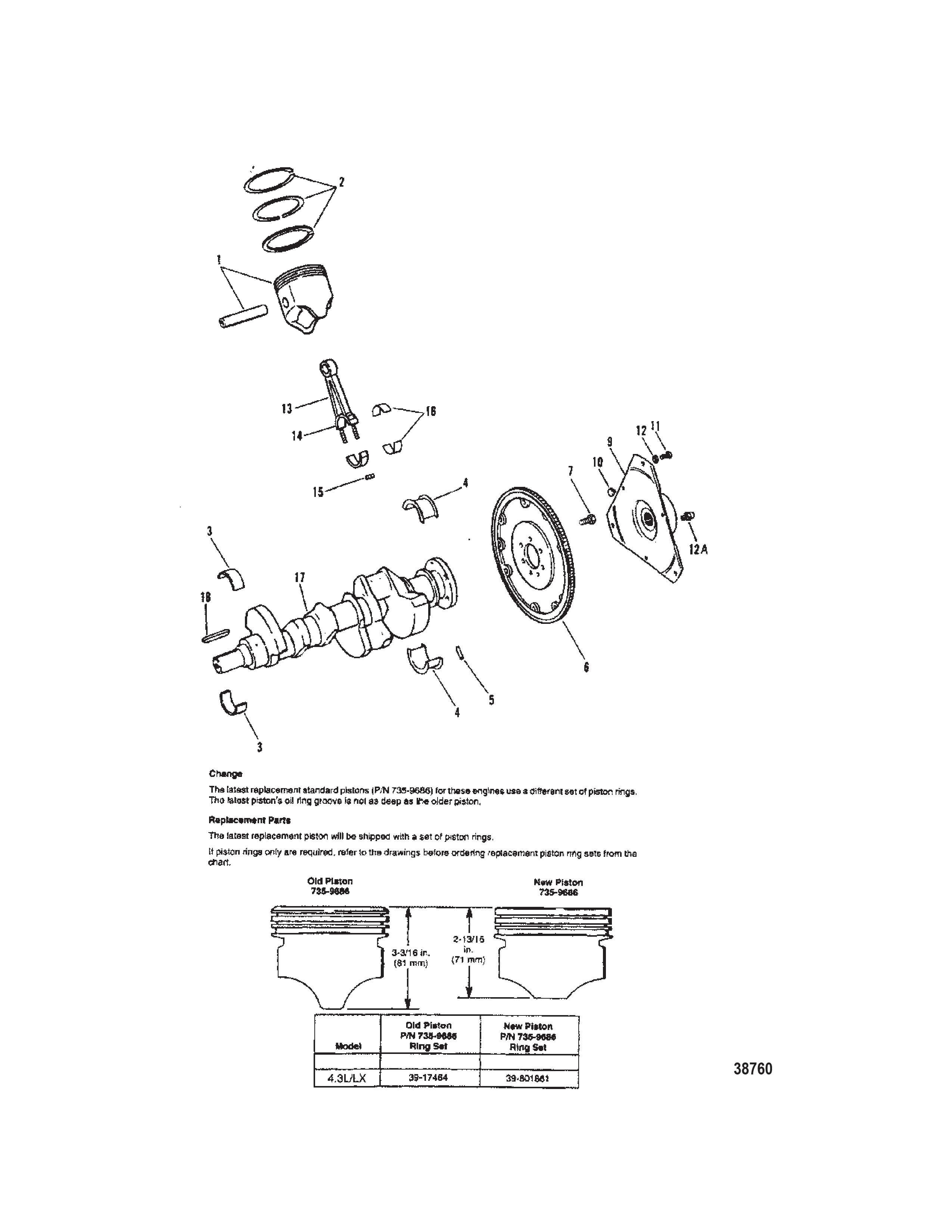

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0735 808674 PISTON ASSEMBLY (STANDARD)   6
2 0039 OEM: 525-39-17464, Sierra: 676-18-3937 RING SET Piston (Standard)   6
3/4 0023 OEM: 525-23-818465, Sierra: 676-18-1300 BEARING SET 5 Pair (STANDARD)   1
3/4 0023 OEM: 525-23-818466 BEARING SET 5 Pair (.001 USA)   AR
3/4 0023 OEM: 525-23-818467 BEARING SET 5 Pair (.010 USA)   AR
3/4 0023 OEM: 525-23-818468 BEARING SET 5 Pair (.020 USA)   AR
5 0017 35312 PIN Dowel (1/4 In. Diameter)   2
6 0222 824320 FLYWHEEL   1
7 0010 49845 SCREW (.437-20 x 1.00)   6
9 0000 OEM: 530-18643A5, Sierra: 676-18-2323, GLM: 700-11532 COUPLING ASSEMBLY   1
10 0000 OEM: 525-18644 BUMPER Rubber   3
11 0010 OEM: 525-10-14883 SCREW (.375-16 x 1.12)   3
12 0012 OEM: 525-12-13510 WASHER   3
12A 0022 OEM: 525-22-74036 FITTING Grease   1
13 0614 811839 CONNECTING ROD   6
14 0010 OEM: 525-10-11969 BOLT   12
15 0011 37493 NUT (.375-24)   12
16 0023 11992 BEARING (STANDARD - PAIR)   6
16 0023 OEM: 525-23-11993 BEARING (.001 USA - PAIR)   AR
16 0023 811858 BEARING (.010 USA - PAIR)   AR
16 0023 OEM: 525-23-811859 BEARING (.020 USA - PAIR)   AR
17 0429 9517A1 CRANKSHAFT   1
18 0028 818485 KEY   1
