4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0F000878 THRU 0F601126 - AUDIO WARNING SYSTEM

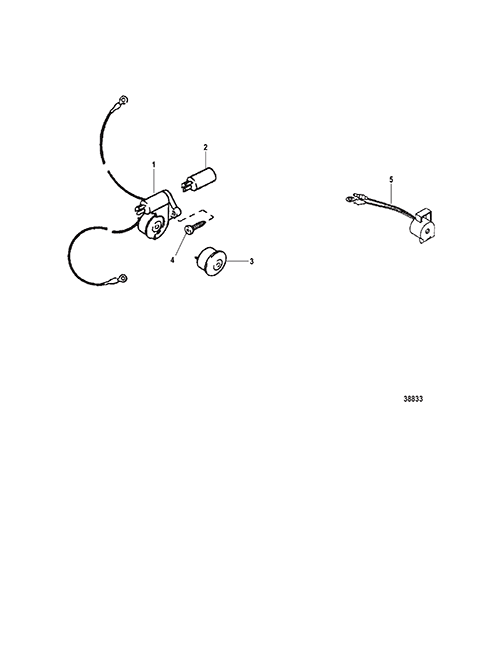

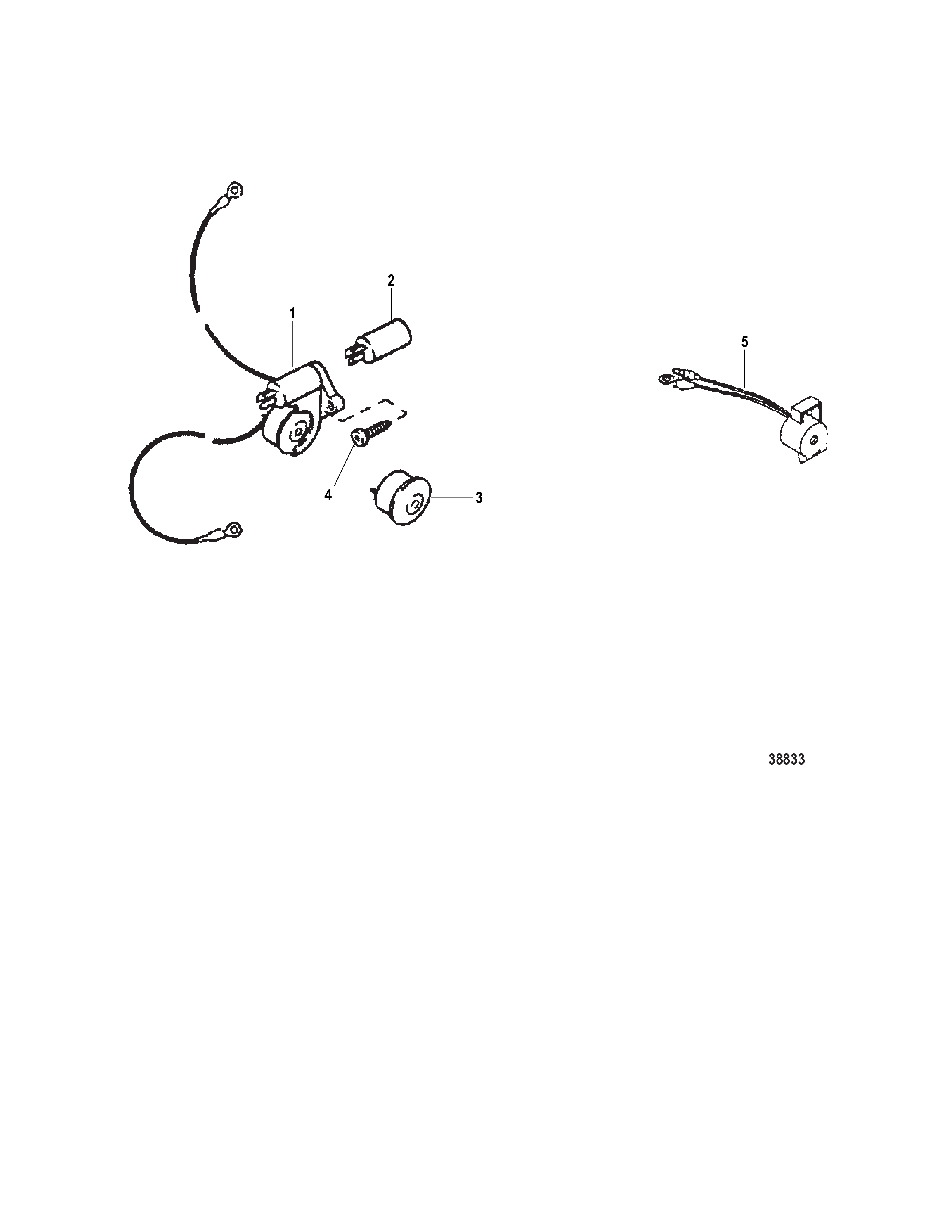

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- AUDIO WARNING SYSTEM
- BODENSEE PARTS
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM (DESIGN I)
- STANDARD COOLING SYSTEM (DESIGN II)
- STARTER MOTOR 3-1-4 DIAMETER END CAP
- STARTER MOTOR 8 IN. (PG 260) 2-7-8 IN. DIAMETER END CAP
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 86047A16 | HOUSING KIT | 1 | ||
| 2 | 0000 | 86045 | TIMER | 1 | ||
| 3 | 0000 | 68878A6 | HORN ASSEMBLY Buzzer Alarm | 1 | ||
| 4 | 0010 | OEM: 525-10-69013 | SCREW (#10-16 x .880) | 2 | ||
| 5 | 0000 | OEM: 525-816492A6 | ALARM KIT | 1 |
