4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - WIRING HARNESS AND ELECTRICAL COMPONENTS

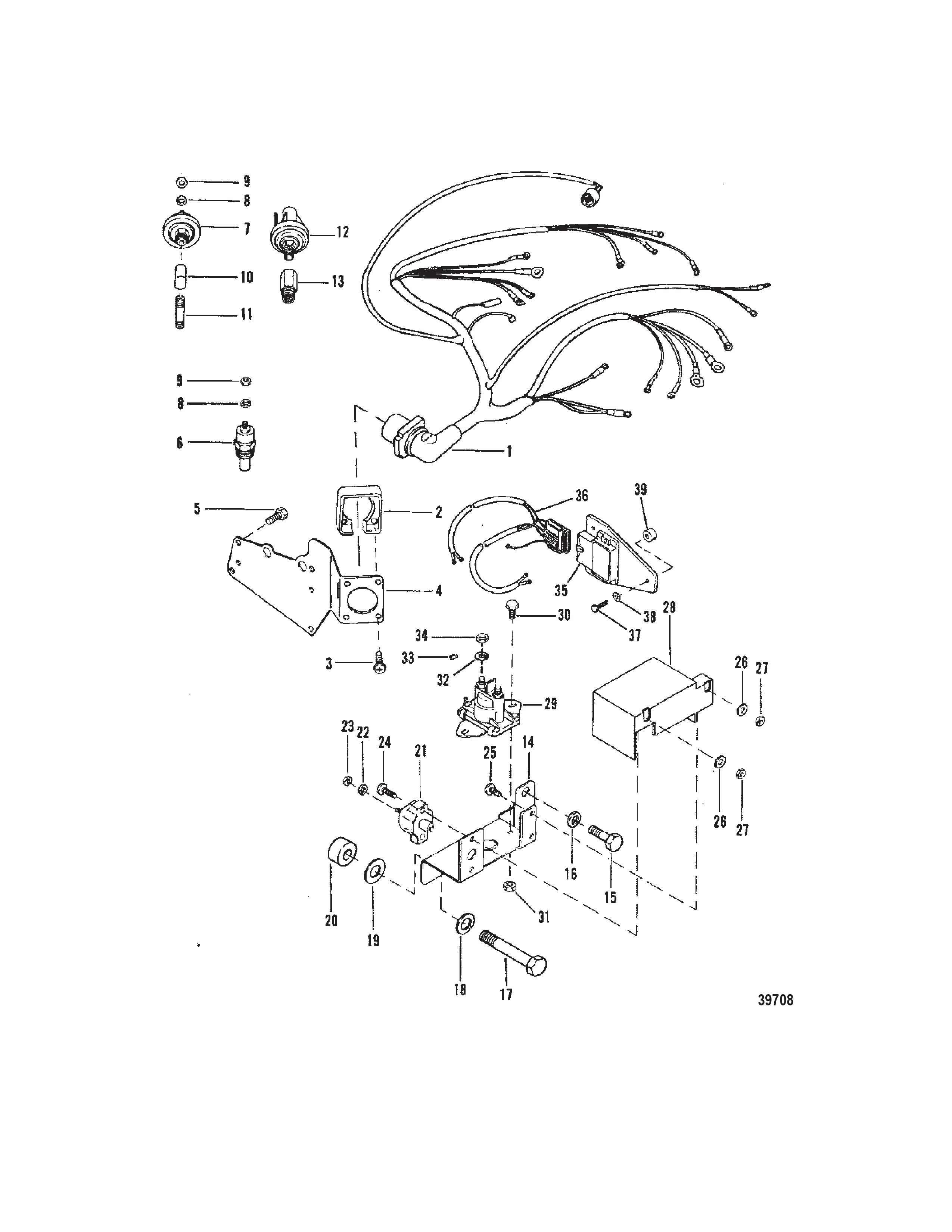

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- CARBURETOR (MERCARB-2 BARREL)
- CARBURETOR (WEBER-4 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST ELBOW
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM
- STARTER MOTOR
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0084 | OEM: 525-84-99510A13 | HARNESS ASSEMBLY | 1 | ||
| 2 | 0000 | OEM: 525-26079A2 | PLATE KIT Wire Harness Mount | 1 | ||
| 3 | 0010 | OEM: 525-10-15001 | SCREW (#8-16 x .875) | 4 | ||
| 4 | 0000 | 98493A2 | BRACKET | 1 | ||
| 5 | 0010 | OEM: 525-10-65746 | SCREW (.250-20 x .750) | 3 | ||
| 6 | 0000 | 97257A1 | SENDER ASSEMBLY Water Temperature | 1 | ||
| 6 | 0000 | 49734A1 | SENDER ASSEMBLY Water Temperature (DUAL) | OPT | ||
| 7 | 0000 | 90806 | SENDER Oil Pressure | 1 | ||
| 7 | 0000 | 37293 | SENDER ASSEMBLY Oil Pressure (DUAL) | OPT | ||
| 8 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 9 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 10 | 0022 | 46932 | ELBOW | 1 | ||
| 11 | 0022 | 42554 | NIPPLE | 1 | ||
| 12 | 0087 | 805024 | SWITCH Oil Pressure | 1 | ||
| 13 | 0022 | 18021 | FITTING | 1 | ||
| 14 | 0000 | 41170T | BRACKET | 1 | ||
| 15 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 16 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 17 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) | 1 | ||
| 18 | 0013 | OEM: 525-13-35048, GLM: 700-21493 | LOCKWASHER (.375) | 1 | ||
| 19 | 0012 | OEM: 525-12-20572 | WASHER (.390 x .750 x .093) | 1 | ||
| 20 | 0023 | OEM: 525-23-57369 | SPACER | 1 | ||
| 21 | 0088 | 11178 | BREAKER Circuit - 50 Ampere | 1 | ||
| 22 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 2 | ||
| 23 | 0011 | OEM: 525-11-68219 | NUT (#10-32) Stainless Steel | 2 | ||
| 24 | 0010 | 45862 | SCREW (#10-32 x .875) | 2 | ||
| 25 | 0010 | 71405 | SCREW (#10-32 x .440) | 1 | ||
| 26 | 0012 | OEM: 525-12-56681 | WASHER (.203 x .500 x .032) | 2 | ||
| 27 | 0011 | OEM: 525-11-61356 | NUT (#10-32) Reduced Hex | 3 | ||
| 28 | 0085 | OEM: 525-85-96819T | INSULATOR | 1 | ||
| 29 | 0089 | 96054 | SOLENOID ASSEMBLY Starter | 1 | ||
| 30 | 0010 | 47910 | SCREW (1/4-28 x 5/8) (5/8") | 2 | ||
| 31 | 0011 | 20088 | NUT | 2 | ||
| 32 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 2 | ||
| 33 | 0011 | OEM: 525-11-26419 | NUT (#8-32) Brass | 2 | ||
| 34 | 0011 | OEM: 525-11-94330 | NUT (.250-20) Brass | 2 | ||
| 35 | 0000 | 15247A1 | IGNITION AMPLIFIER | 1 | ||
| 36 | 0084 | 15275A1 | HARNESS ASSEMBLY | 1 | ||
| 37 | 0010 | OEM: 525-10-76630 | SCREW (.250-20 x 1.00) | 3 | ||
| 38 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 3 | ||
| 39 | 0023 | 92152 | SPACER (.27 x .75 x .38) | 3 |
