4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0D714107 THRU 0F000877 - CYLINDER BLOCK AND CAMSHAFT

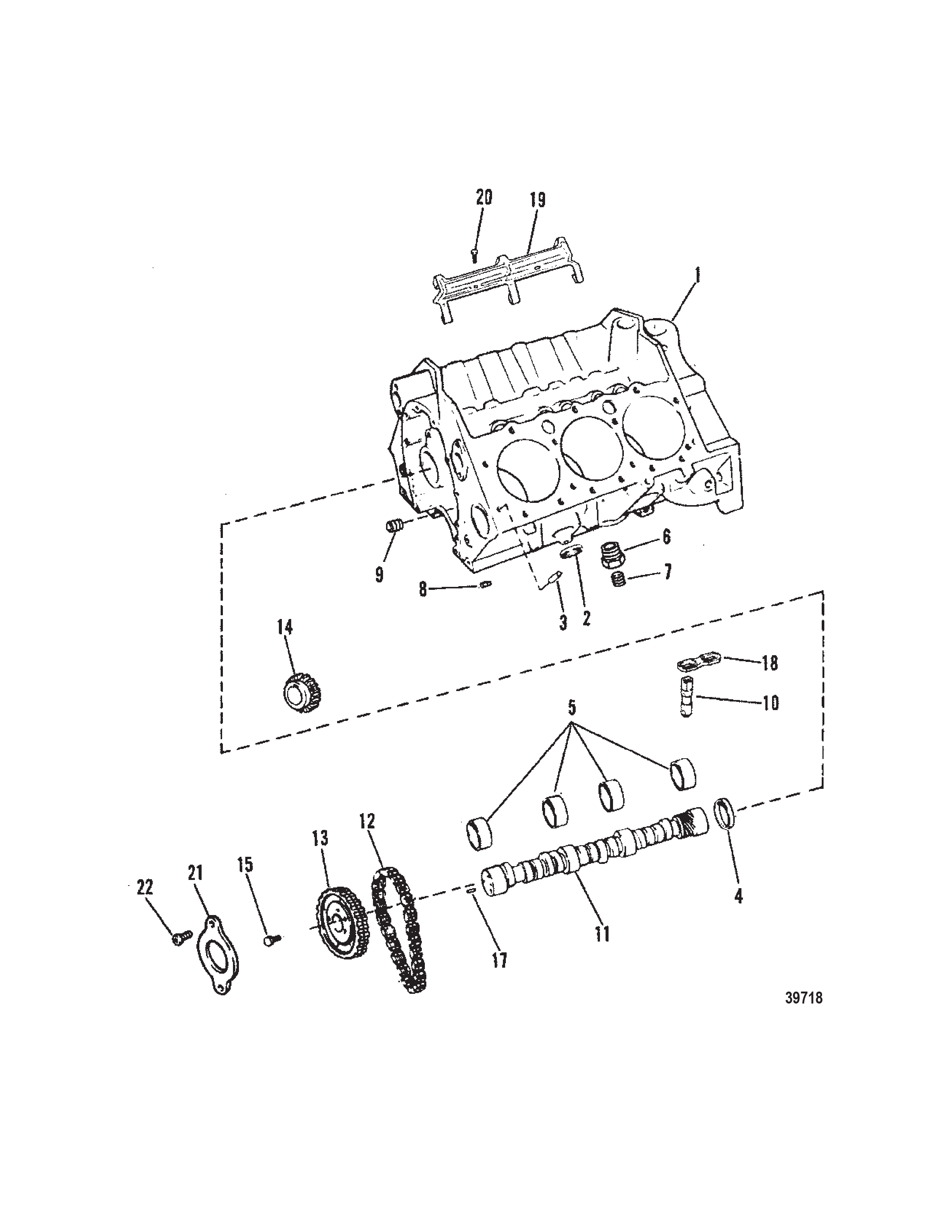

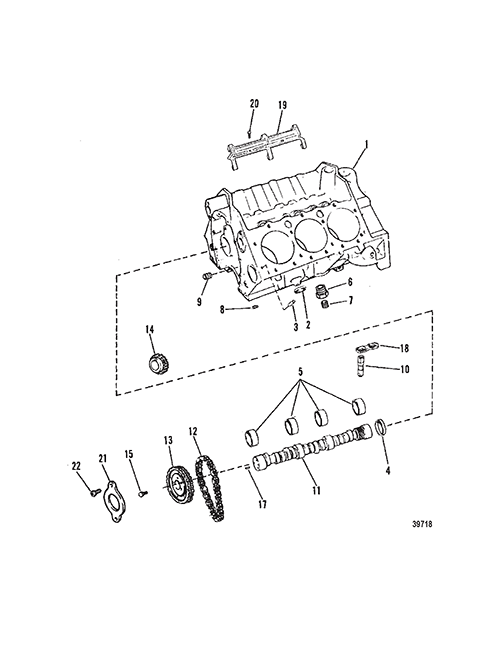

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 841 811838 CYLINDER BLOCK (See Note 2) 1
2 0019 OEM: 525-19-34270 EXPANSION PLUG (1.625)   8
3 0017 OEM: 525-17-35465 PIN Dowel (.312)   4
4 0022 OEM: 525-22-72640 PLUG Expansion   1
5 0023 OEM: 525-23-802999 BEARING SET   1
6 0022 OEM: 525-22-48556 BUSHING Reducer (.250 To .125)   2
7 0022 32802 PLUG Pipe (.125-27)   2
8 0022 OEM: 525-22-42796 VALVE Oil Filter Bypass   1
9 0019 OEM: 525-19-816565 PLUG Cup (.468)   1
10 0000 811844 LIFTER   12
11 431 811840 CAMSHAFT   1
12 0000 17161 CHAIN Timing   1
13 0043 18708 SPROCKET CAMSHAFT   1
14 0043 OEM: 525-43-17160 SPROCKET CRANKSHAFT   1
15 0010 35339 SCREW (.312-18 x .750)   3
17 0017 35312 PIN Dowel (1/4 In. Diameter)   1
18 0000 17341 GUIDE Lifter   6
19 0000 17342 RETAINER   1
20 0010 OEM: 525-10-34500 SCREW (.312-18 x .625)   2
21 0000 17348 RETAINER   1
22 0010 17343 SCREW (.250-20 x .500)   2
- 0027 OEM: 525-27-11977A92, Sierra: 676-18-4388, GLM: 700-39650 GASKET SET Engine Overhaul   1
- 0092 916011 SEALER Red RTV (Where Applicable)   AR
- 0092 342271 SEALING COMPOUND (16 Ounce) (Where Applicable)   AR
- 0000 805613A1 MARINE ENGINE LONG BLOCK (2 Barrel) 1
- 0000 805614A1 MARINE ENGINE LONG BLOCK (4 Barrel) 1
