175 (2 BBL.) GM 262 V-6 - 0B527955 THRU 0B773242 - EXHAUST SYSTEM USE WITH 4 INCH EXHAUST ELBOW

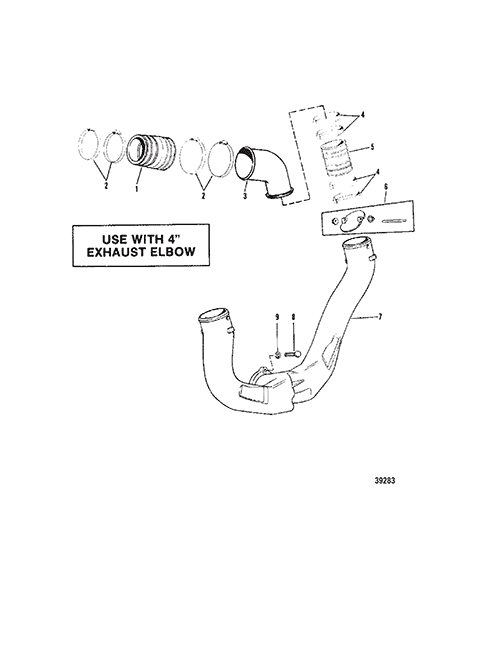

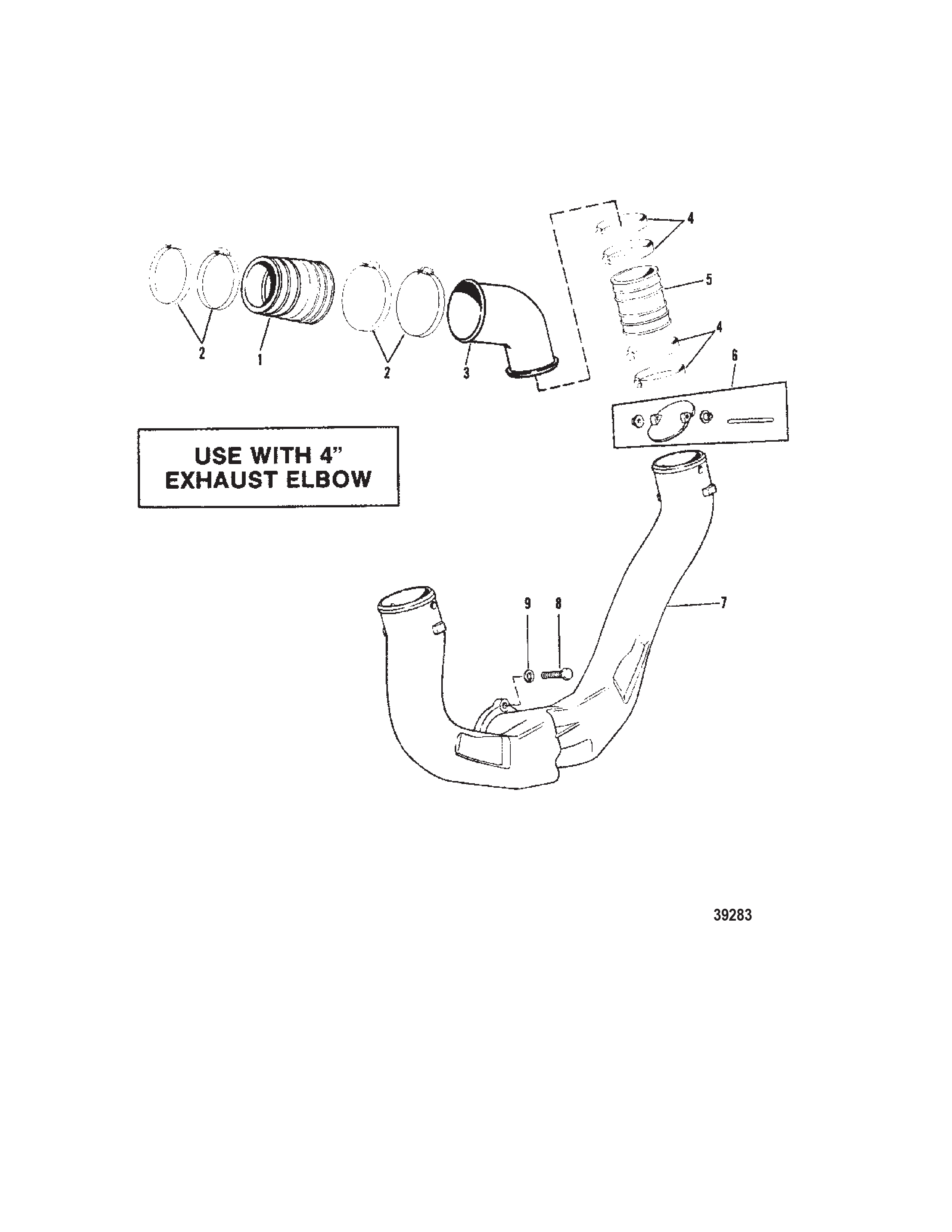

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0032 44348 TUBE EXHAUST   2
2 0054 31765 CLAMP EXHAUST BELLOWS   8
3 0000 14478T ELBOW Exhaust   2
4 0054 31765 CLAMP EXHAUST TUBE   8
5 0032 14358 TUBE Exhaust   2
6 0000 14348A1 SHUTTER ASSEMBLY Water   1
7 0000 44266T1 PIPE Exhaust   1
8 0010 OEM: 525-10-58640 SCREW (.375-16 x 1.25) EXHAUST ELBOW   4
9 0013 OEM: 525-13-41471 LOCKWASHER (.375) EXHAUST ELBOW SCREW   4
