175 (2 BBL.) GM 262 V-6 - 0B527955 THRU 0B773242 - EXHAUST MANIFOLD AND EXHAUST ELBOW

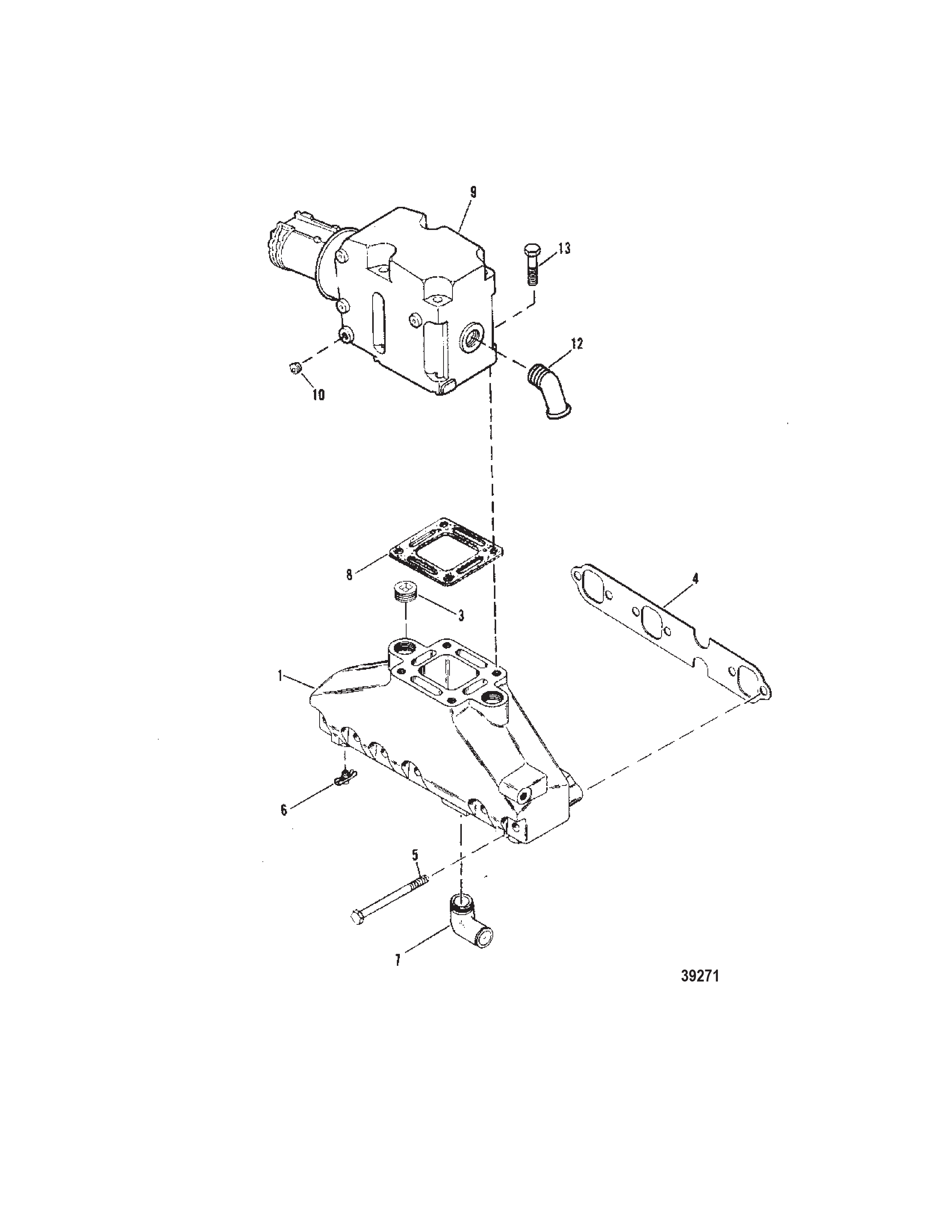

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 99746A8 MANIFOLD ASSEMBLY Exhaust   2
3 0022 33198A1 PLUG (3/4-14) EXHAUST MANIFOLD   AR
4 0027 OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 GASKET EXHAUST MANIFOLD TO CYLINDER HEAD   2 [1]
5 0010 OEM: 525-10-53728, GLM: 700-21745 SCREW (.375-16 x 4.75) EXHAUST MANIFOLD   12
6 0022 16951A1 COCK ASSEMBLY EXHAUST MANIFOLD   2
7 0022 36305 ELBOW (90 Degrees) EXHAUST MANIFOLD (90 DEGREES) 1
7 0022 92499 FITTING (45 Degrees) EXHAUST MANIFOLD (45 DEGREES) 1
8 0027 41813 GASKET EXHAUST ELBOW   2 [1]
9 0000 44354A3 ELBOW ASSEMBLY Exhaust (7 DEGREES -4" O.D.)   2
10 0022 OEM: 525-22-36382, GLM: 700-21887 FITTING (.250-18 x .62) Brass PIPE - EXHAUST ELBOW   4
12 0022 92499 FITTING (45 Degrees) EXHAUST ELBOW (45 DEGREES)   2
13 0010 43749 SCREW (.375-16 x 5.750) MANIFOLD   8
- 0027 OEM: 525-27-11977A92, Sierra: 676-18-4388, GLM: 700-39650 GASKET SET   1
- 0000 93322A3 RISER KIT Exhaust Elbow (6 In.) (6")(Exhaust Elbow Extension) Each kit contains 2 risers. 1
- 0000 93320A3 RISER KIT Exhaust Elbow (3 In.) Each kit contains 2 risers. 1

PART NOTES:

[1] - COMPONENT OF ENGINE/POWERHEAD GASKET SET 11977A92
