250 Sport XS - Serial 1E051824 and Up - Exhaust Plate

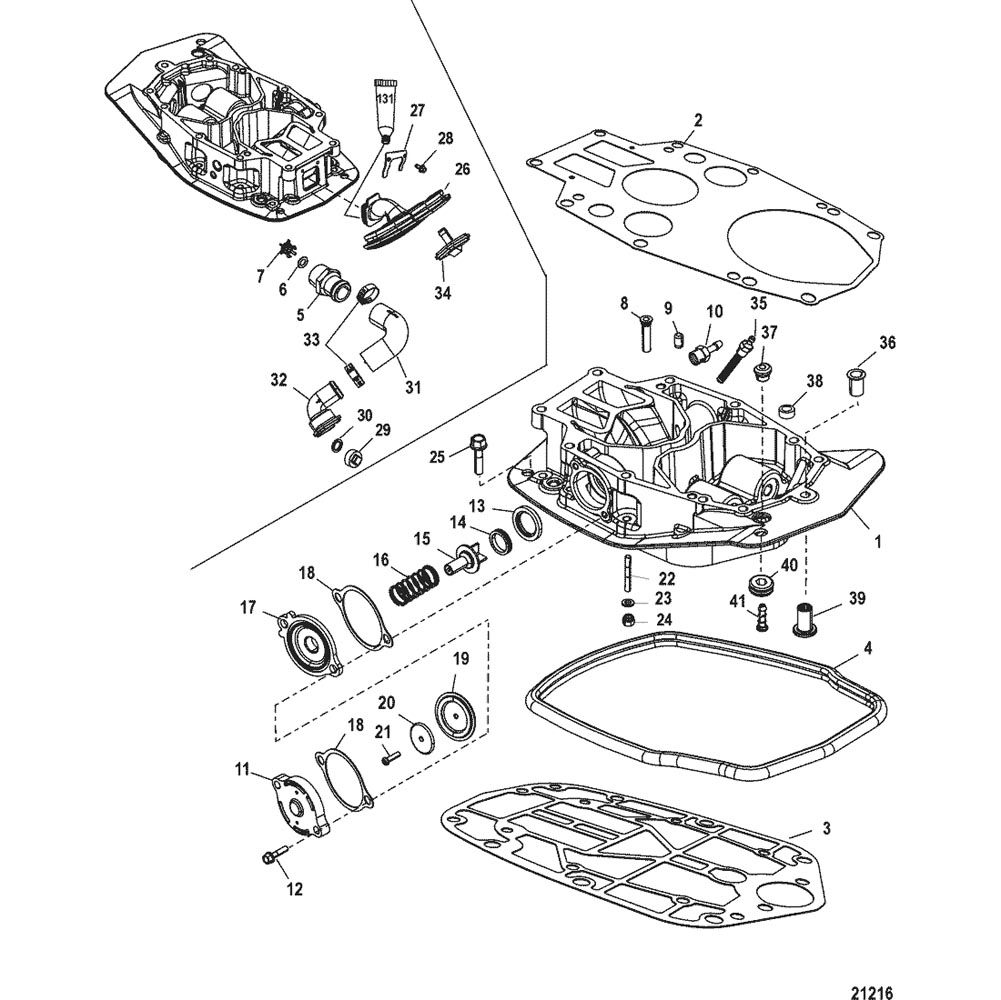

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Shift Linkage
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 842777A19 | PLATE ASSEMBLY, Exhaust | 1 | ||||||
| 2 | 27-832933006 | GASKET | 1 | ||||||
| 3 | 27-832934006 | GASKET (Lower) | 1 | ||||||
| 4 | 8M0043157 | SEAL | 1 | 8238051 | |||||
| - | 22-832076A1 | FITTING ASSEMBLY, Flush | 1 | ||||||
| 5 | 22-8320761 | FITTING, Check Valve | 1 | ||||||
| 6 | 25-30641 | O-RING, (.299 x .103) | 1 | ||||||
| 7 | 8219631 | CHECK VALVE | 1 | ||||||
| 8 | 21-817519A1 | CHECK VALVE ASSEMBLY, Drain | 2 | ||||||
| 9 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) | 4 | ||||||
| 10 | 22-828091 | FITTING | 1 | No Longer Available | |||||
| 11 | 65663A2 | COVER ASSEMBLY (Includes Reference #18) | 1 | ||||||
| 12 | 10-81893435 | SCREW, (M8 x 35) | 2 | ||||||
| 13 | 814190 | CARRIER | 1 | ||||||
| 14 | 25-814191 | GROMMET | 1 | ||||||
| 15 | 814189 | POPPET | 1 | ||||||
| 16 | 24-64878 | SPRING, (Black) | 1 | ||||||
| 17 | 65664A1 | PLATE ASSEMBLY | 1 | ||||||
| 18 | 27-88907003 | GASKET | 2 | ||||||
| 19 | 648771 | DIAPHRAGM | 1 | ||||||
| 20 | 12-76451 | WASHER | 1 | ||||||
| 21 | 10-69570 | SCREW, (#10-16 x .750) | 1 | ||||||
| 22 | 16-8M0035042 | STUD, (M10 x 74) | 4 | 90350017 | |||||
| 23 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 4 | ||||||
| 24 | 11-4013610 | NUT, (M10) Stainless Steel | 4 | ||||||
| 25 | 10-81893435 | SCREW, (M8 x 35) | 6 | ||||||
| 26 | 8503064 | BOOT, Idle Exhaust | 1 | ||||||
| 27 | 8M0006756 | PLATE | 1 | ||||||
| 28 | 10-82239312 | SCREW, (M5 x 12) | 2 | ||||||
| 29 | 19-821908 | PLUG | 1 | ||||||
| 30 | 12-821915 | WASHER | 1 | ||||||
| 31 | 32-859626A1 | FLUSH HOSE KIT (Inlet) | 1 | ||||||
| 32 | 22-8596001 | FITTING | 1 | ||||||
| 33 | 54-850896 | CLAMP, (28.6) | 2 | ||||||
| 34 | 8M0077650 | FITTING, Tell-Tale | 1 | 821904 | |||||
| 35 | 35-8348084 | STRAINER | 1 | ||||||
| 36 | 23-48237 | BUSHING | 1 | ||||||
| 37 | 25-12602002 | GROMMET | 1 | ||||||
| 38 | 23-840193 | SPACER | 2 | ||||||
| 39 | 43585 | COUPLING | 1 | ||||||
| 40 | 25-822002 | GROMMET | 1 | ||||||
| 41 | 22-94848 | FITTING | 1 | ||||||
| - | 27-841220A03 | GASKET SET, Powerhead | 1 |
