225 EFI Pro Max and Super Mag - Serial 0D935638 Thru 0G610103 - Fuel Pump And Fuel Filter

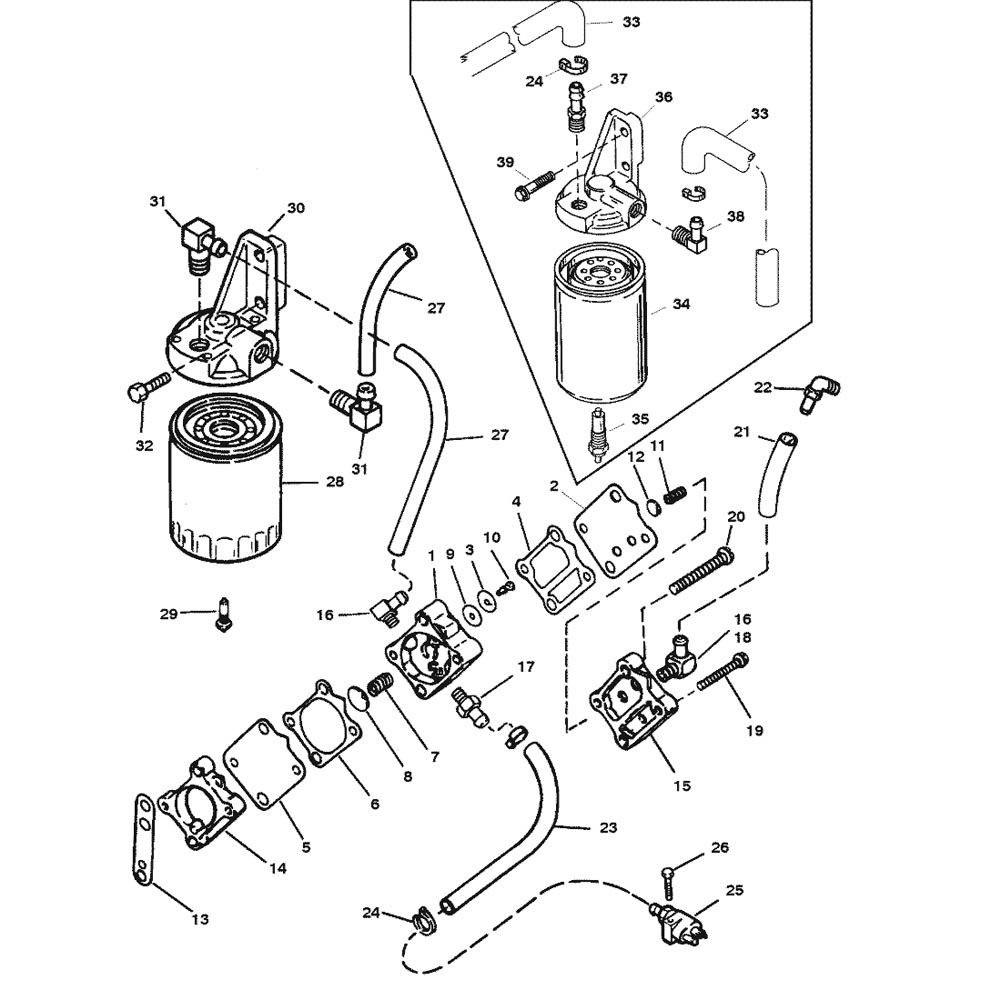

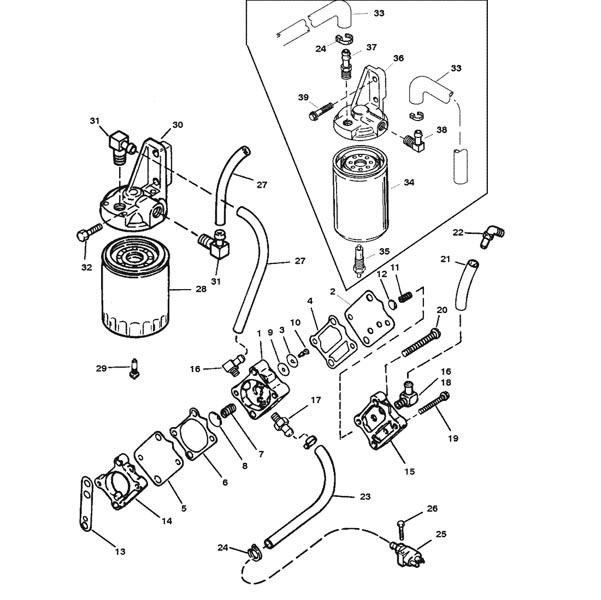

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Drive Shaft Housing And Exhaust Tube
- E.C.U. Assembly
- Exhaust Divider And Exhaust Plate
- Flywheel, Starter Motor And Ignition Coils
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G366999 & Below)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Management System (S/N-0G367000 & Up)
- Fuel Pump And Fuel Filter
- Gear Housing (DRIVE Shaft)(Cle)
- Gear Housing (DRIVE Shaft)(Torque Master)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(COUNTER Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (DRIVESHAFT)(STANDARD Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Counter Rotation) (SPORTMASTER)
- Gear Housing (PROP Shaft)(Standard Rotation) (SPORTMASTER)
- Gear Housing (PROPELLER Shaft)(Cle)
- Gear Housing (PROPELLER Shaft)(Torque Master)
- Gear Housing Chart (SPORTMASTER)
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block And Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket And Steering Arm
- Temperature Sensor
- Throttle Lever And Shift Shaft
- Transom Brackets
- Trim Solenoid Plate (S/N-0G205073 & Below)
- Trim Solenoid Plate (S/N-0G205074 & Up)
- Wiring Harness/Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 14360T75 | FUEL PUMP ASSEMBLY | 1 | 14360A53 | |||||
| 2 | 21-857005A1 | DIAPHRAGM KIT | 1 | 42990A10 | |||||
| 3 | NSS | CHECK VALVE-RUBBER | 2 | Not Sold Separate | |||||
| 4 | NSS | GASKET-BOOST | 1 | Not Sold Separate | |||||
| 5 | NSS | DIAPHRAGM | 2 | Not Sold Separate | |||||
| 6 | NSS | GASKET-PULSE | 1 | Not Sold Separate | |||||
| 7 | NSS | SPRING | 1 | Not Sold Separate | |||||
| 8 | NSS | CAP | 1 | Not Sold Separate | |||||
| 9 | NSS | CHECK VALVE | 2 | Not Sold Separate | |||||
| 10 | NSS | RETAINER | 2 | Not Sold Separate | |||||
| 11 | NSS | SPRING | 1 | Not Sold Separate | |||||
| 12 | NSS | CAP | 1 | Not Sold Separate | |||||
| 13 | 27-987691 | GASKET-BASE | 1 | ||||||
| 14 | 144303 | BASE-FUEL PUMP | 1 | ||||||
| 15 | 987752 | PLATE-FUEL PUMP | 1 | ||||||
| 16 | 22-996642 | ELBOW (1/4 IN. DIA. HOLE) | 1/2 | 99664 | |||||
| 17 | 22-291112 | FITTING | 1 | 29111 | |||||
| 18 | 22-433351 | CONNECTOR (90 DEGREES)(1/8 IN. DIA. HOLE) | 1 | 43335 | |||||
| 19 | 10-82104540 | SCREW-FUEL PUMP | 2 | ||||||
| 20 | 10-16452 | SCREW-FUEL PUMP TO CRANKCASE | 2 | ||||||
| 21 | 32-9912878 | TUBING (8 IN.) | 1 | ||||||
| 21 | 32-8M0108349 | TUBING | 1 | 83075780 | |||||
| 22 | 22-997511 | ELBOW | 1 | 99751 | |||||
| 23 | 32-8M0108349 | TUBING | 1 | 83075780 | |||||
| 24 | 54-816311T | STA-STRAP-FUEL TUBING | AR | 816311 | |||||
| 25 | 22-816856Q3 | FUEL CONNECTOR | 1 | 816856A3 | |||||
| 26 | 10-69067 | SCREW | 1 | ||||||
| 27 | 32-1350385 | TUBING (15-1/2 IN.)(19 IN.) | 2 | 1350382 | |||||
| 28 | 35-18458Q3 | FUEL FILTER ASSEMBLY | 1 | 18458A3 | |||||
| 29 | 14570 | PROBE-WATER SENSING | 1 | ||||||
| 30 | 13170A3 | FUEL FILTER BASE | 1 | ||||||
| 31 | 22-136071 | FITTING | 2 | 13607 | |||||
| 32 | 10-455611 | SCREW (1/4-20 X 1-1/8 IN.) | 2 | 45561 | |||||
| 33 | 32-1350385 | TUBING (15-1/2 IN.)(19 IN.) | 2 | 1350382 | |||||
| 34 | 35-18458Q4 | FUEL FILTER ASSEMBLY | 1 | 18458A4 | |||||
| 35 | 8285861 | PROBE | 1 | 828586 | |||||
| 36 | 13170A3 | FUEL FILTER BASE | 1 | ||||||
| 37 | 22-89771Q2 | CONNECTOR (STRAIGHT) | 1 | 89771 | |||||
| 38 | 22-136071 | ELBOW | 1 | 13607 | |||||
| 39 | 10-455611 | SCREW (1/4-20 X 1-1/8 IN.) | 2 | 45561 | |||||
| - | 27-813859A95 | GASKET SET | 1 | ||||||
| - | 809430T01 | POWERHEAD | 1 | 809430A95 |
