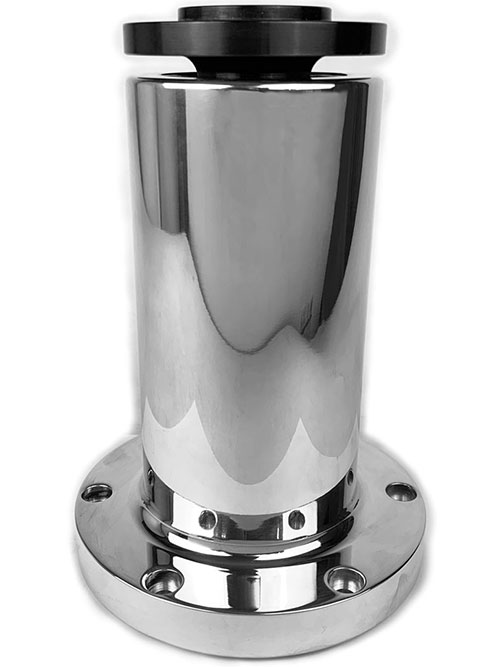

Billet Snout W/ Coupler (7.90″)

Billet Snout W/ Coupler (7.90″) [#4005] TBS high-performance snouts are designed to take a hardcore beating on and off the track. Race proven, these snouts have stood up to the most demanding of blower drive systems. The drive snouts utilize heavy-duty C-3 bearings and a heavy-duty oil seal. The snout housing is crafted from aircraft billet aluminum and the main shaft is made from 4340 heat treated steel. The 1-1/4″ x 48 spline of the main shaft connects to the blower gear coupler bolted to the face of the blower gear. Designed to fit many different applications, TBS snouts come in sizes from 3.90″ to 8.4″. Includes: 7.90″ Snout with #4017 X-Long Main Shaft #4014 – 6.90″ Coupler #4906 – Snout O-Ring (6ea) 5/16-24 x 3/4″ S.H.C.S. Coupler Bolts (6ea) 5/16-18 x 1.0″ S.H.C.S. Snout Bolts **Comes polished by default. Black hard anodizing is available at an extra charge but is not available through online orders. Please call us to place special orders.

• Weight: 13 lbs
• Dimensions: 14×10×6 in
• Size: 3.90", 5.15", 5.90", 6.90", 7.90", 8.40"
• 71 / Low Profile: 71 Series
• Finish: Polished, Black Hard Anodized
