TBS XR Series Belt Guard (Stands Not Included) Black Anodized

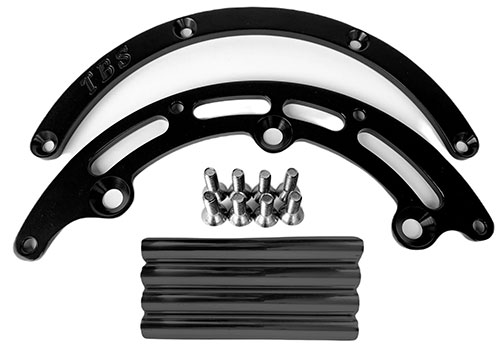

TBS XR SERIES BELT GUARD (STANDS NOT INCLUDED) BLACK ANODIZED [#8601] 8601 XR Belt Guard is designed to bolt to a TBS XR-1 Front Cover or a #8604 clamp on belt guard bracket. This pattern is the same as on an SSI or Kobelco 3 Bolt Cover. This is a Belt Guard only and does NOT have provisions for a starter mount. Includes: Inner and outer Belt guard Frames (4 Each) Center Stands with Hardware (3 Each) 3/8-16 x 3/4″ Flat Heads XR Series Belt Guards Stand Chart: No Spacer: Fits 3.90” snout (or 5.45” overall) when mounted to front cover. Includes: 3/8 – 16 x 3/4″ Flat Head [x3] #8630 – .20” Spacer: Fits 5.15” snout (or 5.65” overall) when mounted to front cover. Includes: .20 Spacer [x3] 3/8 – 16 x 1” Flat Head [x3] #8631 – 1.20” Spacer: Fits 5.90” snout (or 6.65” overall) when mounted to front cover. Includes: 1.20” Spacer [x3] 3/8 – 16 x 2” Flat Head [x3] #8632 – 2” XR Stand: Fits 6.90” snout (or 7.45” overall) when mounted to front cover. Includes: 2” XR Stand [x3] 3/8 – 16 x 1” Flat Head [x3] 3/8 – 16 x 1.5” stud [x3] #8633 – 3” XR Stand: Fits 7.90” snout (or 8.45” overall) when mounted to front cover. Includes: 3” XR Stand [x3] 3/8 – 16 x 1” Flat Head [x3] 3/8 – 16 x 1.5” stud [x3] #8604 – Clamp for XR Belt Guard: Fits 5.90” – 8.40” Snouts. Includes: Belt Guard Clamp [x1] 1/4 – 20 x 1” S.H.C.S. [x2] *Installed in clamp. 3/8 – 16 x 3/4″ Flat Head [x3]

• Weight: 4 lbs
• Dimensions: 9×8×4 in
• 71 / Low Profile: 71 Series
• XR / Race: XR
