Clamp On Belt Guard Bracket

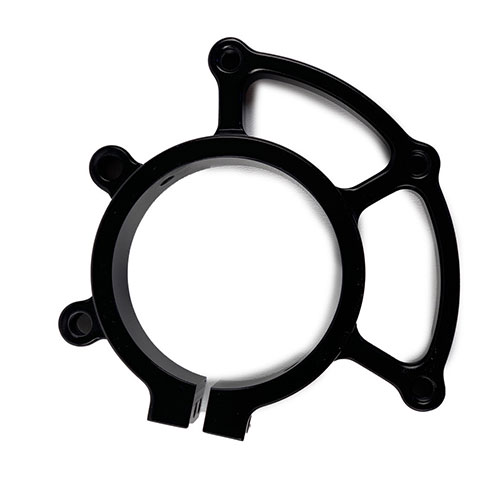

#8604 – CLAMP ON BELT GUARD BRACKET This #8604 Clamp on Belt Guard Bracket is designed to mount to a TBS 71 Series blower snout. It is machined for use on a 3.437″ DIA. snout body. It’s 3 bolt pattern is the same as a TBS XR1, SSI, or Kobelco Cover. This is the perfect Bracket for use of a #8601 XR Belt Guard on those longer snouts, or it can be used with an RCD 3 Bolt Starter Bracket on your race blower. It does have 2 provisions for snout supports if needed. #8604 – Clamp for XR Belt Guard: Fits 5.90” – 8.40” Snouts. Includes: Belt Guard Clamp [x1] 1/4 – 20 x 1” S.H.C.S. [x2] *Installed in clamp. 3/8 – 16 x 3/4″ Flat Head [x3] Note: Does not work with #8605 style belt guards.

• Weight: 5 lbs
• Dimensions: 7×7×3 in
• 71 / Low Profile: 71 Series
