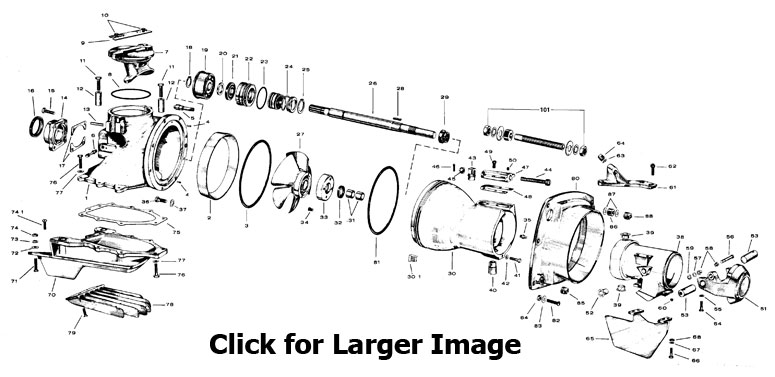

Jacuzzi 12YJ Parts

Sym. Per Unit Description Part No.
1 1 Suction Piece No. 4990 160-04-1857-08
2 1 Wear Plate No. 5533 160-08-2243-13
3 1 Wear Plate O-ring 160-47-0178-01
4 2 Wear Plate Dowel Pin 160-14-1773-07
5 1 Auxiliary Water Outlet Plug Assembly 160-23-1558-07
6 1 Thrust Bearing Grease Fitting 160-23-0562-03
7 1 Inspection Cap No. 4993 160-51-0184-06
8 1 Inspection Cap O-ring 160-47-0258-04
9 1 Inspection Cap Lock Wrench 160-22-1810-02
10 2 Lock Wrench Nylatch Assembly 160-23-1418-07
11 2 Hold Down Bolt 160-14-0734-07
12 2 Inspection Cap Swivel Block 160-51-0201-05
13 2 Swivel Block Spring Pin 160-14-0802-04
14 1 Bearing Cap No. 4910 160-08-2399-07
15 4 Bearing Cap Bolts 160-14-1295-14
16 1 Bearing Cap Lip Seal 160-10-1320-09
17 Opt. Impeller Adjustment Shims Effective .010 Movement 160-14-0829-70
17.1 Opt. Impeller Adjustment Shims Effective .005 Movement 160-14-1903-70
18 1 Thrust Bearing Retaining Ring 160-14-0767-07
19 1 Thrust Bearing 160-08-2202-12
20 1 Thrust Bearing Washer 160-14-1762-00
21 1 Seal Housing Lip Seal 160-10-1345-00
22 1 Seal Housing 160-10-1042-06
23 2 Seal Housing O-ring 160-47-0232-05
24 1 Mechanical Seal 160-10-1043-05
25 1 Mechanical Seal Retaining Ring 160-14-0801-05
26 1 Impeller Shaft 160-07-5756-08
27.1 1 Impeller "B" Cut No. 4906 160-05-3224-09
27.2 1 Impeller "C" Cut No. 4906 160-05-3225-08
27.3 1 Impeller "D" Cut No. 4906 160-05-3226-07
27.4 1 Impeller "E" Cut No. 4906 160-05-3227-06
27.5 1 Impeller "F" Cut No. 4906 160-05-3228-05
27.6 1 Impeller "G" Cut No. 4906 160-05-3229-04
27.7 1 Impeller "H" Cut No. 4906 160-05-3230-01
27.8 1 Impeller "I" Cut No. 5617 160-05-3231-00
27.9 1 Impeller "J" Cut No. 5617 160-05-3232-09
27.10 1 Impeller "K" Cut No 5617 160-05-3346-02
28 1 Impeller Key 160-23-1403-04
29 1 Impeller Nut 160-23-1491-07
30 1 Bowl No. 4905 160-04-1856-09
30.1 2 Water Strainer 160-22-1884-03
31 2 Bowl Bearing 160-23-1423-00
32 1 Bowl Bearing Lip Seal 160-10-1260-19
33 1 Bowl Wear Ring 160-08-2244-04
33.1 1 Cooling Outlet Plug 160-31-0557-00
34 4 Bowl Wear Ring Bolts 160-14-1490-17
35 1 Bowl Grease Fitting 160-23-0560-13
36 8 Bowl Bolts 160-14-0731-00
37 8 Lock Washer 160-14-0722-01
38 1 Deflector No. 4997 160-52-7014-12
39 2 Deflector Nyliner Bearings 160-08-2245-03
40 1 Deflector Bottom Pivot Pin 160-51-0203-03
41 1 Bottom Pivot Pin Retaining Bolt 160-14-1269-16
42 1 Lock Tab 160-14-1895-00
43 1 Deflector Bottom Pivot Pin 160-51-0203-03
44 1 Trim Screw 160-14-0809-07
45 1 Trim Screw Nut 160-14-0803-03
46 1 Trim Screw Nut Cotter Pin 160-14-0712-03
47 1 Trim Cap No. 5426 160-51-0208-08
48 1 Trim Cap Gasket 160-13-0370-07
49 6 Trim Cap Bolts 160-14-1772-08
50 1 Trim Set Screw 160-14-0717-08
51 1 Reverse Gate (Pull to open) 5509 160-52-0313-09
52 2 Reverse Gate Nyliner Berarings 160-08-2196-02
53 2 Reverse Gate Pivot Pin 160-52-0280-08
54 2 Pivot Pin Retaining Bolts 160-14-1268-09
55 2 Lock Tab 160-14-1895-00
56 1 Reverse Gate Cable Pin 160-52-0293-03
57 1 Cable Pin Flat Washer 160-23-1503-03
58 2 Cable Pin Nyliner Bearing 160-08-2298-09
59 1 Cable Pin Retaining Ring 160-14-1504-11
60 1 Cable Lock Nut 160-14-0797-01
61 1 Tiller Arm (Pull to open) No. 5573 160-52-0310-02
62 2 Tiller Arm Bolts 160-14-0737-12
63 1 Cable Retainer C-Washer 160-23-1502-04
64 1 Cable Retainer Plug 160-22-1995-09
65 1 Rudder No. 4975 160-52-0290-06
66 4 Rudder Bolts 160-14-1268-09
67 4 Lock Washer 160-14-0721-02
68 4 Nut 160-14-0725-08
69   Bottom Pivot Washer 160-14-1856-07
70 1 Grill Housing Contour No. 4992 160-51-0182-08
70.1 1 Grill Housing Flat No. 4991 160-51-0185-05
70.2 1 Grill Housing Deep Vee No.5525 160-51-0289-00
71 8 Grill Housing Machine Screws 160-14-1713-00
72 8 Flat Washers 160-14-0756-00
73 8 Lock Washers 160-14-1416-18
74 8 Nut 160-14-0726-07
74.1 4 Grill Housing Leveling Screws 160-14-1399-50
75 1 Suction Piece Gasket 160-13-0884-06
76 10 Suction Piece Bolts 160-14-0731-00
77 10 Lock Washer 160-14-0722-01
78 1 Grill Insert Standard No. 5452 160-51-0250-05
78.1 1 Grill Insert Deep Vee No. 5638 160-51-0290-07
79 4 Grill Insert Machine Screw 160-51-0290-07
80 1 Transom Adapter 120 No. 4995 160-52-0275-05
80.1 1 Transom Adapter 20 No. 4995 160-52-0287-01
81 1 Transom Adapter O-ring 160-47-0451-09
82 6 Transom Adapter Machine Screws 160-14-1844-02
83 6 Flat Washer 160-14-0756-00
84 6 Nut 160-14-0726-07
85 1 Drain Plug 1/2" NPT 160-31-0061-82
86 1 Cable Sealing Gland 160-23-1504-02
87 2 Flat Washer 160-23-1503-03
88 1 Cable Lock Plug 160-22-1995-09
94 1 Engine Bracket (For Chevrolet, Ford 460 or Oldsmobile) 160-51-0261-02
94 1 Engine Bracket (For Chevrolet, Ford 460 or Oldsmobile) 160-51-0261-02
94.1 1 Engine Bracket (For Ford or Chrysler) 160-51-0262-01
95 2 Engine Bracket Rubber Mount 160-23-0557-00
96 2 Engine Bracket Nut 160-14-1843-03
97 2 Engine Bracket Washer 160-14-0187-09
98 2 Engine Bracket Lockwasher 160-14-0723-00
99 2 Engine Bracket Capscrew 160-14-1539-02
100 1 Short Coupling Chevy 160-23-1489-01
100.1 1 Short Coupling Olds 160-23-1490-08
100.2 1 Short Coupling Ford 460 160-23-1519-05
101 102 1 Steering Tube 160-51-0431-07
102.1 6 Sock Cap Ford 460 160-14-0805-01
