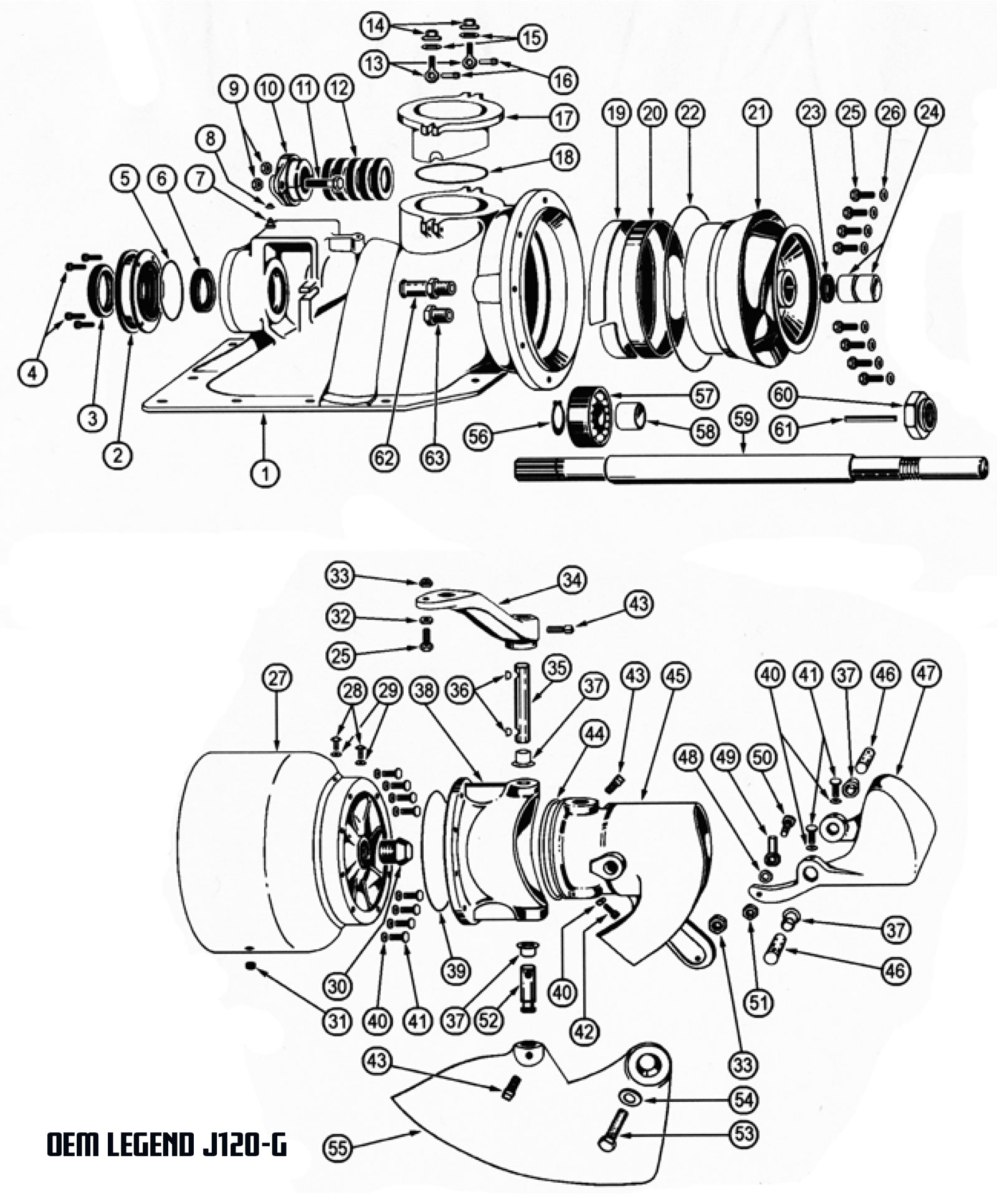

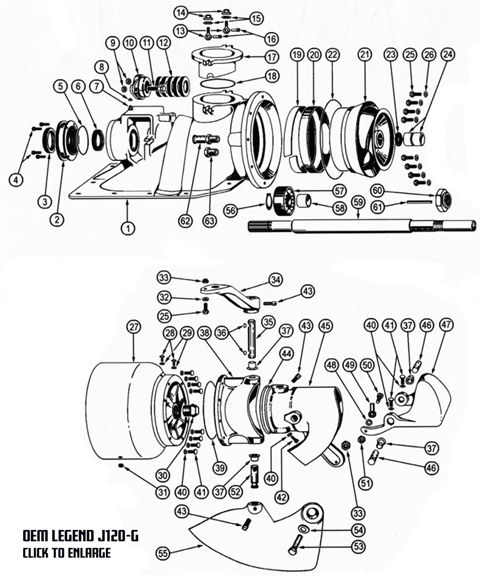

American Turbine Model OEM Legend J120-G
Model OEM Legend J120-G
Just looking for a rebuild/overhaul kit? Click Here or Here (HP Bearing Kit REQUIRED)
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
Suction Piece |
1
|
152-J0726 |
|
2
|
Bearing Cap |
1
|
152-J0338 |
|
3
|
Bearing Cap Seal |
1
|
152-SL1007 |
|
4
|
Bearing Cap Screw |
4
|
152-J0908 |
|
5
|
Bearing Cap O-Ring |
1
|
152-J0102 |
|
6
|
Suction Piece Seal |
1
|
152-SL1507 |
|
7
|
Grease Fitting |
1
|
152-J0480 |
|
8
|
Grease Fitting Cap |
1
|
152-J1005 |
|
9
|
Pack Gland Nut |
2
|
152-J0916 |
|
10
|
Packing Gland (Pair) |
1
|
152-SC2507 |
|
11
|
Pack Gland Bolt |
2
|
152-J0917 |
|
12
|
Packing Ring |
5
|
152-SC3007 |
|
13
|
Rod End |
2
|
152-J0907 |
|
14
|
Flange Nut |
2
|
152-J0680 |
|
15
|
Hand Hole Washer |
2
|
152-J0902 |
|
16
|
Groove Pin |
2
|
152-J0479 |
|
17
|
Hand Hole Cover |
1
|
152-J0098 |
|
18
|
Hand Hole Cover O-Ring |
1
|
152-O1002 |
|
19
|
Insulator |
1
|
152-WR6004 |
|
20
|
Wear Ring |
1
|
152-WR5000 |
|
21
|
Impeller |
1
|
152-IMB*** |
|
22
|
Bowl / Suction Piece O-Ring |
1
|
152-J0100 |
|
23
|
Bowl Seal |
1
|
152-SL2003 |
|
24
|
Bowl Bearing |
2
|
152-B1502 |
|
25
|
3/8" Hex Head Cap Screw |
9
|
152-J0918 |
|
26
|
Bowl Washer |
8
|
152-J0909 |
|
27
|
Bowl |
1
|
152-J0496 |
|
28
|
Oil Plug 1/4-28 |
2
|
152-J0938 |
|
29
|
1/4" Nylon Washer |
2
|
152-J0104 |
|
30
|
Bowl End Cap |
1
|
152-J0850 |
|
31
|
1/8" Pipe Plug |
1
|
152-J0883 |
|
32
|
3/8" Jam Nut |
1
|
152-J0913 |
|
33
|
3/8" Lock Nut |
2
|
152-J0912 |
|
34
|
Steering Tiller |
1
|
152-J0645 |
|
35
|
Tiller Shaft |
1
|
152-J0397 |
|
36
|
Woodruff Key |
2
|
152-R5507 |
|
37
|
Nyliner Bearing |
4
|
152-B2007 |
|
38
|
Nozzle Housing |
1
|
152-J0027 |
|
39
|
Nozzle Housing O-Ring |
1
|
152-J0101 |
|
40
|
5/16" Lock Washer |
11
|
152-F05 LW |
|
41
|
5/16" HHCS |
10
|
152-J0915 |
|
42
|
5/16" SHCS |
1
|
152-J0927 |
|
43
|
5/16" Square Head Cap Screw |
3
|
152-J0920 |
|
44
|
Nozzle O-Ring, Teflon |
1
|
152-O1505 |
|
45
|
Nozzle |
1
|
152-J0405 |
|
46
|
Reverse Bucket Pin |
2
|
152-J0826 |
|
47
|
Reverse Bucket |
1
|
152-J0250 |
|
48
|
1/4" Flat Washer |
1
|
152-F04 FW |
|
49
|
Ball Joint Rod End |
1
|
152-J0107 |
|
50
|
1/4" HHCS |
1
|
152-J0904 |
|
51
|
1/4" Lock Nut |
1
|
152-F04 20 LN |
|
52
|
Rudder Pin |
1
|
152-J0753 |
|
53
|
3/8" Rudder Bolt |
1
|
152-J0945 |
|
54
|
3/8" Rudder Washer |
1
|
152-J0901 |
|
55
|
Rudder |
1
|
152-J0596 |
|
56
|
Retainer Ring (.094) |
1
|
152-J0484 |
|
57
|
Thrust Bearing |
1
|
152-B1007 |
|
58
|
Shaft Sleeve |
1
|
152-SH2507 |
|
59
|
Pump Shaft |
1
|
152-SH1107 |
|
60
|
Impeller Nut |
1
|
152-SH3507 |
|
61
|
Impeller Key |
1
|
152-SH3007 |
|
62
|
Barb 3/8 Hose x 1/2 MPT |
1
|
152-J0818S |
|
63
|
1/2" Pipe Plug |
1
|
152-J0820 |
