Serial 0L302200 Thru 0M299999 - Transmission (V-Drive) (Hurth 630) - Transmission (V-Drive)(Hurth 630)

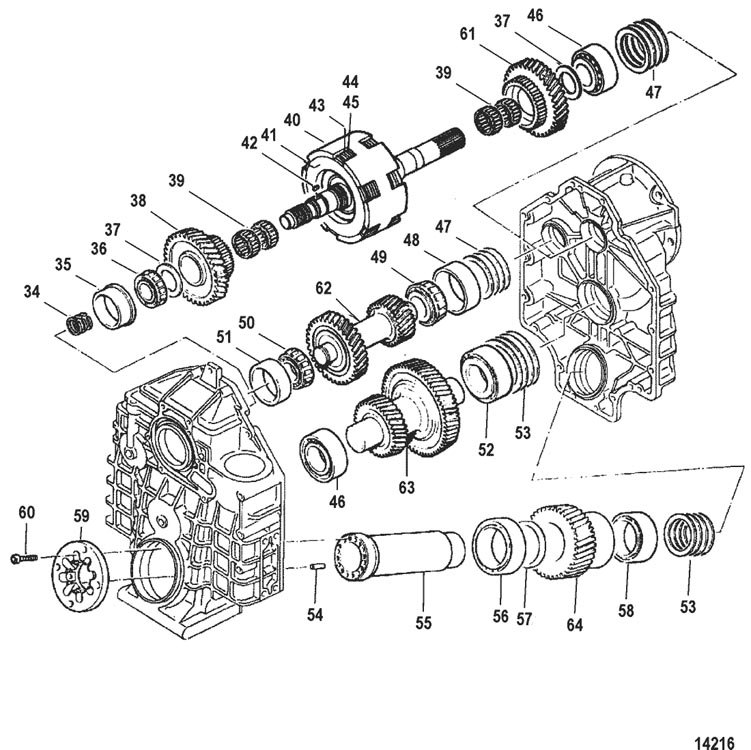

Section Drawing: (Hover or click to view larger)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 863745T2 | TRANSMISSION, (1.5:1 Ratio) | 1 | 814437A1 | |||||
| - | 863745T3 | TRANSMISSION, (2.0:1 Ratio) | 1 | 814438A1 | |||||
| - | 863745T4 | TRANSMISSION, (2.5:1 Ratio) | 1 | 814439A1 | |||||
| 34 | 53-813321 | RING | 3 | No Longer Available | |||||
| 35 | 31-811970 | BEARING, Tapered Roller Cup | 1 | No Longer Available | |||||
| 36 | 31-811969 | BEARING, Tapered Roller Cone | 1 | No Longer Available | |||||
| 37 | 12-811967 | WASHER | 2 | No Longer Available | |||||
| 38 | 43-813308 | GEAR | 1 | No Longer Available | |||||
| 39 | 31-813307 | BEARING, Roller | 4 | No Longer Available | |||||
| 40 | 813306 | SHAFT, Input | 1 | No Longer Available | |||||
| 41 | 813322 | PRESSURE DISC | 2 | No Longer Available | |||||
| 42 | 28-813313 | KEY | 1 | No Longer Available | |||||
| 43 | 53-813321 | RING | 2 | No Longer Available | |||||
| 44 | 913319 | DISC | 8 | ||||||
| 45 | 913320 | DISC | 10 | ||||||
| 46 | 30-811968 | BEARING, Ball | 2 | No Longer Available | |||||
| 47 | 15-813315 | SHIM, (.10 mm) | 1 | No Longer Available | |||||
| 47 | 15-813316 | SHIM, (.15 mm) | 1 | No Longer Available | |||||
| 47 | 15-813317 | SHIM, (.20 mm) | 1 | No Longer Available | |||||
| 47 | 15-813318 | SHIM, (.50 mm) | 1 | No Longer Available | |||||
| 48 | 31-811979 | Tapered Roller Cup Bearing | 1 | No Longer Available | |||||
| 49 | 31-811978 | Tapered Roller Cone Bearing | 1 | No Longer Available | |||||
| 50 | 31-811971 | Tapered Roller Cone Bearing | 1 | No Longer Available | |||||
| 51 | 31-811977 | Tapered Roller Cup Bearing | 1 | No Longer Available | |||||
| 52 | 31-811972 | Tapered Roller Bearing | 1 | No Longer Available | |||||
| 53 | 15-811973 | SHIM (.10 MM) | 2 | No Longer Available | |||||
| 53 | 15-811974 | SHIM (.15 MM) | 2 | No Longer Available | |||||
| 53 | 15-811975 | SHIM (.30 MM) | 2 | No Longer Available | |||||
| 53 | 15-811976 | SHIM (.50 MM) | 2 | No Longer Available | |||||
| 54 | 17-811984 | PIN, Dowel | 4 | No Longer Available | |||||
| 55 | 811980 | SHAFT, Output | 1 | No Longer Available | |||||
| 56 | 31-811985 | BEARING, Tapered Roller | 1 | No Longer Available | |||||
| 57 | 12-811981 | WASHER | 1 | No Longer Available | |||||
| 58 | 31-811986 | BEARING, Tapered Roller | 1 | No Longer Available | |||||
| 59 | 811982 | FLANGE | 1 | ||||||
| 60 | 10-811983 | SCREW | 8 | No Longer Available | |||||
| 61 | 43-811987 | GEAR | 1 | No Longer Available | |||||
| 61 | 43-811949 | GEAR | 1 | No Longer Available | |||||
| 61 | 43-811949 | GEAR | 1 | No Longer Available | |||||
| 62 | 811951 | SHAFT, Reversing | 1 | No Longer Available | |||||
| 62 | 811947 | SHAFT, Reversing | 1 | No Longer Available | |||||
| 62 | 811947 | SHAFT, Reversing | 1 | No Longer Available | |||||
| 63 | 811952 | SHAFT, Intermediate | 1 | No Longer Available | |||||
| 63 | 811948 | SHAFT, Intermediate | 1 | No Longer Available | |||||
| 63 | 811946 | SHAFT, Intermediate | 1 | No Longer Available | |||||
| 64 | 43-811950 | GEAR | 1 | No Longer Available | |||||
| 64 | 43-811950 | GEAR | 1 | No Longer Available | |||||
| 64 | 43-811945 | GEAR | 1 | No Longer Available |
