500 Bulldog - Serial 0K000248 Thru 0L001607 - Sea Water Pump Assembly

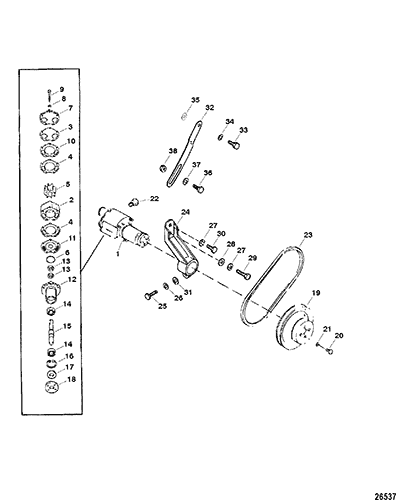

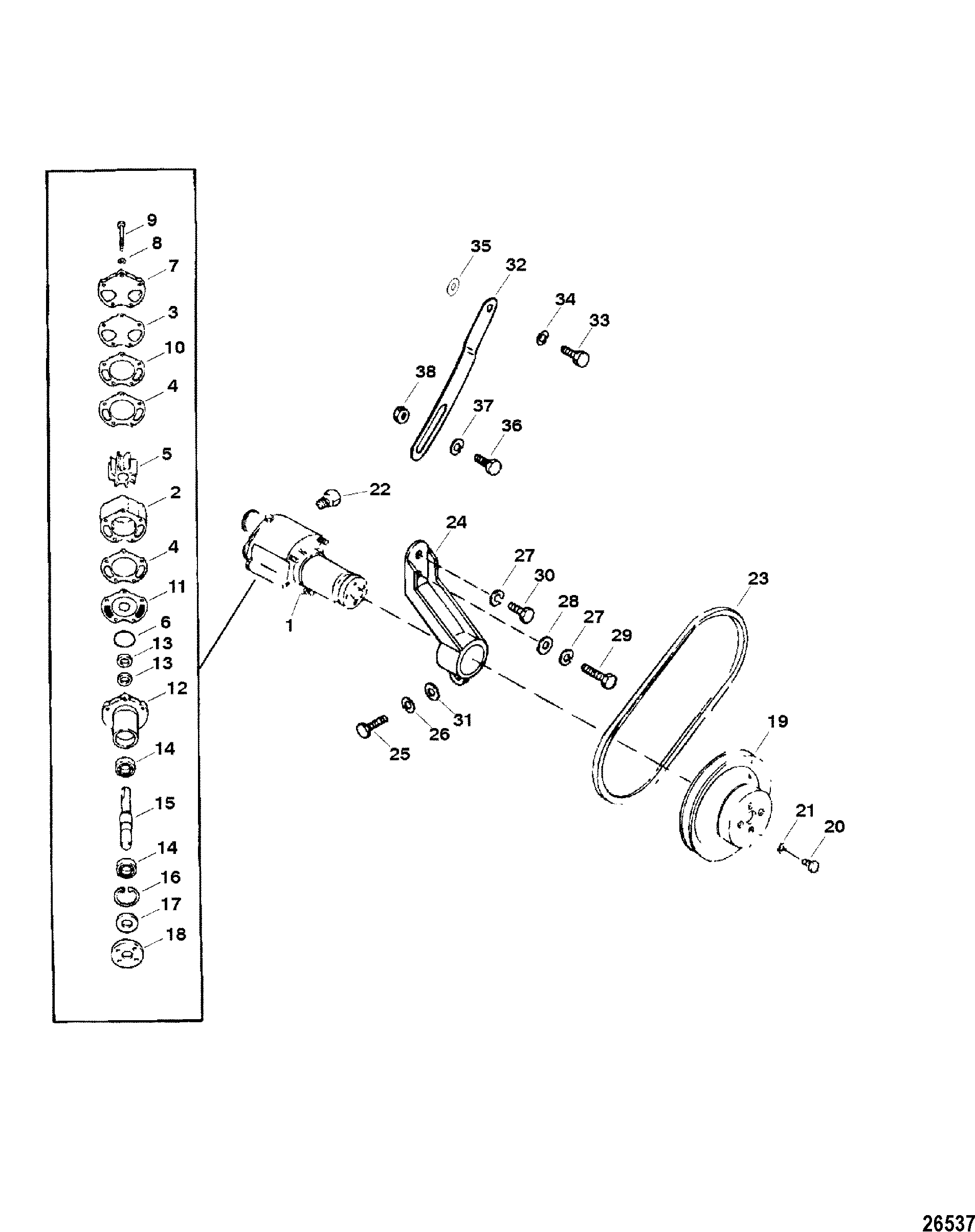

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo Models)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Elbow
- Flywheel Housing (Bravo Models)
- Flywheel Housing (Driveline Models)
- Intake Manifold And Front Cover
- Mount Plates (Single)
- Mount Plates (Staggered)
- Oil Cooler Assembly (Bravo Models)
- Oil Cooler Assembly (Driveline Models)
- Oil Filter And Oil Adaptor
- Oil Pump And Oil Pump
- Power-Assisted Steering Assembly
- Sea Water Pump Assembly
- Shift Bracket (Bravo Models)
- Starter And Alternator
- Starter Assembly (Bravo Models) (50-8M8021116)
- Starter Assembly (Driveline Models) (50-808011A1)
- Thermostat Housing And Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-72774T38 | PUMP ASSEMBLY, Sea Water | 1 | 46-72774A38 | |||||
| 2 | 46-72774A89 | BODY/IMPELLER KIT | 1 | ||||||
| 3 | 27-8052151 | GASKET, Cover To Outer Wear Plate | 1 | ||||||
| 4 | 27-94914 | GASKET, Body To Wear Plate | 2 | ||||||
| 5 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | 47-593621 | ||
| 6 | 25-94288 | QUAD RING | 1 | ||||||
| 7 | 87631A4 | COVER KIT | 1 | NOTE: Also Includes #3 | |||||
| 8 | 12-20084 | WASHER, (.328 x .562 x .062) | 5 | ||||||
| 9 | 10-73275 | SCREW, (.312-18 x 2.88) | 5 | ||||||
| 10 | 94916 | WEAR PLATE, Outer | 1 | ||||||
| 11 | 94576 | WEAR PLATE, Inner | 1 | ||||||
| 12 | 46-94913A1 | HOUSING ASSEMBLY | 1 | ||||||
| 13 | 26-90562 | 676-9-76107 | 700-85080 | SEAL, (1.254 x .312), Oil | 2 | ||||
| 14 | 30-72961 | BEARING, Ball | 2 | ||||||
| 15 | 59501A1 | SHAFT | 1 | ||||||
| 16 | 53-23720 | RING, Retaining | 1 | ||||||
| 17 | 26-72785 | SEAL, Oil | 1 | ||||||
| 18 | 47530 | HUB | 1 | ||||||
| 19 | 737981 | PULLEY, Blue | 1 | This Part is No Longer Available | |||||
| 20 | 10-47277 | SCREW, (.312-24 x .750) | 4 | ||||||
| 21 | 13-39107 | 700-21496 | LOCKWASHER, (.312) | 4 | |||||
| 22 | 22-328022 | PLUG, Pipe (.125-27), For Sea Water Pump Body | 1 | 22-328021 | |||||
| 23 | 57-74271Q | V BELT | 1 | 57-74271T | |||||
| 24 | 474891 | BRACKET | 1 | ||||||
| 25 | 10-34354 | SCREW, (.375-16 x 1.50) | 1 | ||||||
| 26 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 27 | 13-32993 | LOCKWASHER, (.437) | 2 | ||||||
| 28 | 12-27025 | WASHER | 1 | ||||||
| 29 | 10-47462 | SCREW, (.437-14 x 1.250) | 1 | ||||||
| 30 | 10-48948 | SCREW, (.437-14 x .880) | 1 | This Part is No Longer Available | |||||
| 31 | 12-29330 | WASHER, For Slot | 1 | ||||||
| 32 | 47544 | BRACE, Water Pump | 1 | ||||||
| 33 | 10-34353 | SCREW, (.375-16 x 1.00) | 1 | ||||||
| 34 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 35 | 12-38622 | WASHER, (.391 x 1.00 x .125) | 1 | ||||||
| 36 | 10-35786 | SCREW, (.375-24 x 1.00) | 1 | ||||||
| 37 | 13-35048 | LOCKWASHER, (.375) | 1 | ||||||
| 38 | 11-46335 | NUT, (.375-24) | 1 |
