900 SC 1997-1999 - Serial 0K000858 Thru 0L602069 - Starter Motor And Alternator

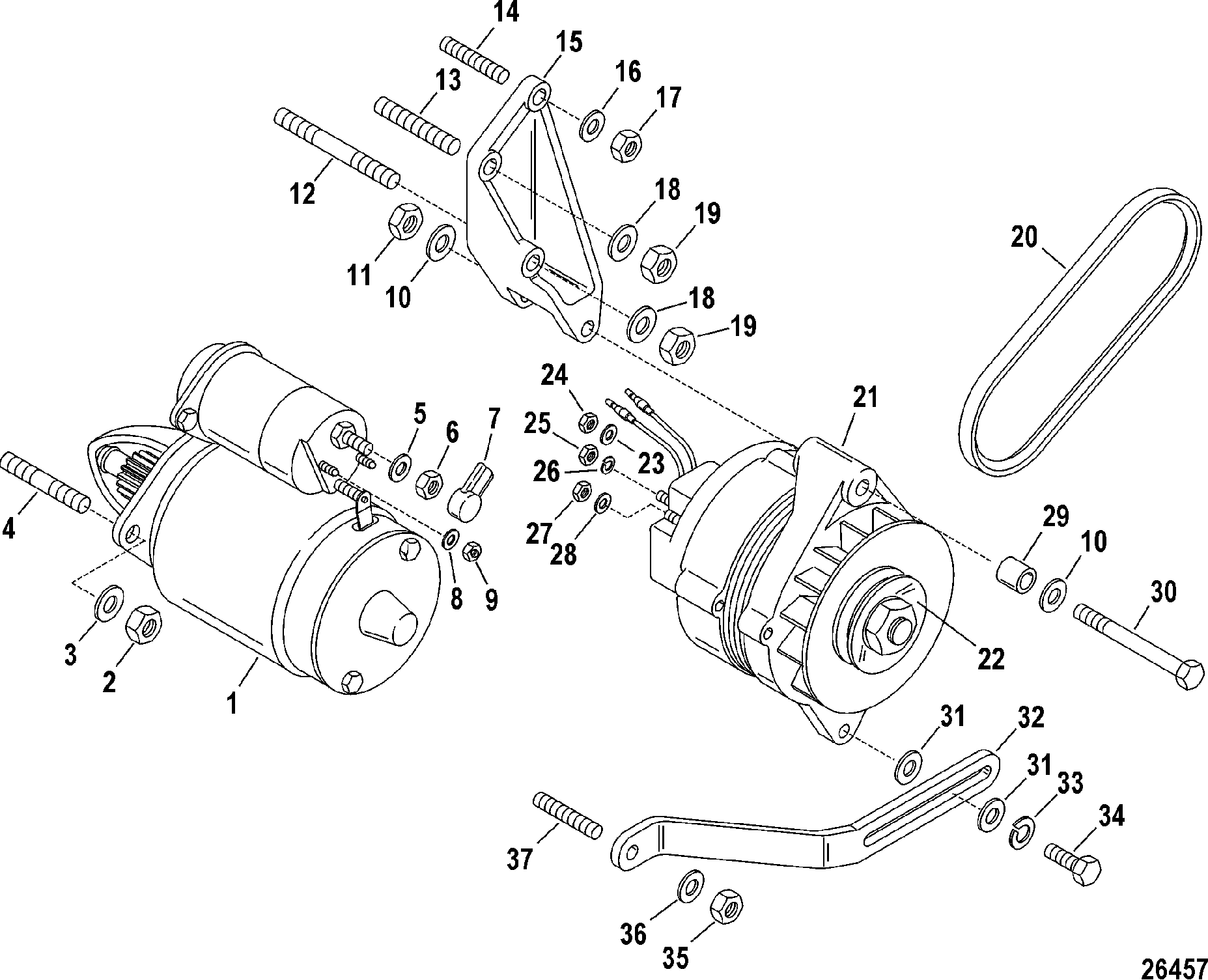

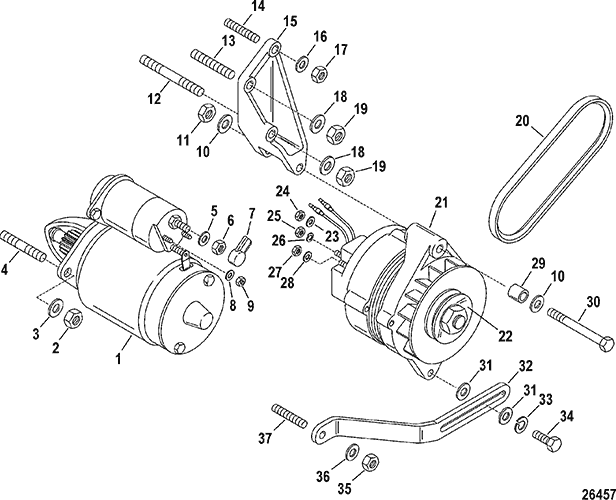

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Carburetor And Linkage
- Crankshaft - Piston - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Flywheel Housing
- Fuel Pump Assembly
- Intake Manifold And Front Cover
- Mount Plates
- Oil Pan And Oil Pump
- Power-Assisted Steering Pump Assembly
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Switches
- Starter Motor And Alternator
- Starter Motor Components (50-808011A1)
- Supercharger Assembly
- Supercharger Components
- Thermostat Housing And Oil Cooler
- Transmission And Components (Driveline)
- Transmission And Components (Plug In)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-808011A05 | STARTER MOTOR ASSEMBLY | 1 | 50-808011A1 | NOTE: See Starter Motor Components Section For Parts Breakdown | ||||
| 2 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 2 | 11-82671015 | Component Of Engine Gasket/Seal Set [27-840277A 1] | |||
| 3 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 4 | 16-57982 | STUD, (.437-14/.437-20 x 1.875) | 2 | ||||||
| 5 | 12-20086 | WASHER, (.390 x .620 x .060) | 1 | Component Of Partial Engine Assembly [849040A 7] | |||||
| 6 | 11-4013610 | NUT, (M10) Stainless Steel | 1 | ||||||
| 7 | 85-79695T | BOOT, Insulator - Black | 1 | 85-79695 | |||||
| 8 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 1 | ||||||
| 9 | 11-400263 | NUT, (M5) | 2 | This Part is No Longer Available | |||||
| 10 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 11 | 11-82671013 | NUT, (.375-24) | 1 | 11-34932 | |||||
| 12 | 16-57921 | STUD, (.437-14/.437-20 x 4.00) | 1 | ||||||
| 13 | 16-54674 | STUD, (.437-14/.437-20 x 2.250) | 1 | ||||||
| 14 | 16-64281 | STUD, (.375-16/.375-24 x 1.880) | 1 | This Part is No Longer Available | |||||
| 15 | 845843 | BRACKET, Alternator | 1 | This Part is No Longer Available | |||||
| 16 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 17 | 11-826709113 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 18 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 19 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 2 | 11-82671015 | ||||
| 20 | 57-97328Q | V BELT, Alternator | 1 | 57-97328 | This Part is No Longer Available | ||||
| 21 | 17399F1 | ALTERNATOR ASSEMBLY | 1 | This Part is No Longer Available - NOTE: Service Complete | |||||
| 22 | 939362 | PULLEY | 1 | ||||||
| 23 | 12-37998 | WASHER | 1 | ||||||
| 24 | 11-8267098 | NUT, (.250-20) Stainless Steel | 1 | ||||||
| 25 | 11-79989 | NUT, (#10-24) Stainless Steel | 2 | ||||||
| 26 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 27 | 11-21806 | NUT, (#10-24) | 1 | ||||||
| 28 | 12-847883 | WASHER, (.192 x .375 x .033) | 1 | ||||||
| 29 | 23-33186 | BUSHING | 1 | ||||||
| 30 | 10-67769 | SCREW, (.375-24 x 4.00) | 1 | This Part is No Longer Available | |||||
| 31 | 12-63032 | WASHER, (.320 x 1.00 x .120) Stainless Steel | 2 | ||||||
| 32 | 960981 | BRACE | 1 | ||||||
| 33 | 13-39107 | 700-21496 | LOCKWASHER, (.312) | 1 | |||||
| 34 | 10-55511 | SCREW, (.312-18 x 1.500) | 1 | This Part is No Longer Available | |||||
| 35 | 11-826709113 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 36 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 37 | 16-818824 | STUD, (.375-16/.375-24 x 1.590) | 1 |
