575 SCi - Serial 0M900000 Thru 0M950526 - Crankshaft - Piston And Coupler Components

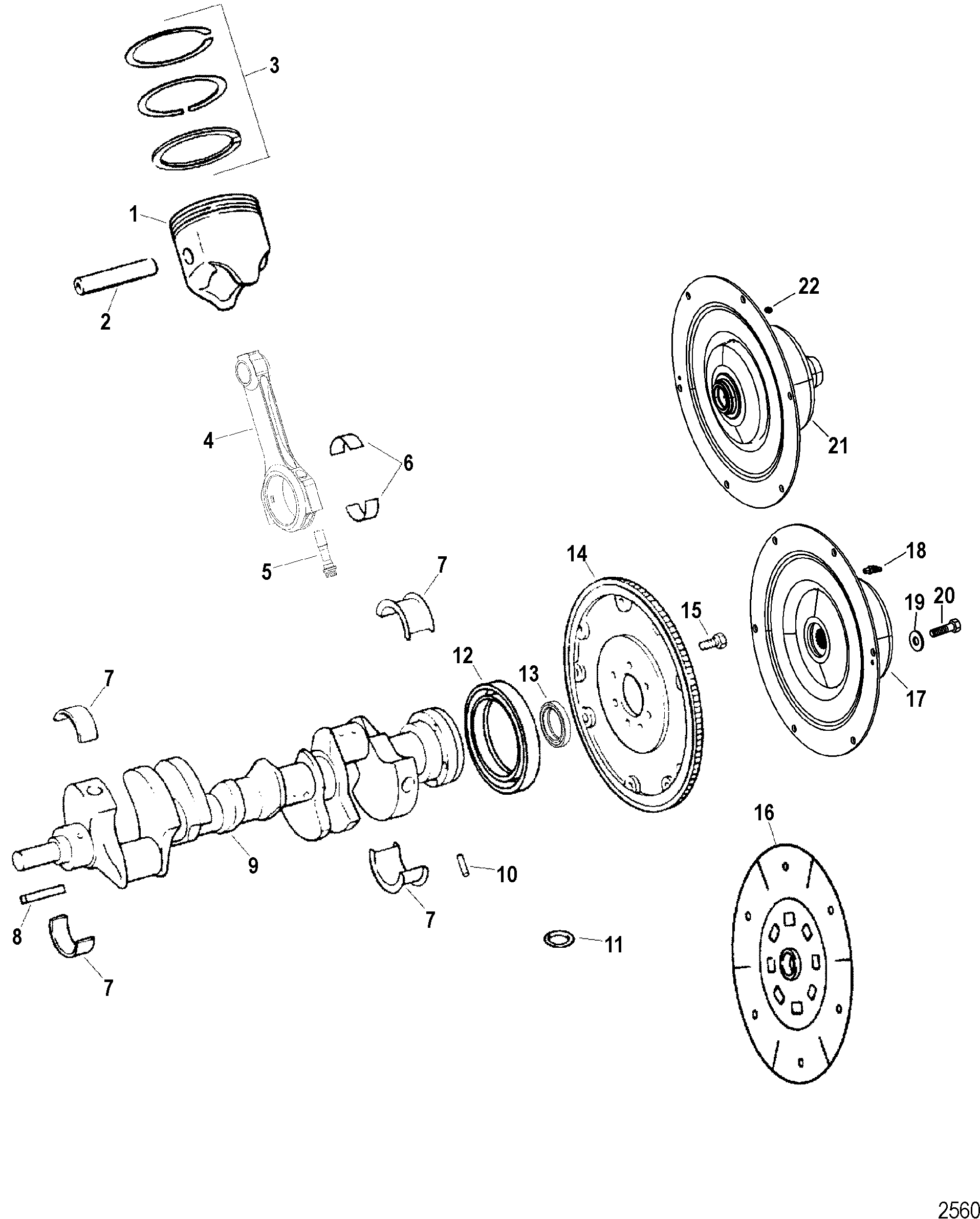

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Piston And Coupler Components
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft And Tailstock (Transmission)
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo Plug In)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul (27-842182A1)
- Harness Assembly (EFI Wiring)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Monitor Assembly (Drive Lube)
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (Design I)
- Power-Assisted Steering Components (Design II)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket Components (Bravo Design I)
- Shift Bracket Components (Bravo Design II)
- Starter And Alternator Mounting
- Starter Assembly
- Thermostat Housing
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 798-849022T1 | PISTON ASSEMBLY | 8 | Standard 5 | ||||||
| 1 | 798-841233T1 | PISTON ASSEMBLY | 8 | 0.034 Oversize | ||||||
| 2 | 41-848819T | PIN, Piston | 8 | 5 | ||||||
| 3 | 39-827660T | RING SET, Piston - Standard | 8 | 39-827660 | 5 | |||||
| 3 | 39-852935 | RING SET, Piston - .030 Oversize | 8 | This Part is No Longer Available | ||||||
| 4 | 614-8M8020323 | CONNECTING ROD ASSEMBLY | 8 | 614-845240T2 | 5 | |||||
| 5 | 10-8M0000838 | SCREW, Special | 16 | 10-843391 | 5 | |||||
| 6 | 23-8M0030217 | BEARING SET, Connecting Rod - Standard | 8 | 23-841447 | 5 | |||||
| 6 | 23-8M0030218 | BEARING SET, Connecting Rod - .001 Oversize | AR | 23-841448 | ||||||
| 6 | 23-8M0030216 | BEARING SET, Connecting Rod - .001 Undersize | AR | 23-841449 | ||||||
| 6 | 23-8M0030982 | BEARING SET, Connecting Rod - .010 Undersize | AR | 23-841450 | ||||||
| 7 | 8M0051198 | BEARING SET, Main - Standard | 1 | 23-842400 | 5 | |||||
| 7 | 8M0053743 | BEARING SET, Main - .001 Oversize | AR | 23-842401 | ||||||
| 7 | 23-842402 | BEARING SET, Main - .001 Undersize | AR | |||||||
| 7 | 23-8M0053549 | BEARING SET, Main - .010 Undersize | AR | 23-842403 | ||||||
| 8 | 28-845607 | KEY, Crankshaft | 1 | 5 | ||||||
| 9 | 429-843083T | CRANKSHAFT | 1 | SN# 0M900000 THRU 0M950278 5 | ||||||
| 9 | 400-842271T01 | CRANKSHAFT ASSEMBLY | 1 | SN# 0M950279 THRU 0M950526 5 | ||||||
| 10 | 17-43504 | PIN, Dowel | 1 | NOTE: Used With Crankshaft | 400-842271T01 5 | |||||
| 10 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250) | 1 | 17-35312 | NOTE: Used With Crankshaft | 429-843083T 5 | ||||
| 11 | 25-69756 | O-RING, (.549 x .103), Number 5 Bearing Cap Oil Hole | 1 | 2,5 | ||||||
| 12 | 26-811554 | 676-9-61622 | SEAL, Oil | 1 | 2,5 | |||||
| 13 | 23-823108 | BUSHING, Crankshaft Pilot, Driveline Models Only | 1 | 5 | ||||||
| 14 | 230-843374T1 | FLYWHEEL | 1 | 5 | ||||||
| 15 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 5 | ||||||
| 16 | 8M0051206 | DRIVEPLATE ASSEMBLY, Six Drive Models | 1 | 816618 | ||||||
| 17 | 861523A9 | 676-9-72503 | 525-861523A9 | COUPLER ASSEMBLY, Engine - Short Aluminium Hub | 1 | Version I - Driveline Models | ||||
| 17 | 861523A18 | COUPLER ASSEMBLY, Engine - Short Steel Hub | 1 | Version II - Driveline Models | ||||||
| 18 | 22-49099 | FITTING | 2 | |||||||
| 19 | 12-20572 | WASHER, (.390 x .750 x .093) | 6 | |||||||
| 20 | 10-35091 | SCREW, (.375-16 x 1.00) | 6 | |||||||
| 21 | 861523A7 | COUPLER ASSEMBLY, Engine - Long Steel Hub | 1 | Bravo Models | ||||||
| 22 | 22-74036 | FITTING, Grease | 1 | |||||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
