525 SC (Gen 6) - Serial 0K000012 Thru 0L415623 - Thermostat Housing

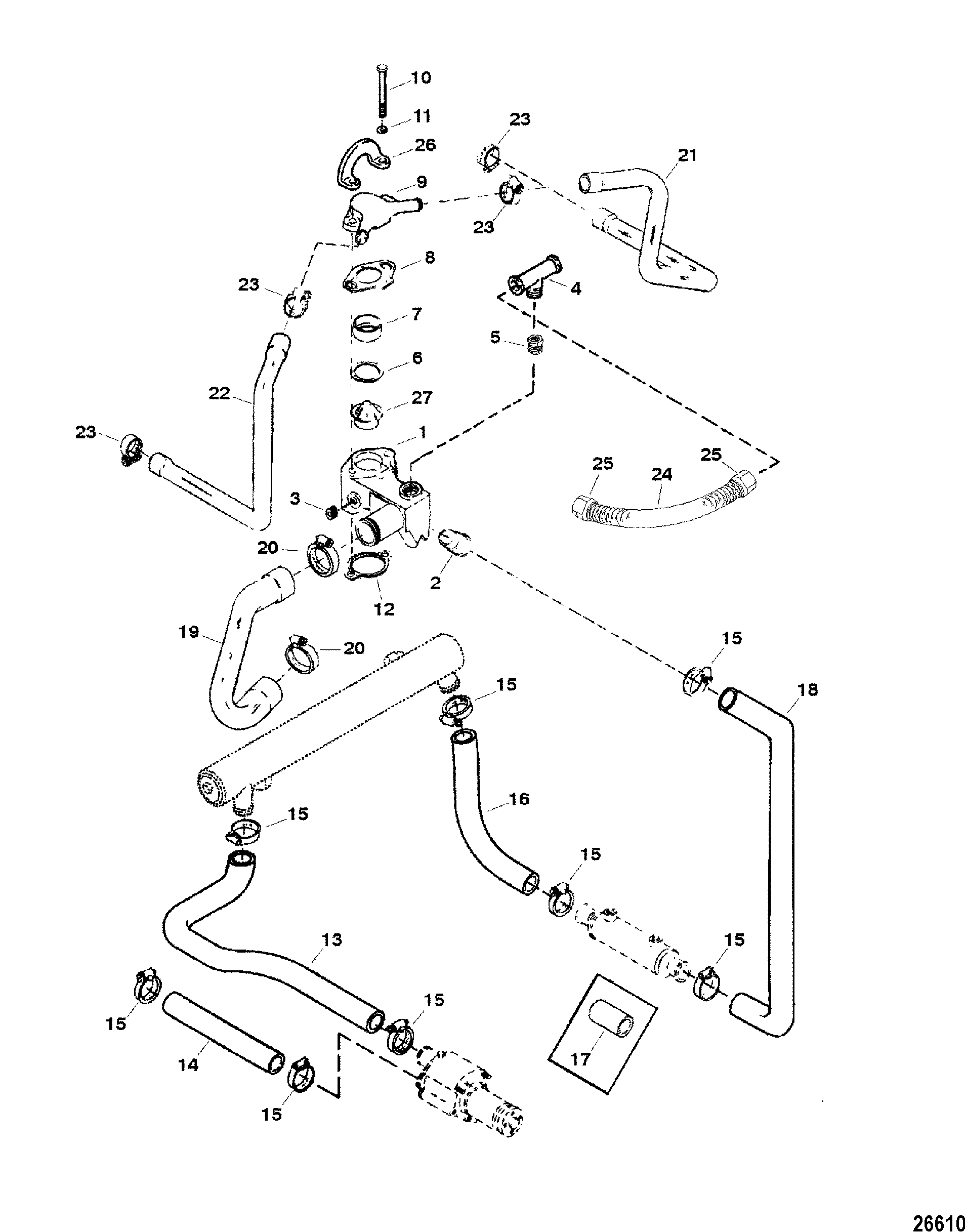

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando #AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 817131A1 | HOUSING ASSEMBLY, Thermostat | 1 | This Part is No Longer Available - NOTE: With Temperture Sender 97257A1 | |||||
| 2 | 23-47511 | SLEEVE | 1 | ||||||
| 3 | 22-36373 | PLUG, Hex Steel (.375-18) | 1 | ||||||
| 4 | 22-98477A2 | VALVE ASSEMBLY | 1 | ||||||
| NS | 30-98475 | BALL, Nylon | 2 | ||||||
| NS | 24-75533 | SPRING | 2 | ||||||
| NS | 11-29488 | 700-21163 | NUT, (#10-32) | 1 | No longer made, limited availability | ||||
| 5 | 22-847768 | FITTING, Adaptor | 1 | This Part is No Longer Available | |||||
| 6 | 27-47510 | 676-9-60005 | 700-31460 | GASKET, Thermostat | 1 | 2 | |||
| 7 | 23-47508T | SLEEVE, Thermostat | 1 | 23-47508 | |||||
| 8 | 27-418122 | GASKET, Thermostat Cover | 1 | 2 | |||||
| 9 | 47441A1 | COVER, Thermostat | 1 | ||||||
| 10 | 10-14164 | SCREW, (.375-16 x 4.37) | 2 | ||||||
| 11 | 12-20553 | WASHER, (.406 x .734 x .063) | 2 | ||||||
| 12 | 27-530451 | GASKET, Thermostat Housing | 1 | 2 | |||||
| 13 | 32-848178 | HOSE, Pump To Cooler | 1 | ||||||
| 14 | 32-1743565 | HOSE, (38.00 Inches Bulk), Cut As Required - Sea Pump To Drive Unit | 1 | Plug In Models | |||||
| 14 | 32-13556A1 | HOSE KIT, (10.00 Feet), Cut As Required | 1 | Driveline Models | |||||
| 15 | 54-180765 | CLAMP, Worm Gear | 2 | ||||||
| 15 | 54-180766 | CLAMP, Worm Gear | 8 | Plug In Models | |||||
| 16 | 32-848956 | HOSE, Molded, Oil Cooler To Oil Cooler | 1 | ||||||
| 17 | 22-13177 | TUBE, Water Hose | 1 | Non Power Steering | |||||
| 18 | 32-816344 | HOSE, Oil Cooler To Thermostat Housing | 1 | This Part is No Longer Available | |||||
| 19 | 847677A01 | HOSE, Thermostat Housing To Water Pump | 1 | 32-822524 | |||||
| 20 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 21 | 32-816347 | HOSE, Thermostat Cover | 1 | Port | |||||
| 22 | 32-848957 | HOSE, Thermostat Cover | 1 | Starboard | |||||
| 23 | 54-180764 | CLAMP, Worm Gear | 4 | ||||||
| 24 | 32-847764A1 | HOSE ASSEMBLY, (22.00 Inches) Stainless Steel Braided | 1 | Port SN# 0F745260 THRU 0F877734 | |||||
| 24 | 32-847764A2 | HOSE ASSEMBLY, (17.00 Inches) Stainless Steel Braided | 1 | This Part is No Longer Available - Starboard SN# 0F745260 THRU 0F877734 | |||||
| 24 | 32-847764A1 | HOSE ASSEMBLY, (22.00 Inches) Stainless Steel Braided | 2 | Port And Starboard SN# 0K000012 THRU 0L415623 | |||||
| 25 | 54-84775218 | CLAMP/HOSE COVER, Hose | 4 | ||||||
| 26 | 12552 | LIFTING EYE | 1 | ||||||
| 27 | 807252T1 | THERMOSTAT, 140 Degrees | 1 | 8072521 | |||||
| - | 27-827014A98 | GASKET SET, Engine Overhaul | 1 | 27-827014A97 |
