525 SC (Gen 6) - Serial 0F745260 Thru 0F877734 - Flywheel Housing (Bravo Plug In Models)

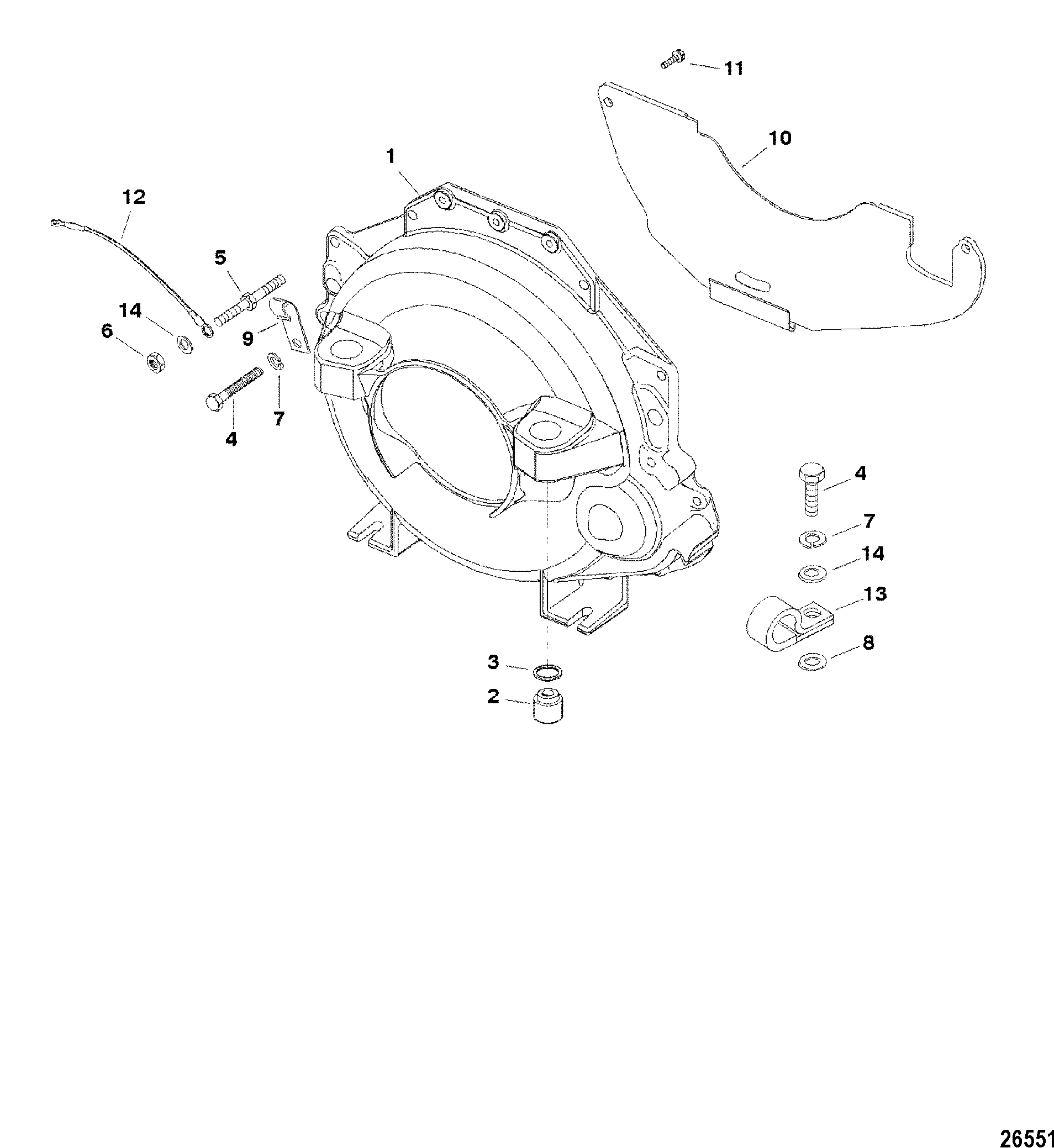

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo Models)
- Electrical Components (0F745260 Thru 0F877734)
- Electrical Components (0K000012 Thru 0L415623)
- Exhaust Block Off Plate
- Exhaust Header-Tailpipe (0K000012 Thru 0L415623)
- Exhaust Manifold-Elbow (0F745260 Thru 0F877734)
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-808011A1) (Driveline)
- Starter Assembly (50-8M8021116) (Bravo Plug In)
- Thermostat Housing
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A04 | HOUSING ASSEMBLY, Flywheel | 1 | 12675A7 | |||||
| 2 | 865330A02 | MOUNT, Rubber | 2 | 88791 | |||||
| 3 | 23-99322 | SPACER, Rubber Mount | 2 | ||||||
| 4 | 10-37612 | SCREW, (.375-16 x 1.250) | 3 | ||||||
| 4 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
| 5 | 16-64066 | STUD, (.375-16 x 2.750) Special | 2 | ||||||
| 6 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 7 | 13-35048 | LOCKWASHER, (.375) | 8 | ||||||
| 8 | 12-20572 | WASHER, (.390 x .750 x .093) | 1 | ||||||
| 9 | 54-78945 | J CLAMP, Flywheel Housing Stud | 2 | ||||||
| 10 | 807260A2 | COVER KIT | 1 | 818719A3 | Steel SN# 0F745260 THRU 0F877734 | ||||
| 10 | 807260A2 | COVER KIT, Flywheel | 1 | Plastic SN# 0K000012 THRU 0L415623 | |||||
| 11 | 10-76596 | SCREW, (.250-20 x 1.250) | 2 | SN# 0K000012 THRU 0L415623 | |||||
| 11 | 10-32773 | SCREW, (.250-20 x .875) | 7 | SN# 0F745260 THRU 0F877734 | |||||
| 12 | 84-62826A6 | CABLE ASSEMBLY, Ground - Black (13.00 Inches) | 2 | ||||||
| 13 | 54-62494 | CLIP, Water Hose | 1 | ||||||
| 14 | 12-20553 | WASHER, (.406 x .734 x .063) | 5 |
