525 SC GM 454 V-8 1991-1992 - Serial 0D456000 Thru 0F348963 - Intake Manifold and Supercharger

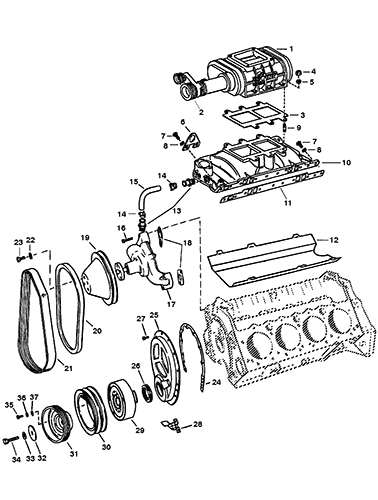

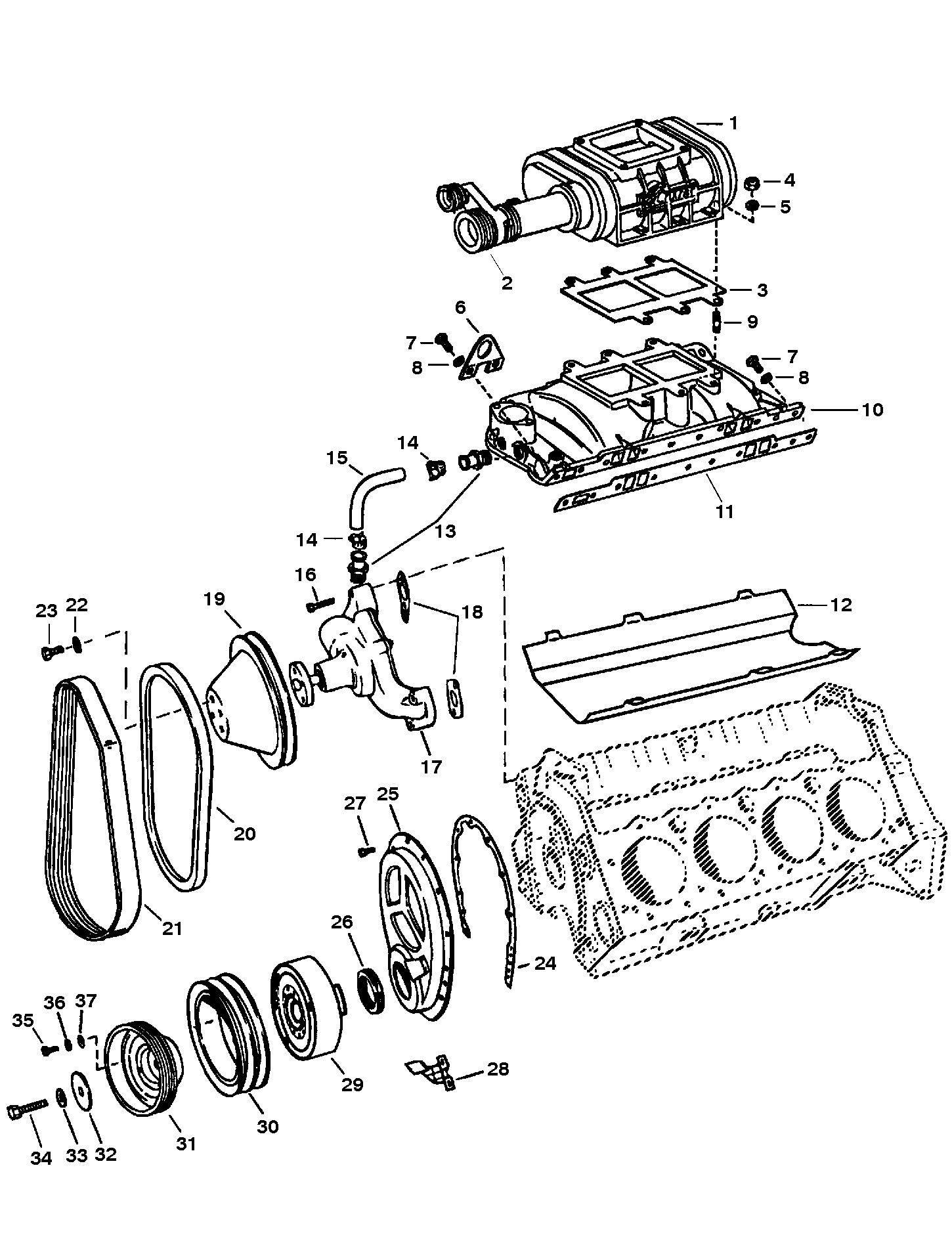

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando Ac-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 817116A3 | SUPERCHARGER KIT | 1 | 817116A1 | |||||
| 2 | 8477111 | PULLEY-Upper Driven | 1 | This Part is No Longer Available | |||||
| 3 | 27-8171181 | GASKET-Intake to Supercharger | 1 | 14 | |||||
| 4 | 11-28770 | NUT (.312-24) | 6 | ||||||
| 5 | 12-70132 | WASHER | 6 | ||||||
| 6 | 54-64628 | LIFTING EYE | 2 | 54-646281 | |||||
| 7 | 10-812567 | BOLT (.375-16 x 1.625) | 8 | ||||||
| 7 | 10-815687 | BOLT (.375-16 x 1.250) | 7 | ||||||
| 7 | 10-842787 | SCREW (.375-16 x 2.00) | 1 | 10-47432 | |||||
| 8 | 12-34931 | WASHER | 16 | ||||||
| 9 | 16-33111 | STUD | 6 | This Part is No Longer Available | |||||
| 10 | 848582T02 | MANIFOLD-Intake | 1 | 817115 | |||||
| 11 | 27-8181881 | GASKET-Intake Manifold | 2 | 27-818188 | 14 | ||||
| 12 | 845756T | SHIELD-Oil Intake | 1 | 816073 | |||||
| 13 | 22-806242 | CONNECTOR-Intake Pump/Intake Manifold | 2 | ||||||
| 14 | 54-815504412 | CLAMP-By Pass Hose | 2 | ||||||
| 15 | 32-805987 | HOSE-By Pass-Water Pump/Intake Manifold | 1 | ||||||
| 16 | 10-805611 | SCREW (.375-16 x 1.750)-Water Pump to Cylinder Block | 4 | 10-811574 | |||||
| 17 | 8504541 | PUMP ASSEMBLY-Water | 1 | 811573 | |||||
| 18 | 27-49110 | GASKET-Water Pump Mounting | 2 | 14 | |||||
| 19 | 52349 | PULLEY-Water Pump (BLACK) | 1 | ||||||
| 19 | 523491 | PULLEY-Water Pump (BLUE) | 1 | This Part is No Longer Available | |||||
| 20 | 57-816034Q | V BELT-Alternator Drive | 1 | 57-816034 | |||||
| 21 | 57-817113 | BELT-Serpentine | 1 | ||||||
| 22 | 13-39107 | 700-21496 | LOCKWASHER (.312)-Water Pump Pulley Screw | 4 | |||||
| 23 | 10-47277 | SCREW (.312-24 x .750)-Pulley to Water Pump | 4 | ||||||
| 24 | 27-54529 | 676-9-61601 | 700-30440 | GASKET-Crankcase Cover | 1 | (S/N: 0D456000 - 0D725808) 14,5 | |||
| 24 | 27-811572 | GASKET-Crankcase Cover | 1 | (S/N: 0D763746 - 0F348963) 14,6 | |||||
| 25 | 66215 | COVER ASSEMBLY-Crankcase | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| 25 | 811570 | COVER ASSEMBLY-Crankcase | 1 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 | |||||
| 26 | 26-8219471 | SEAL-Oil-Crankcase Cover | 1 | 14 | |||||
| 27 | 10-35366 | SCREW (.250-20 x .562)-Crankcase Cover to Block | 10 | ||||||
| 28 | 59966 | POINTER-Timing | 1 | ||||||
| 29 | 72605T1 | DAMPER | 1 | 726051 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | ||||
| 29 | 845625T2 | DAMPER | 1 | 811556 | (S/N: 0D763746 - 0F348963) 6 | ||||
| 30 | 52181 | PULLEY-Harmonic Balancer | 1 | (S/N: 0D456000 - 0D725808) 5 | |||||
| 31 | 817112 | PULLEY-Crankshft (BLACK) | 1 | This Part is No Longer Available (S/N: 0D456000 TO 0D725808) 5 | |||||
| 31 | 8219811 | PULLEY-Crankshaft (BLUE) | 1 | This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 | |||||
| 32 | 12-49103 | WASHER-Pulley and Balancer Screw | 1 | ||||||
| 33 | 13-14759 | LOCKWASHER-Pulley and Harmonic Balancer Screw | 1 | This Part is No Longer Available | |||||
| 34 | 10-817125 | SCREW (.500-20 x 4.00) | 1 | This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 | |||||
| 34 | 10-845627 | SCREW (.500-20 x 1.375) | 1 | 10-811559 | (S/N: 0D763746 - 0F348963) 6 | ||||
| 35 | 10-72094 | SCREW (.375-16 x 3.750)-Pulley | 3 | ||||||
| 36 | 13-35048 | LOCKWASHER (.375)-Pulley Screw | 3 | ||||||
| 37 | 12-20553 | WASHER-Pulley Screw | 3 | ||||||
| - | 27-817118A90 | Gasket Set | - | This Part is No Longer Available | |||||
| - | 27-827014A98 | Gasket Set | - | 27-827014A92 |
