525 EFI - Serial 0M900146 Thru 0M953619 - Engine Components (Cylinder Head)

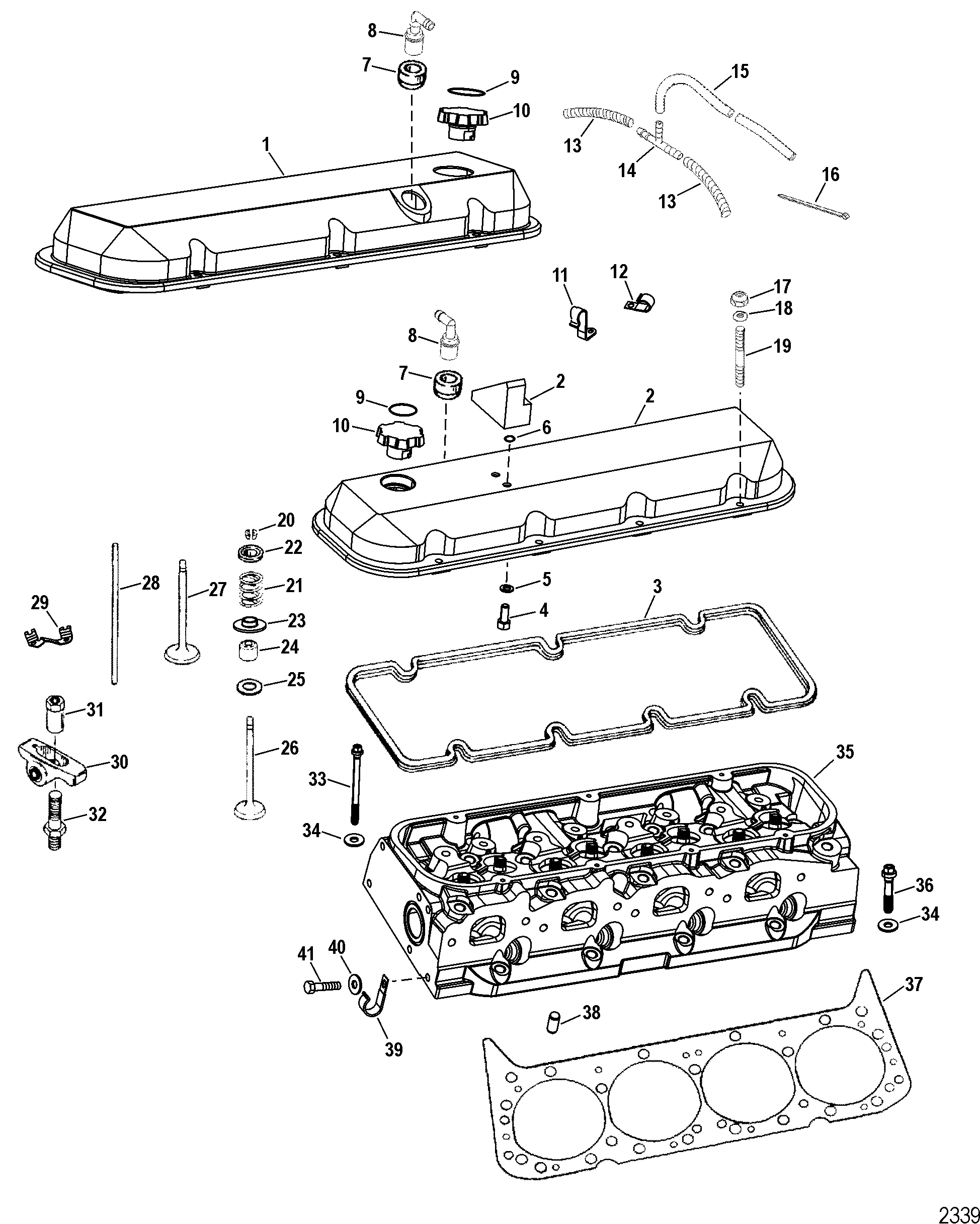

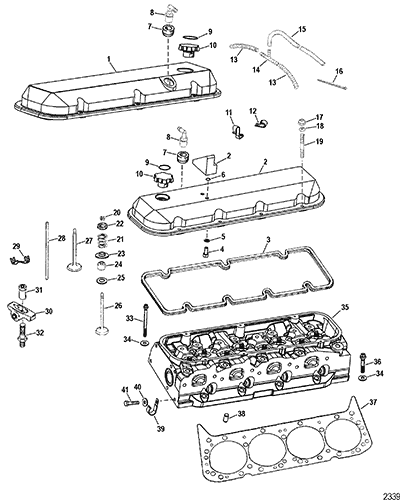

Section Drawing: (Hover or click to view larger)
