5.7LX EFI (4 BBL-TBI) GM 350 V-8 1997 - Serial 0K001506 Thru 0K999999 - Mercathode Components

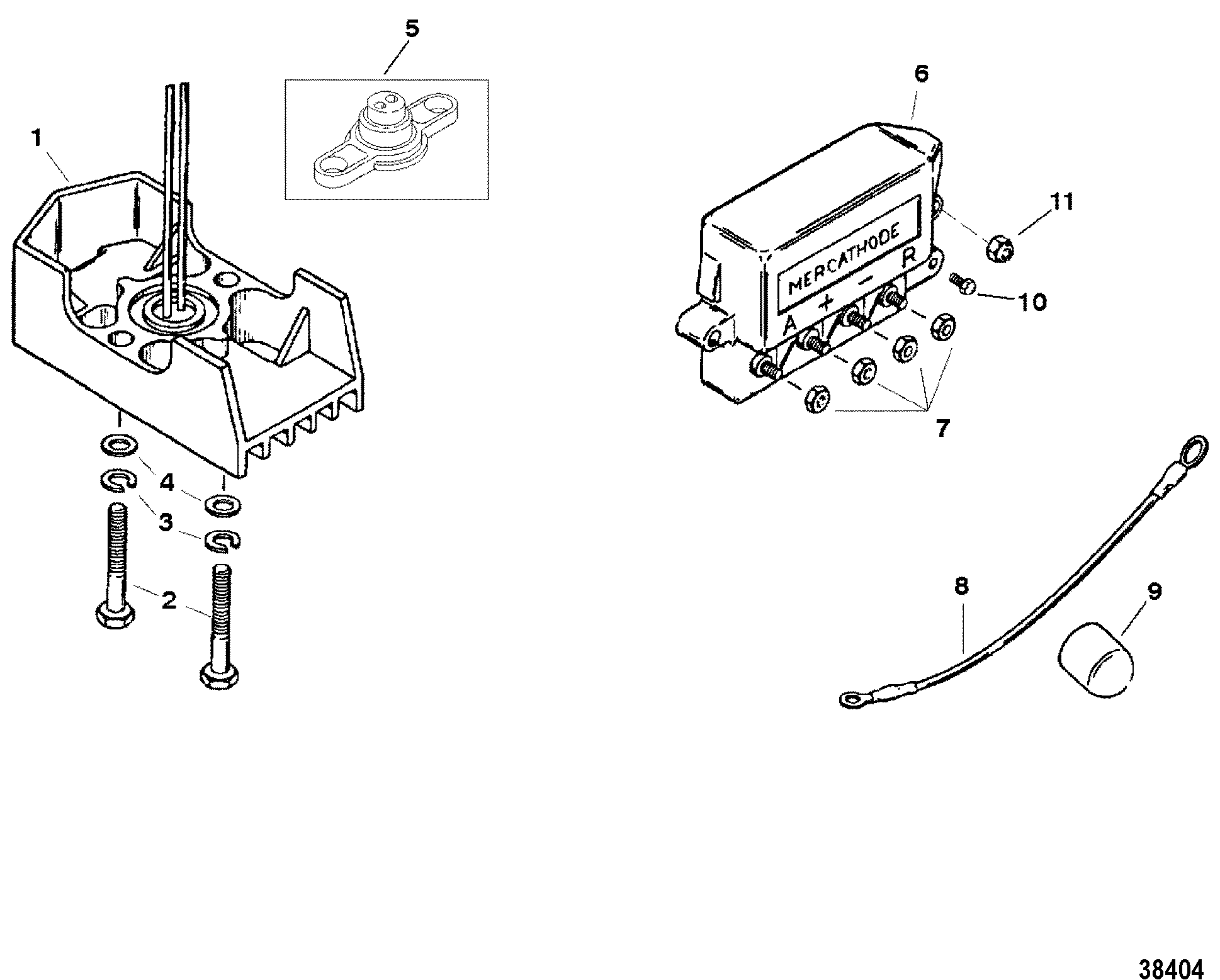

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 98869A17



ELECTRODE ASSEMBLY 1 98869A11
2 10-69067



SCREW, (.250-20 x 1.375) 2

3 13-26992



LOCKWASHER, (.250) Stainless Steel 2

4 12-29245

700-21490

WASHER, (.281 x .500 x .060) Stainless Steel 2

5 25-805294



GROMMET 1

6 42600A09



CONTROLLER ASSEMBLY 1 42600A3
7 11-68219



NUT, (#10-32) Stainless Steel 4

8 84-88543A3



CABLE ASSEMBLY 1

9 44574T



CAP 2 44574
10 10-62568



SCREW, (#10-16 x .375) 1

11 11-805562



NUT, (#10-24) 2
