5.7L Bravo EFI (TBI) GM 350 V-8 1995 - Serial 0F225560 Thru 0F752399 - Oil Pan And Oil Pump

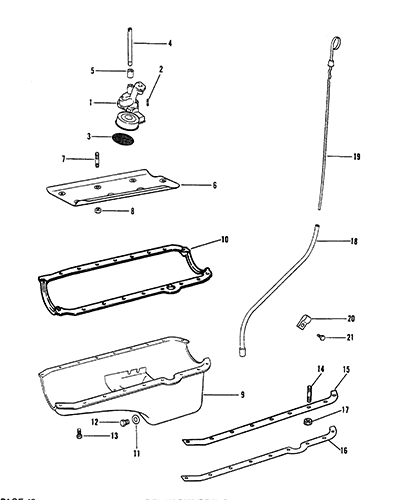

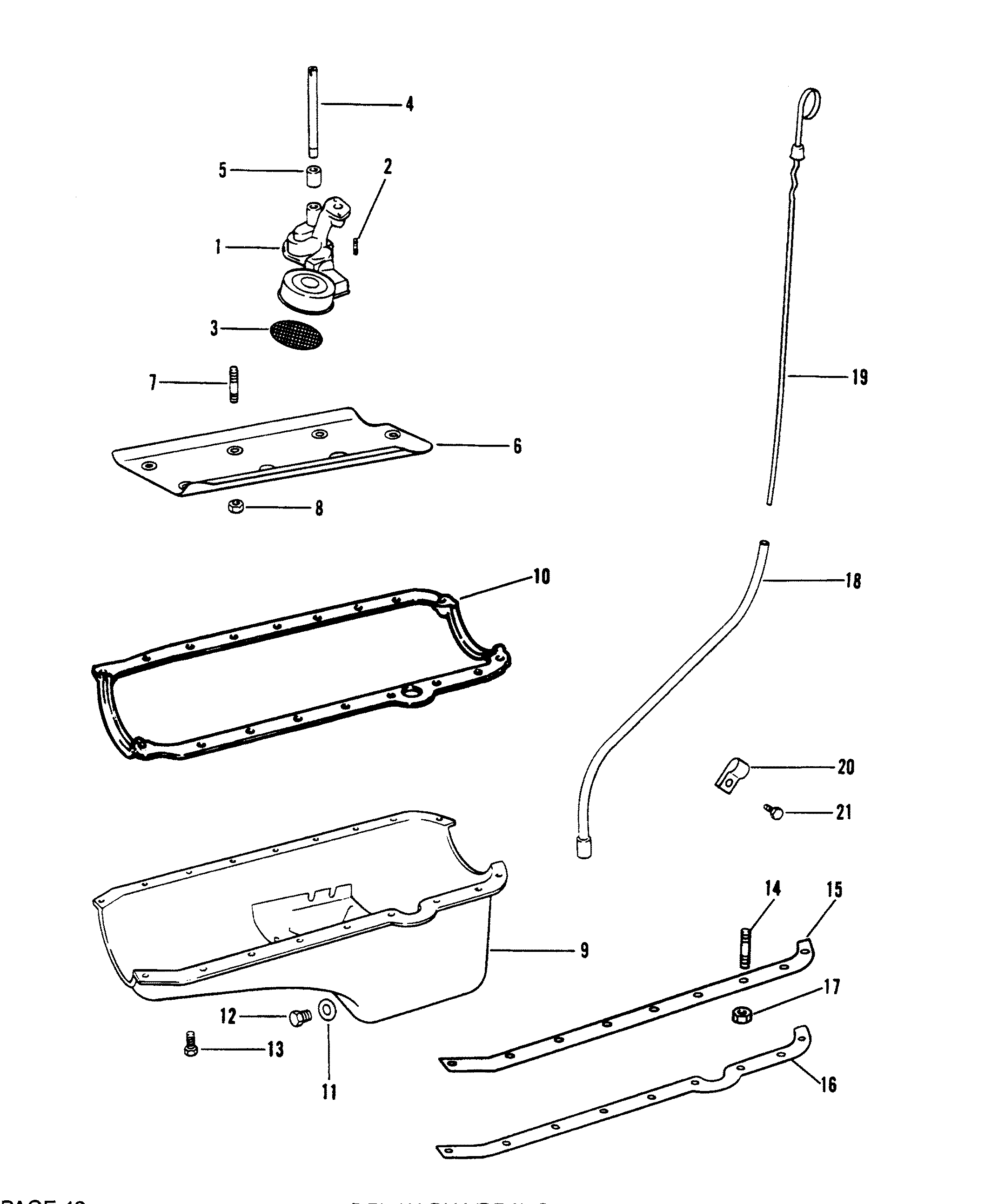

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 17617



OIL PUMP 1

2 10-17346



BOLT 1

3 35354



SCREEN ASSEMBLY 1
This Part is No Longer Available No longer made, limited availability
4 36184



SHAFT 1

5 23-36183



RETAINER 1

6 986021



BAFFLE (CYLINDER BLOCK) 1 98602
7 16-54790



STUD 5

8 11-37500



NUT 5

9 809910



OIL PAN 1 14259
10 27-138651
676-9-61504

GASKET 1 27-13865
11 27-8M0077608



GASKET 1 27-49955
12 10-49956



SCREW 1

13 10-14070



SCREW 14

14 16-11989



STUD 4

15 14257



REINFORCEMENT (PORT) 1

16 14256



REINFORCEMENT (STARBOARD) 1

17 11-11971



NUT 4

18 15296A2



TUBE 1

19 861942T7



DIPSTICK GAUGE 1 15297T
20 54-805625



CLIP 1

21 10-35366



SCREW 1
