5.7L Alpha EFI (TBI) GM 350 V-8 1995 - Serial 0F355305 Thru 0F752389 - Throttle Body

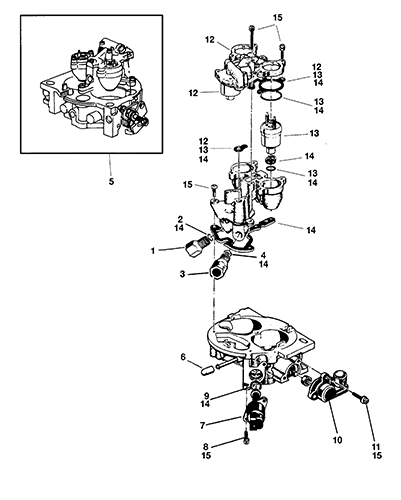

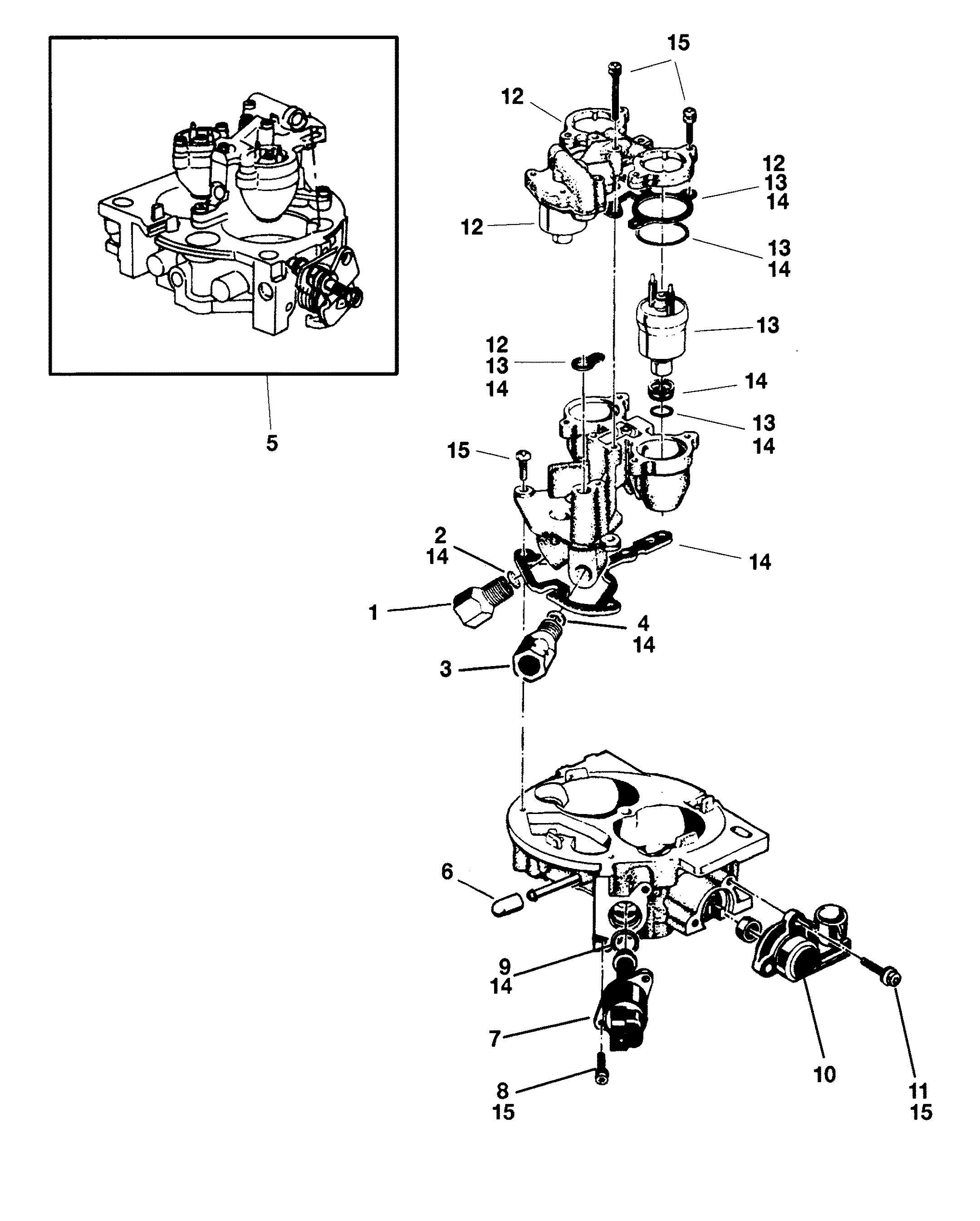

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-806653A1



FITTING ASSEMBLY (INLET) 1

2 26-806655



SEAL  1

3 22-806654A1



FITTING ASSEMBLY (OUTLET) 1
This Part is No Longer Available
4 26-806706



SEAL  1

5 860320A1



THROTTLE BODY 1 806898A1 This Part is No Longer Available
6 806899



PLUG  1

7 805224A1
676-9-33401


IAC MOTOR  1

8 10-805400



SCREW  2

9 25-808547



O-RING  1

10 805226A1
676-9-33701


TPS SENSOR  1

11 10-805400



SCREW  2

12 852955



REGULATOR KIT - FUEL PRESSURE  1
This Part is No Longer Available No longer available
13 852956A1



INJECTOR KIT  1

14 27-852957


676-9-33305
or
676-9-33106 GASKET KIT - OVERHAUL  1
This Part is No Longer Available
15 10-852958



SCREW KIT  1
