5.7L (2 BBL) GM 350 V-8 1997 - Serial 0K001527 Thru 0K999999 - Cylinder Block And Camshaft (350 C.I.D. Flat Lifters)

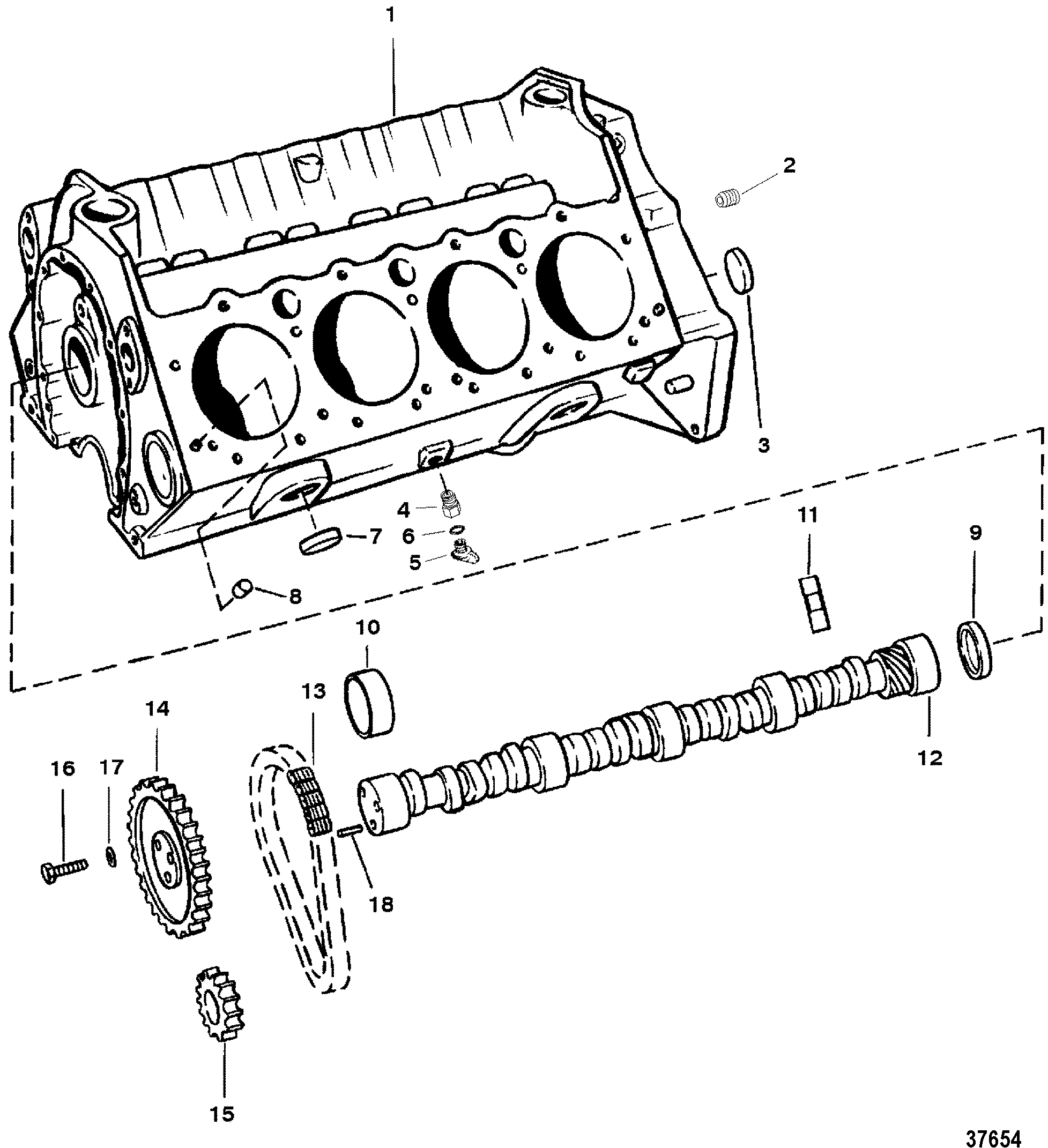

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 NSS         NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY 1
This Part is not sold separately (Order Long Block 807315A1) 1
2 22-48340         PLUG, (.250-18 x .41) 3

3 19-816565         PLUG, Pipe(.468) 5

4 22-860088         BUSHING 2

5 22-806608A02         PLUG KIT, (.500-13) Royal Blue 2 22-806608A1
6 25-32509         QUAD RING 2 25-806609
7 19-34270         EXPANSION PLUG, (1.625) 8

8 17-35465         PIN, Dowel (.312) 4

9 22-72640         PLUG, Expansion (REAR CAMSHAFT) 1

10 23-85674         BEARING SET 1

11 72638         LIFTER 16

12 431-5943         CAMSHAFT 1

13 17161T         CHAIN, Timing 1 17161
14 43-17159         SPROCKET 1   This Part is No Longer Available
15 43-17160         SPROCKET, Crankshaft 1

16 10-845942         SCREW, (.312-18 x .750) 3 10-35339
17 12-848136         WASHER, (.328 x .680 x .190) 3

18 17-843378         PIN, Dowel (1/4 n. Diameter) 1 17-35312
- 883944R5         MARINE LONG BLOCK ENGINE 1 807315A1 (2 BBL. CARBURETOR)
- 92-809825         RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE) 1

- 34227Q02         SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE) 1 92-342271
