5.0LX (4 BBL) GM 305 V-8 1988-1995 - Serial 0B773740 Thru 0F600999 - Exhaust System

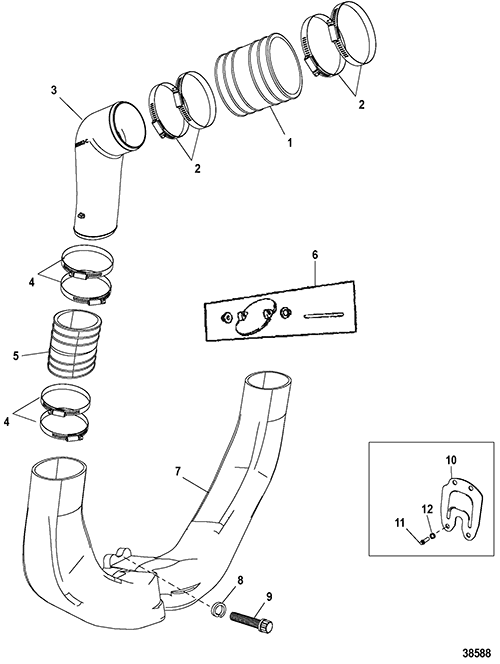

Section Drawing: (Hover or click to view larger)

Return To Parts Finder

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0032 44348T TUBE Exhaust   2
2 0054 OEM: 525-54-815504372, GLM: 700-01100 CLAMP Worm Gear   8
3 0000 14478T ELBOW Exhaust   2
4 0054 OEM: 525-54-815504372, GLM: 700-01100 CLAMP Worm Gear   8
5 0032 14358T TUBE   2
6 0000 14348A1 SHUTTER ASSEMBLY Water   1
7 0000 44266T1 PIPE Exhaust   1
8 0010 OEM: 525-10-58640 SCREW (.375-16 x 1.25)   4
9 0013 OEM: 525-13-41471 LOCKWASHER (.375)   4
10   NA NOT AVAILABLE Not sold with this model   0
11   NA NOT AVAILABLE Not sold with this model   0
12   NA NOT AVAILABLE Not sold with this model   0
