5.0L EFI GM 305 V-8 1998 - Serial 0L012052 Thru 0L339999 - Senders And Sensors

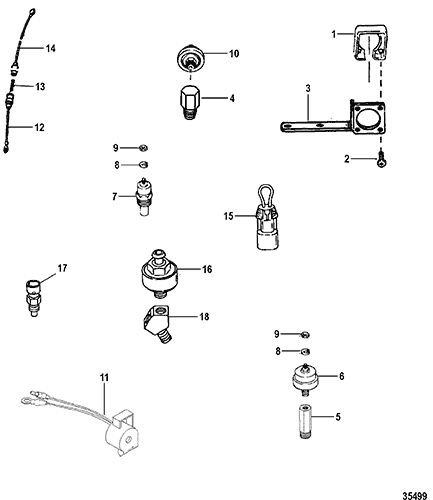

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Blacktrac Transmission
- Closed Cooling System
- Crankshaft And Flywheel
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing (With Blacktrac)
- Flywheel Housing (Without Blacktrac)
- Fuel Filter
- Fuel Pump And Fuel Cooler
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System
- Starter Motor And Alternator
- Throttle Body
- Throttle Linkage
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 26079A2 | PLATE KIT, Wire Harness Mount | 1 | ||||||
| 2 | 10-15001 | SCREW, (#8-16 x .875) | 4 | ||||||
| 3 | 805383T | BRACKET, Harness Mounting | 1 | ||||||
| 4 | 22-8053281 | FITTING, Elbow (90 Degree - .125) | 1 | ||||||
| 5 | 22-805059 | FITTING | 1 | ||||||
| 6 | 8M0068784 | SENDER ASSEMBLY, Oil Pressure | 1 | 815425 | |||||
| 6 | 37293T | SENDER ASSEMBLY, Oil Pressure (DUAL STATION) | OPT. | 37293 | 4 | ||||
| 7 | 806490T | SENDER ASSEMBLY, Water Temperature | 1 | 97257A1 | |||||
| 7 | 49734 | SENDER (DUAL STATION) | OPT. | 4 | |||||
| 8 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 9 | 11-68219 | NUT, (#10-32) Stainless Steel | 2 | ||||||
| 10 | 87-805605A1 | SWITCH ASSEMBLY | 1 | ||||||
| 11 | 816492A6 | ALARM KIT | 1 | ||||||
| 12 | 84-95084A9 | CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip | 1 | BRAVO ENGINES | |||||
| 13 | 88-79091 | FUSE, 20 Ampere (20 AMP) | 1 | BRAVO ENGINES | |||||
| 14 | 84-95084A10 | CABLE ASSEMBLY, (5.00 Inches) Red | 1 | BRAVO ENGINES | |||||
| 15 | 805592A1 | CONNECTOR ASSEMBLY | 1 | BRAVO ENGINES | |||||
| 16 | 806612T | SENSOR, Knock | 1 | ||||||
| 17 | 805218T | 676-9-42402 | SENSOR | 1 | |||||
| 18 | 22-8067051 | FITTING, Dual | 1 |
