454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Carburetor And Linakge

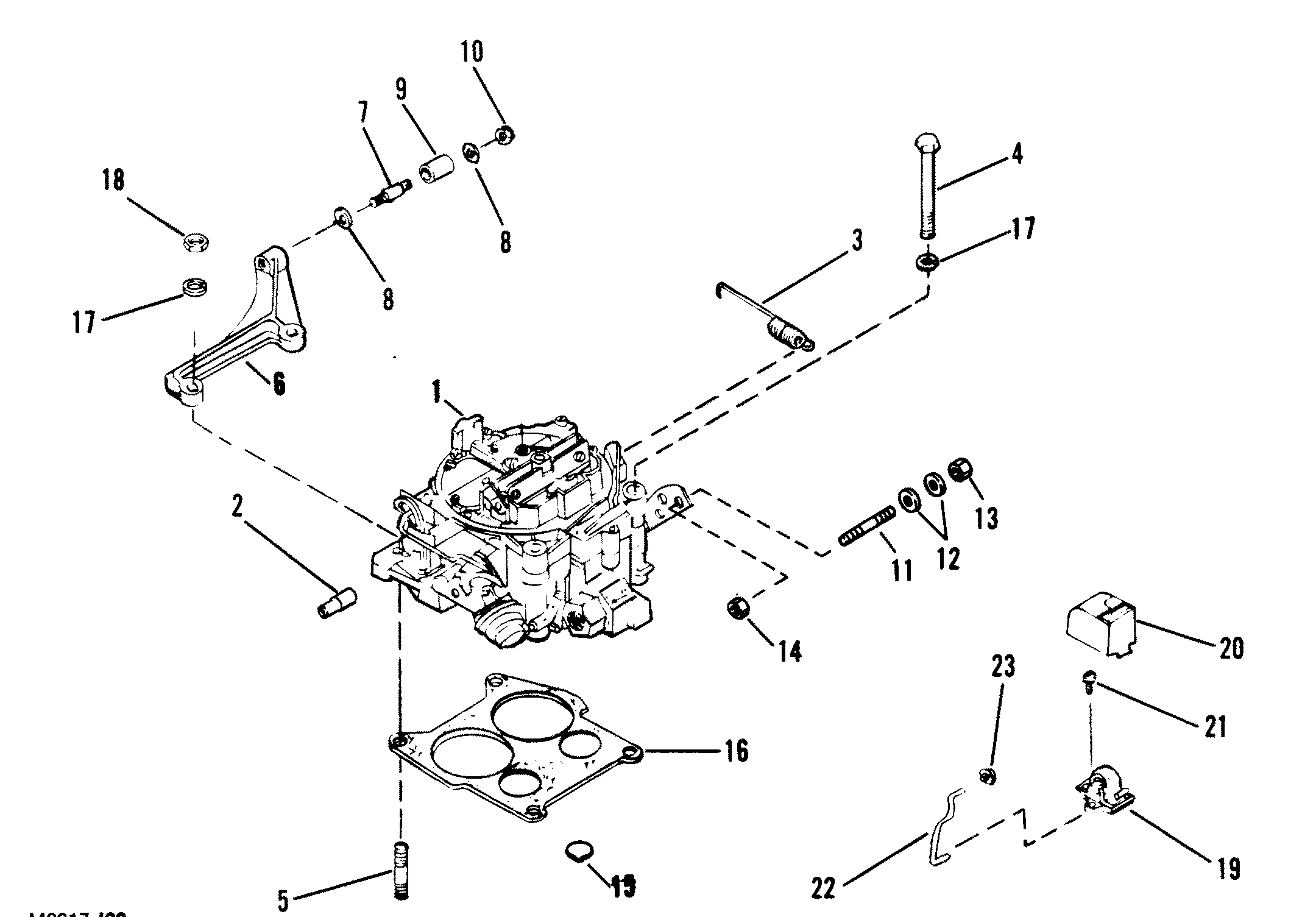

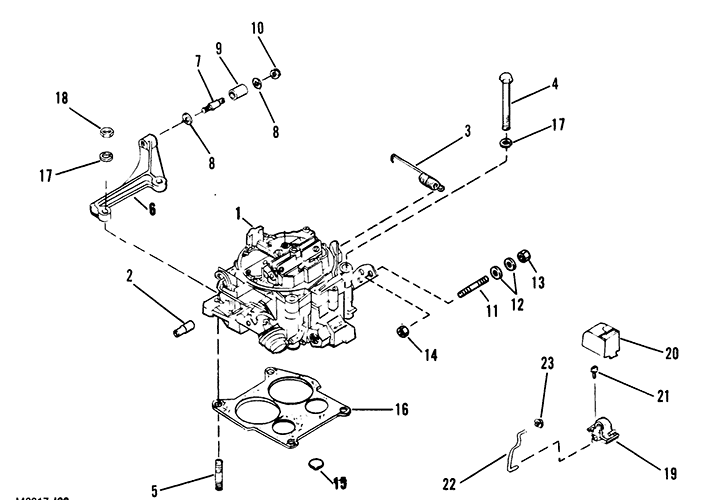

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator (Motorola) Motorola 8Em20039K
- Alternator (Motorola) Motorola 8Mr2039K
- Audio Warning System
- Carburetor
- Carburetor And Linakge
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flame Arrestor (New Design)
- Flame Arrestor (Old Design)
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Oil Filter And Adapter
- Oil Pan And Oil Pump
- Power Steering Components
- Shift Bracket (New Design)
- Shift Bracket (New Design With Spring Guide)
- Shift Bracket(Old Design)
- Starter And Alternator
- Starter Motor
- Thermostat Housing (New Design)
- Thermostat Housing (Old Design)
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
- Wiring Harness, Electrical And Ignition
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1347-804626R1 | CARBURETOR ASSEMBLY | 1 | 1347-8291A3 | |||||
| 2 | 22-97282 | CONNECTOR, CARBURETOR | 1 | This Part is No Longer Available | |||||
| 3 | 24-897454 | SPRING, THROTTLE RETURN | 1 | 24-32817 | |||||
| 4 | 10-74822 | SCREW, CARBURETOR (3-1/2") | 2 | ||||||
| 5 | 16-46857 | STUD, CARBURETOR (1-7/8") | 2 | ||||||
| 6 | 805359A02 | BRACKET, THROTTLE CABLE | 1 | 41329A3 | |||||
| 7 | 16-38525 | STUD, THROTTLE CABLE | 1 | ||||||
| 8 | 12-24664 | WASHER, THROTTLE CABLE STUD | 2 | ||||||
| 9 | 23-31866 | SPACER, THROTTLE CABLE STUD | 1 | ||||||
| 10 | 11-826709109 | NUT, THROTTLE CABLE STUD | 1 | 11-20586 | |||||
| 11 | 16-96112 | STUD, THROTTLE CABLE | 1 | ||||||
| 12 | 12-29245 | WASHER, THROTTLE CABLE STUD | 2 | ||||||
| 13 | 11-8267089 | NUT, THROTTLE CABLE STUD | 1 | 11-20361 | |||||
| 14 | 11-826709109 | NUT, THROTTLE CABLE STUD | 1 | 11-20586 | |||||
| 15 | 22-48358T | PLUG, INTAKE MANIFOLD VACUUM HOLE | 1 | 22-48358 | |||||
| 16 | 27-524572 | GASKET, CARBURETOR | 1 | 2 | |||||
| 17 | 12-20084 | WASHER, CARBURETOR STUD | 4 | ||||||
| 18 | 11-29250 | NUT, CARBURETOR STUD | 2 | ||||||
| 19 | 66205 | CHOKE, AUTOMATIC - CARBURETOR | 1 | This Part is No Longer Available | |||||
| 20 | 63922 | COVER, AUTOMATIC CHOKE | 1 | 66198 | |||||
| 21 | 10-69235 | SCREW, AUTOMATIC CHOKE THERMOSTAT | 1 | ||||||
| 22 | 77931 | LEVER, CHOKE | 1 | ||||||
| 23 | 54-59989 | CLIP, AUTOMATIC CHOKE ROD | 1 | No longer made, limited availability |
