502 Mag MPI (Gen 6) GM V-8 1996 - Serial 0F802600 Thru 0K999999 - Intake Manifold And Intake Plenum

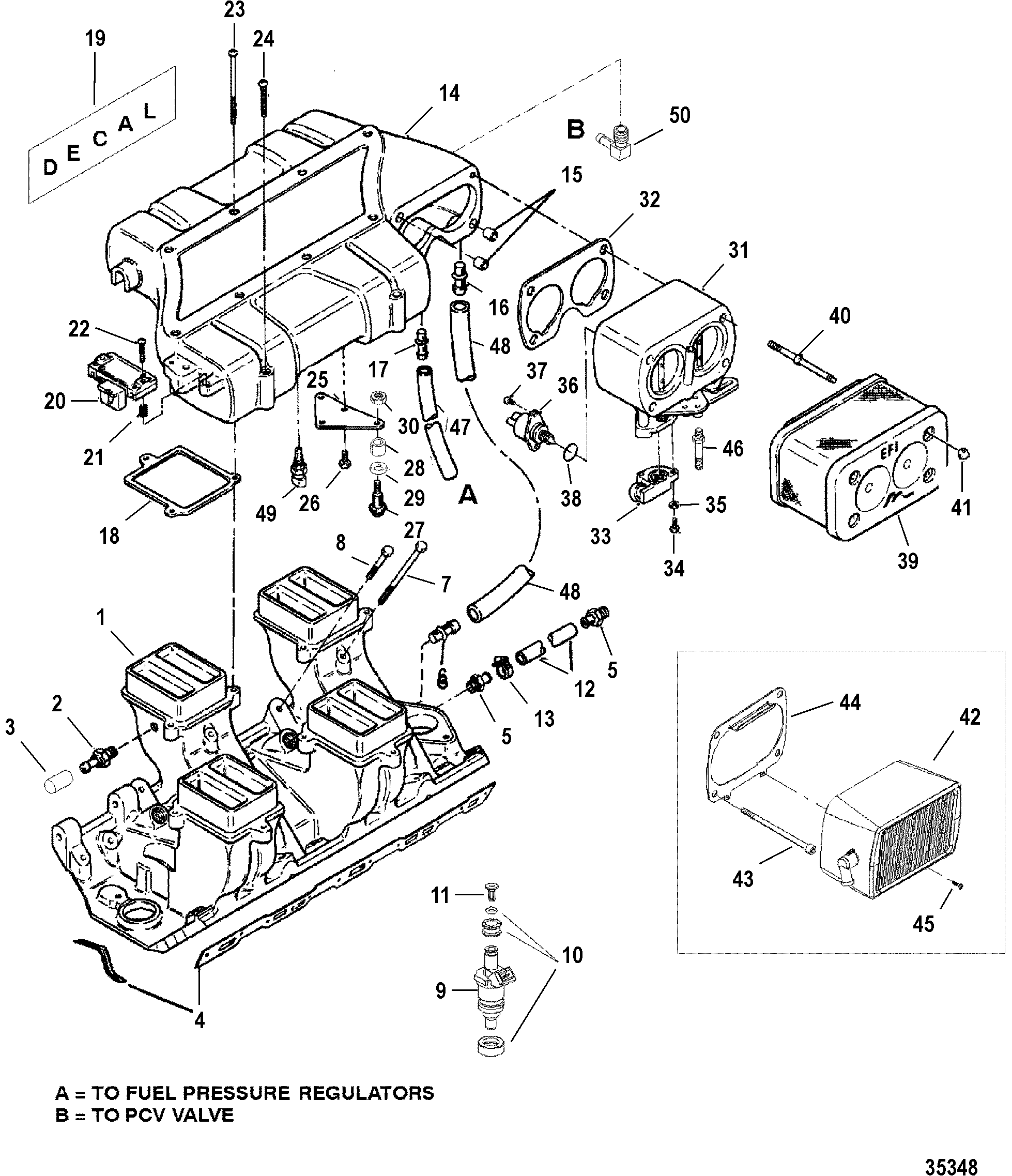

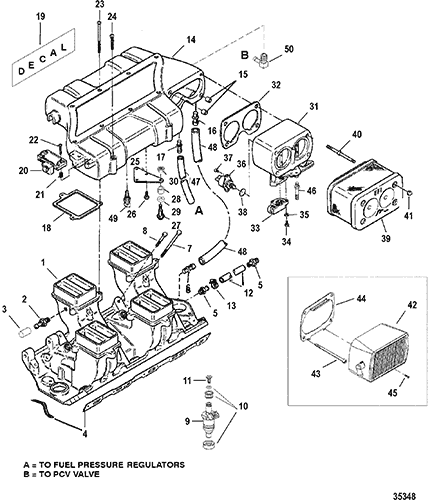

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold And Exhaust Elbow
- Flywheel Housing
- Fuel Filter (Fuel Cooled System) 0K147350 and Up
- Fuel Pump And Filter (VST Fuel System) 0K147349 and Below
- Fuel Pump and Fuel Cooler (Fuel Cooled Sys) 0K147350 and Up
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump (Fuel Cooled System) (0K147350 and Up)
- Sea Water Pump (VST Fuel System) (0K147349 and Below)
- Senders And Harness Bracket
- Shift Bracket
- Starter And Alternator
- Starter Motor (PG260)
- Thermostat Housing (Fuel Cooled System) 0K147349 and Below
- Thermostat Housing (VST Fuel System) 0K147349 and Below
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805233A6 | MANIFOLD ASSEMBLY, Intake | 1 | 805233A2 | |||||
| 2 | 22-805691 | FITTING, (.250) Barb | 1 | ||||||
| 3 | NA | NOT AVAILABLE, Not sold with this model | 0 | ||||||
| 4 | 27-805403A1 | GASKET SET | 1 | 1,2 | |||||
| 5 | 22-806242 | CONNECTOR | 2 | ||||||
| 6 | 22-805519 | FITTING, Barb (.250 Inch) | 1 | ||||||
| 7 | 10-807640 | SCREW (3/8-16 x 5-1/2 in.) | 4 | This Part is No Longer Available | |||||
| 8 | 10-807641 | SCREW (3/8-16 x 1-3/4 in.) | 12 | ||||||
| 9 | 805225A1 | INJECTOR ASSEMBLY, Fuel | 8 | ||||||
| 10 | 25-805511A1 | SEALING KIT, Fuel Injector | 8 | 1,2 | |||||
| 11 | 35-17422 | FILTER | 8 | ||||||
| 12 | 32-8059871 | HOSE, Water Pump To Intake Manifold, Bypass | 1 | ||||||
| 13 | 54-815504212 | CLAMP, Worm Gear, Hose | 2 | ||||||
| 14 | 805240A1 | PLENUM ASSEMBLY, Intake | 1 | This Part is No Longer Available | |||||
| 15 | 23-52698 | SLEEVE | 2 | ||||||
| 16 | 22-805519 | FITTING, Barb (.250 Inch) | 1 | ||||||
| 17 | 22-805598 | FITTING, (.1875) Barb | 1 | ||||||
| 18 | 27-805522A1 | GASKET SET | 1 | 1,2 | |||||
| 19 | 37-82381610 | DECAL | 1 | This Part is No Longer Available (454 MAGNUM) | |||||
| 19 | 37-82381611 | DECAL | 1 | This Part is No Longer Available (502 MAGNUM) | |||||
| 20 | 864856A1 | SENSOR ASSEMBLY | 1 | 805217A1 | |||||
| 21 | 26-805412 | SEAL | 1 | 1,2 | |||||
| 22 | 10-807120 | SCREW, (#10-24 x 1.00) | 2 | ||||||
| 23 | 10-805391 | SCREW, (.312-18 x 4.500) | 8 | ||||||
| 24 | 10-805390 | SCREW, (.312-18 x 2.250) | 4 | ||||||
| 25 | 805413T | BRACKET, Throttle Cable | 1 | This Part is No Longer Available | |||||
| 26 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 3 | ||||||
| 27 | 10-96430 | SHOULDER SCREW | 1 | ||||||
| 28 | NA | NOT AVAILABLE, Not included with this model | 0 | ||||||
| 29 | NA | NOT AVAILABLE, Not included with this model | 0 | ||||||
| 30 | 11-814101 | NUT, (.250-20) Stainless Steel | 1 | ||||||
| 31 | 805243A12 | THROTTLE BODY ASSEMBLY | 1 | This Part is No Longer Available (VST FUEL SYSTEM) SN# 0K147349 & Below | |||||
| 31 | 860204A5 | THROTTLE BODY ASSEMBLY | 1 | (FUEL COOLED SYSTEM) SN# 0K147350 & Up | |||||
| 32 | 27-805396 | GASKET, Throttle Body | 1 | 1,2 | |||||
| 33 | 805226A1 | SENSOR ASSEMBLY, TPS | 1 | ||||||
| 34 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 35 | 12-28001 | WASHER, (.188 x .438 x .049) | 2 | This Part is No Longer Available | |||||
| 36 | 805224A1 | MOTOR ASSEMBLY, IAC | 1 | ||||||
| 37 | 10-805400 | SCREW, (#8-32 x .500) Stainless Steel | 2 | ||||||
| 38 | 25-808547 | O-RING | 1 | ||||||
| 39 | 807656A2 | FLAME ARRESTOR | 1 | 805401A2 | METAL FLAME ARRESTOR | ||||
| 40 | 16-805399 | STUD | 4 | METAL FLAME ARRESTOR | |||||
| 41 | 11-805402 | NUT, Acorn | 4 | METAL FLAME ARRESTOR | |||||
| 42 | 807656A2 | FLAME ARRESTOR | 1 | PLASTIC FLAME ARRESTOR | |||||
| 43 | 10-808040 | SCREW (5/16-18 x 4 in.) | 4 | PLASTIC FLAME ARRESTOR | |||||
| 44 | 807654T | BRACKET, Flame Arrestor | 1 | PLASTIC FLAME ARRESTOR | |||||
| 45 | 10-808039 | SCREW (#6-32) | 2 | PLASTIC FLAME ARRESTOR | |||||
| 46 | NA | NOT AVAILABLE, Not included with this model | 0 | ||||||
| 47 | 32-8M0063567 | HOSE, Pressure Regulator to Intake Manifold Fitting | 1 | 32-80617333 | |||||
| 48 | 32-7381567 | TUBING, (42.00 Inches Bulk) | 1 | ||||||
| 49 | 805223T | SENSOR | 1 | ||||||
| 50 | 22-687271 | FITTING, (.250-18) 90 Degree - Brass (To Pcv Valve) | 1 | 22-68727 | |||||
| - | 27-811572A94 | GASKET SET, Overhaul | 1 | (454) | |||||
| - | 27-805396A92 | GASKET SET, Overhaul | 1 | (502) |
