4.3LXH (GEN +) (4 BBL.) GM 262 V-6 - 0F803114 THRU 0K999999 - SEA WATER PUMP ASSEMBLY (USE WITH BRAVO ENGINES)

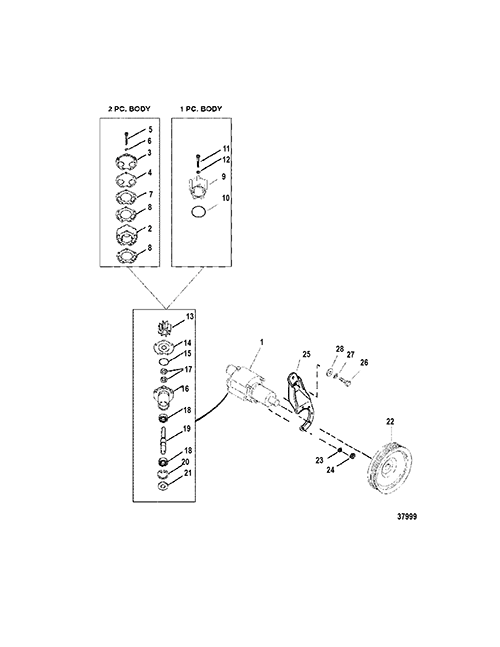

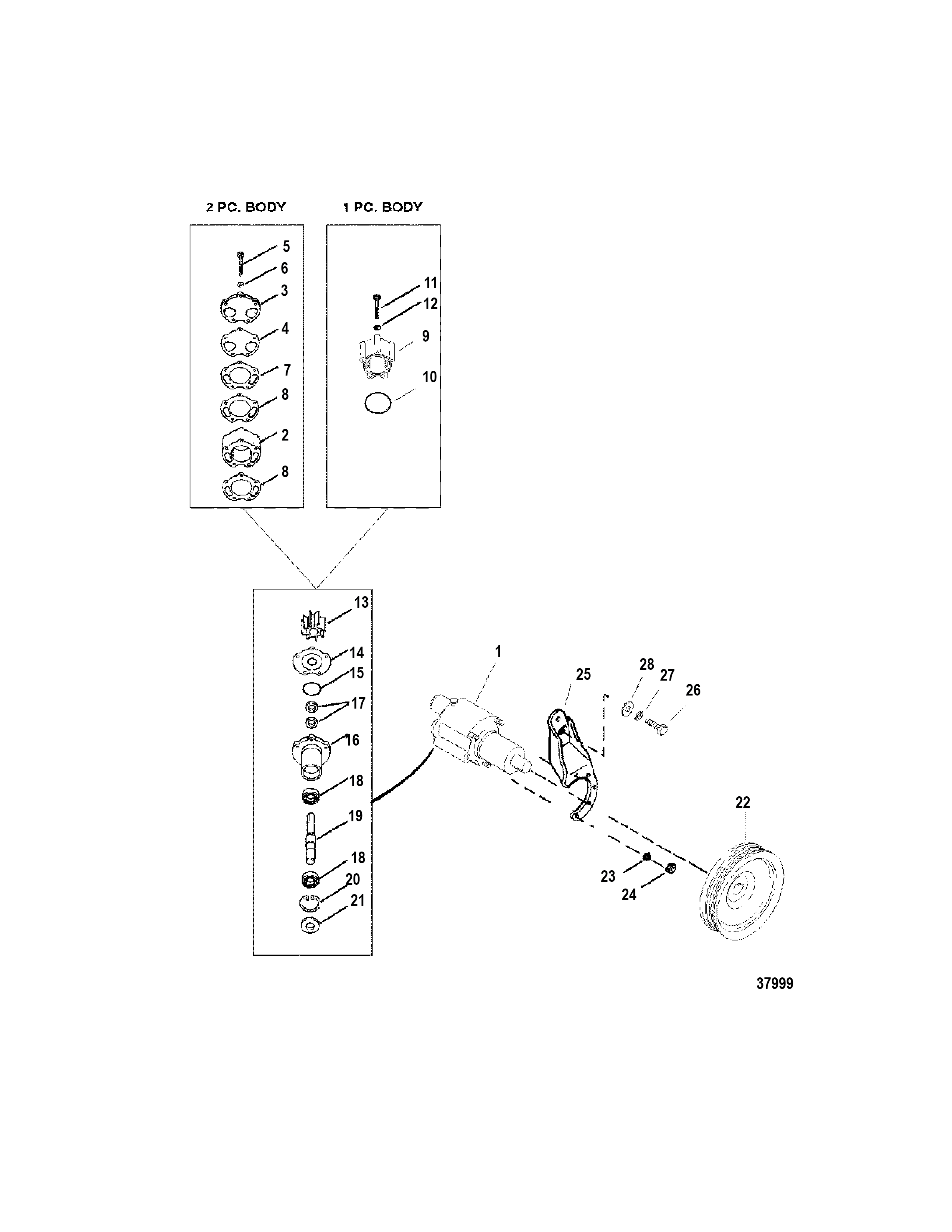

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0046 OEM: 530-807151A9, GLM: 700-12097 PUMP ASSEMBLY Sea Water (ONE PIECE BODY) 1
2 0046 72774A40 BODY ASSEMBLY Sea Water - Complete TWO PIECE BODY 1
3 0000 OEM: 525-87631A4 COVER KIT TWO PIECE BODY 1
4 0027 OEM: 525-27-8052151, Sierra: 676-18-0916 GASKET TWO PIECE BODY 1
5 0010 OEM: 525-10-73275, GLM: 700-22441 SCREW (.312-18 x 2.88) TWO PIECE BODY 2
5 0010 OEM: 525-10-99347 SCREW (.312-18 x 3.75) TWO PIECE BODY 3
6 0012 OEM: 525-12-20084, GLM: 700-21664 WASHER (.328 x .562 x .062) TWO PIECE BODY 5
7 0000 OEM: 525-94916, Sierra: 676-18-3351, GLM: 700-12502 WEAR PLATE (OUTER) TWO PIECE BODY 1
8 0027 OEM: 525-27-94914, Sierra: 676-18-0386, GLM: 700-32730 GASKET TWO PIECE BODY 2
9 0046 807151A7 BODY AND COVER ONE PIECE BODY 1
10 0025 807149 QUAD RING ONE PIECE BODY 1
11 0010 OEM: 525-10-807356 SCREW (.312-18 x 2.680) ONE PIECE BODY 2
11 0010 OEM: 525-10-74191 SCREW (.312-18 x 3.250) ONE PIECE BODY 3
12 0012 OEM: 525-12-814806, GLM: 700-21662 WASHER (.344 x .688 x .065) Stainless Steel ONE PIECE BODY 5
13 0047 593621 IMPELLER   1
14 0000 OEM: 525-94576, Sierra: 676-18-3350, GLM: 700-12501 WEAR PLATE (INNER)   1
15 0025 OEM: 525-25-94288, Sierra: 676-18-7474, GLM: 700-84026 QUAD RING   1
16 0046 OEM: 525-46-94913A5, GLM: 700-22725 HOUSING ASSEMBLY Pump   1
17 0026 OEM: 525-26-90562, Sierra: 676-18-2011, GLM: 700-85080 SEAL (1.254 x .312)   2
18 0030 OEM: 525-30-72961, Sierra: 676-18-1398, GLM: 700-21625 BEARING Ball   2
19 0000 OEM: 525-59501A1, GLM: 700-22401 SHAFT   1
20 0053 OEM: 525-53-23720, GLM: 700-21772 RING Retaining   1
21 0026 OEM: 525-26-72785, Sierra: 676-18-0531, GLM: 700-85810 SEAL   1
22 0000 807731T PULLEY   1
23 0013 OEM: 525-13-39107, GLM: 700-21496 LOCKWASHER (.312-24)   3
24 0011 OEM: 525-11-21908 NUT (.312-18) Cad Plated   3
25 0000 807749T BRACKET   1
26 0010 OEM: 525-10-34353 SCREW (.375-16 x 1.00)   2
27 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375)   2
28 0012 OEM: 525-12-34714 WASHER   1
