4.3L MPI ALPHA-BRAVO - 0W310000 THRU 0W649999 - Electrical Components

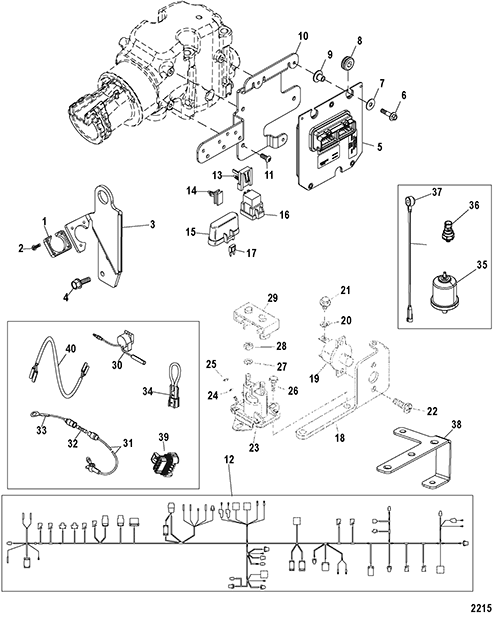

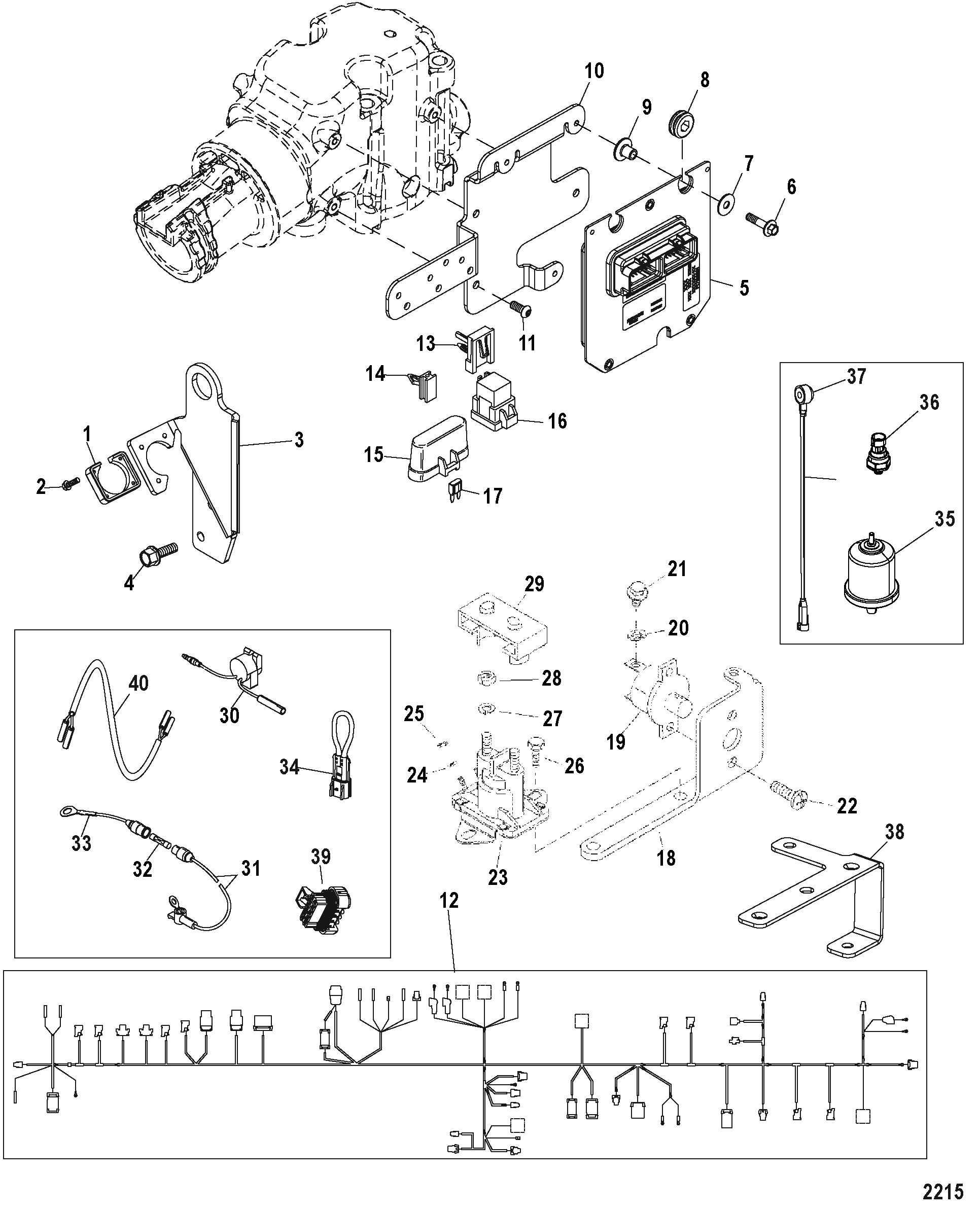

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket (Alpha)
- Shift Bracket (Bravo)
- Standard Cooling System (Seven Point Drain)
- Standard Cooling System (Single and Three Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
