4.3L MPI ALPHA-BRAVO - 0M615000 THRU 0W309999 - Exhaust Manifold and Elbow

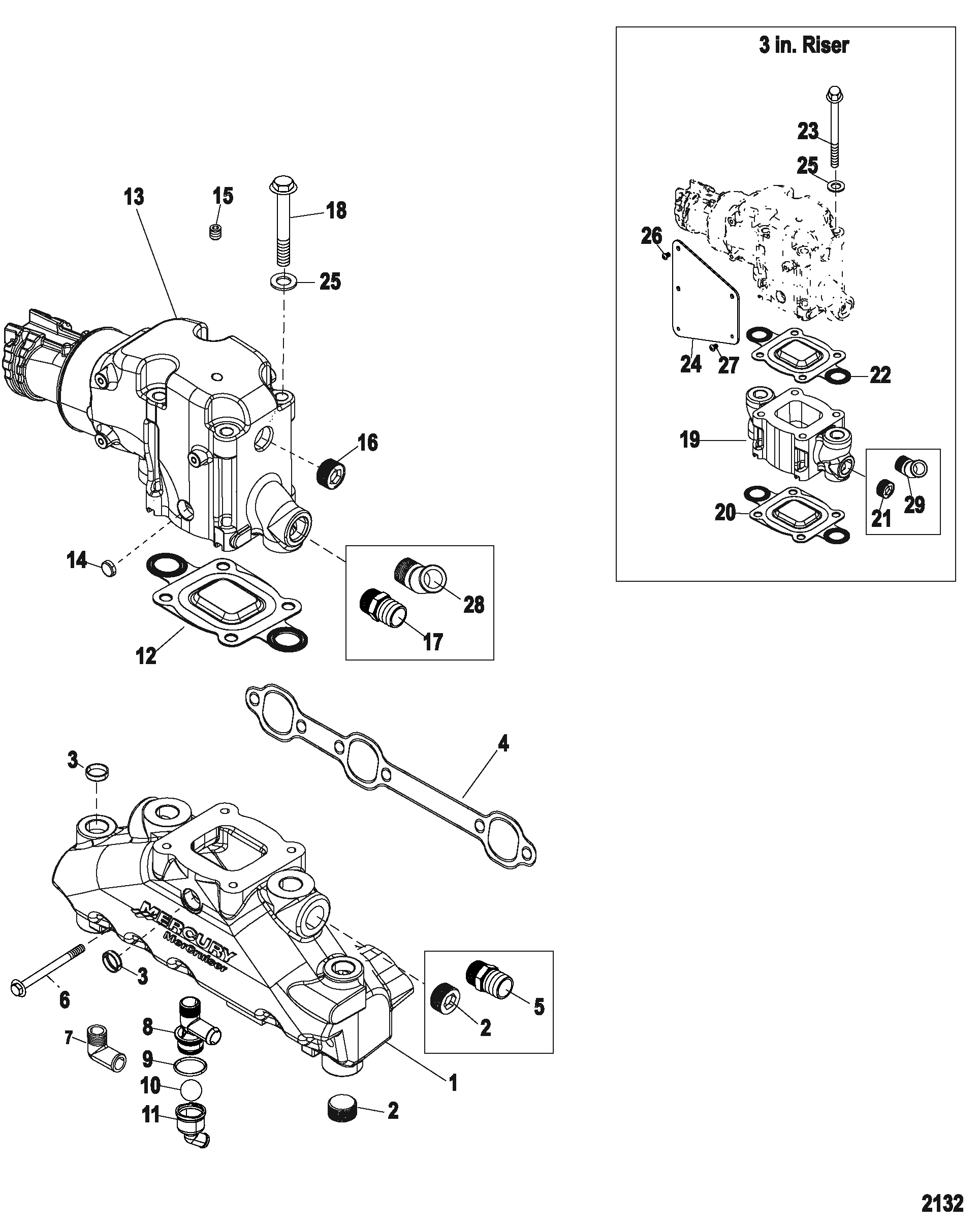

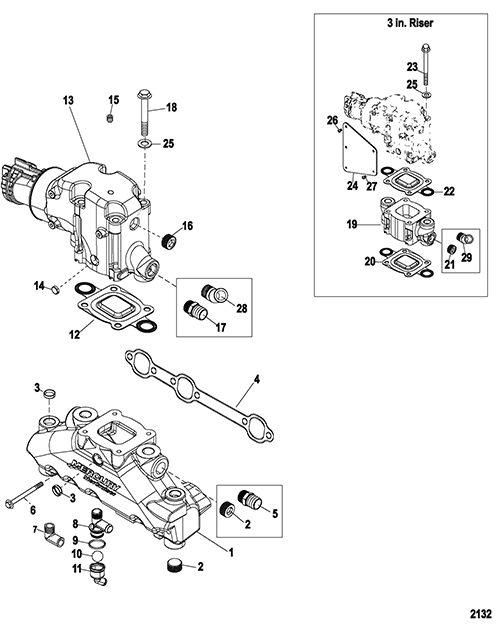

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block Camshaft Crankshaft and Balanceshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Componets
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System
- Flywheel Coupler and Flywheel Housing
- Front Cover and Circulating Pump
- Fuel Filter
- Fuel Pump and Fuel Cooler
- Gasket Set Components (27-807756A01) Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Maintenance Kits
- Mercathode Components
- Oil Pan Oil Pump and Rear Oil Seal
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket (Alpha)(SN-0M659999 and Below)
- Shift Bracket (Alpha)(SN-0M660000 and Up)
- Shift Bracket (Bravo)(SN-0M659999 and Below)
- Shift Bracket (Bravo)(SN-0M660000 and Up)
- Standard Cooling System (Seven Point Drain)
- Standard Cooling System (Single and Three Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 530-864612T01 | MANIFOLD ASSEMBLY Exhaust | 2 | ||
| 2 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | 8 | ||
| 3 | 0019 | OEM: 525-19-864689 | PLUG Expansion Expansion | 4 | ||
| 4 | 0027 | OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 | GASKET Manifold | 2 | [1] | |
| 5 | 0022 | 863804 | FITTING (.750-14) | (Closed Cooling Without Riser) | 2 | |
| 6 | 0010 | OEM: 525-10-53728, GLM: 700-21745 | SCREW (.375-16 x 4.75) | 12 | ||
| 7 | 0022 | OEM: 525-22-36305T, Sierra: 676-18-8216 | ELBOW (90 Degree) | 2 | ||
| 8 | 0022 | OEM: 530-863786A1 | FITTING ASSEMBLY Drain | 2 | ||
| 9 | 0025 | 47632 | O-RING (1.112 x .103) | 1 | ||
| 10 | 0030 | OEM: 525-30-863129 | BALL | 1 | ||
| 11 | 0000 | OEM: 525-862994T | FITTING | 1 | ||
| 12 | 0027 | 864850A1 | GASKET Elbow | (Standard Cooling) | 2 | |
| 12 | 0027 | 864549A1 | GASKET Elbow | (Closed Cooling) | 2 | |
| 13 | 0000 | 864309T01 | ELBOW ASSEMBLY Exhaust | 2 | ||
| 14 | 0019 | OEM: 525-19-864689 | PLUG Expansion Expansion | 2 | ||
| 15 | 0022 | OEM: 525-22-73379, GLM: 700-22379 | PLUG (.250-18) | 1 | ||
| 16 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | 2 | ||
| 17 | 0022 | 863804 | FITTING (.750-14) | (Without Riser) | 2 | |
| 18 | 0010 | 43749 | SCREW (.375-16 x 5.750) | 8 | ||
| 19 | 0000 | OEM: 525-864929A1 | RISER EXTENSION KIT (3 Inch) | (Standard Cooling) | 1 | |
| 19 | 0000 | OEM: 525-864929A2 | RISER EXTENSION KIT ( 3 Inch Riser ) | (Closed Cooling) | 1 | |
| 20 | 0027 | 864850A1 | GASKET Restrictor | (Standard Cooling) | 2 | |
| 20 | 0027 | 864549A1 | GASKET Block Off | (Closed Cooling) | 2 | |
| 21 | 0022 | OEM: 525-22-428611, Sierra: 676-18-4265 | FITTING Pipe - Brass (.750-14) | (Standard Cooling) | 2 | |
| 22 | 0027 | 864547A1 | GASKET Full Flow | 2 | ||
| 23 | 0010 | OEM: 525-10-8M2005021 | SCREW (.375 x 16 x 9) | 8 | ||
| 24 | 0000 | 863714T | BRACKET | 1 | ||
| 25 | 0012 | OEM: 525-12-34714 | WASHER | 8 | ||
| 26 | 0010 | OEM: 525-10-860008, GLM: 700-22375 | SCREW (.250-20 x .625) Torx | 2 | ||
| 27 | 0010 | OEM: 525-10-864378 | SCREW (.250-20 x .375) Torx | 1 | ||
| 28 | 0022 | 92499T | FITTING (45 Degree) | (With Riser) | 1 | |
| 29 | 0022 | 92499T | FITTING (45 Degree) | (Closed Cooling) | 2 | |
| - | 0027 | OEM: 525-27-807756A01 | GASKET SET Engine Overhaul | 1 |
PART NOTES:
[1] - Component of Engine Overhaul Gasket Set 807756A01
Component of Long Block Assembly-Long Block Part Numbers Listed on Service/Support Material Page
