4.3L CARB ALPHA-BRAVO - 0W300013 THRU 0W309999 - Exhaust Manifold and Elbow

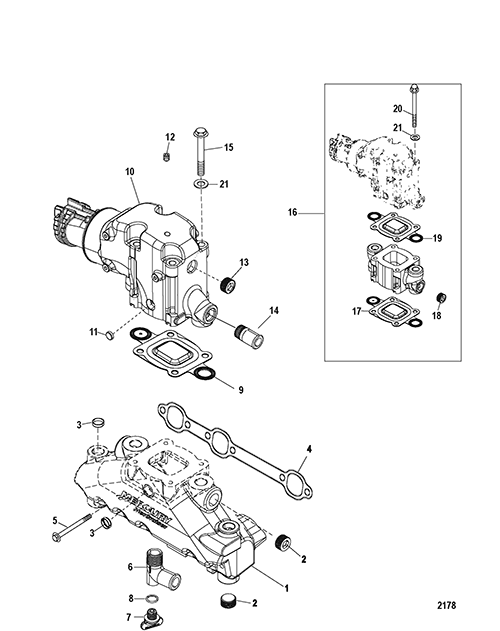

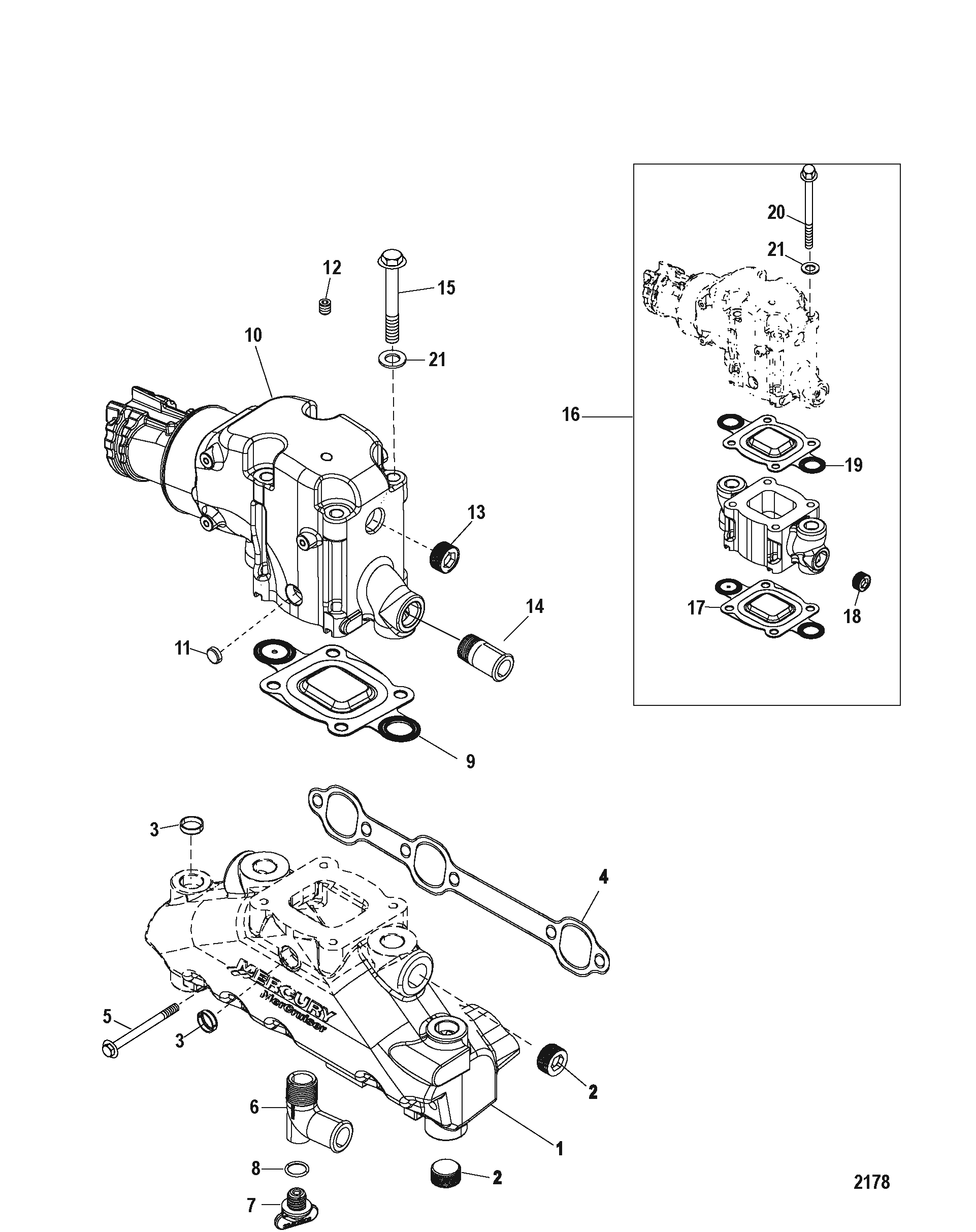

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 530-864612T01 MANIFOLD ASSEMBLY Exhaust   2
2 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   4
3 0019 OEM: 525-19-864689 PLUG Expansion Expansion   4
4 0027 OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 GASKET Manifold   2 [1]
5 0010 OEM: 525-10-53728, GLM: 700-21745 SCREW (.375-16 x 4.75)   12
6 0022 OEM: 530-862210A01, Sierra: 676-18-4224, GLM: 700-13990 ELBOW KIT Drain   1
7 0022 806608A1 PLUG KIT (.500-13) Royal Blue   1 [2]
8 0025 OEM: 525-25-62706, Sierra: 676-18-7102, GLM: 700-80430 O-RING (.426 x .070)   1
9 0027 864850A1 GASKET Elbow (No Riser) 2
10 0000 864309T01 ELBOW ASSEMBLY Exhaust   2
11 0019 OEM: 525-19-864689 PLUG Expansion Expansion   2
12 0022 OEM: 525-22-73379, GLM: 700-22379 PLUG (.250-18)   1
13 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
14 0022 863804 FITTING (.750-14)   2
15 0010 43749 SCREW (.375-16 x 5.750)   8
16 0000 OEM: 525-864929A1 RISER EXTENSION KIT (3 Inch)   1
17 0027 864850A1 GASKET Restrictor   2
18 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
19 0027 864547A1 GASKET Full Flow   2
20 0010 OEM: 525-10-8M2005021 SCREW (.375 x 16 x 9)   8
21 0012 OEM: 525-12-34714 WASHER   8
- 0027 OEM: 525-27-824326A02, GLM: 700-39014 GASKET SET Engine Overhaul   1

PART NOTES:

[1] - Component of Engine Overhaul Gasket Set 824326A02

Component of Long Block Assembly -Long Block Part Numbers Listed on Service/Support Material Page


[2] - Alternate part numbers:

806608A 1Service Part

806608Q01QS
