205 (4 BBL.) GM 262 V-6 - 0B527955 THRU 0B775129 - AUDIO WARNING SYSTEM

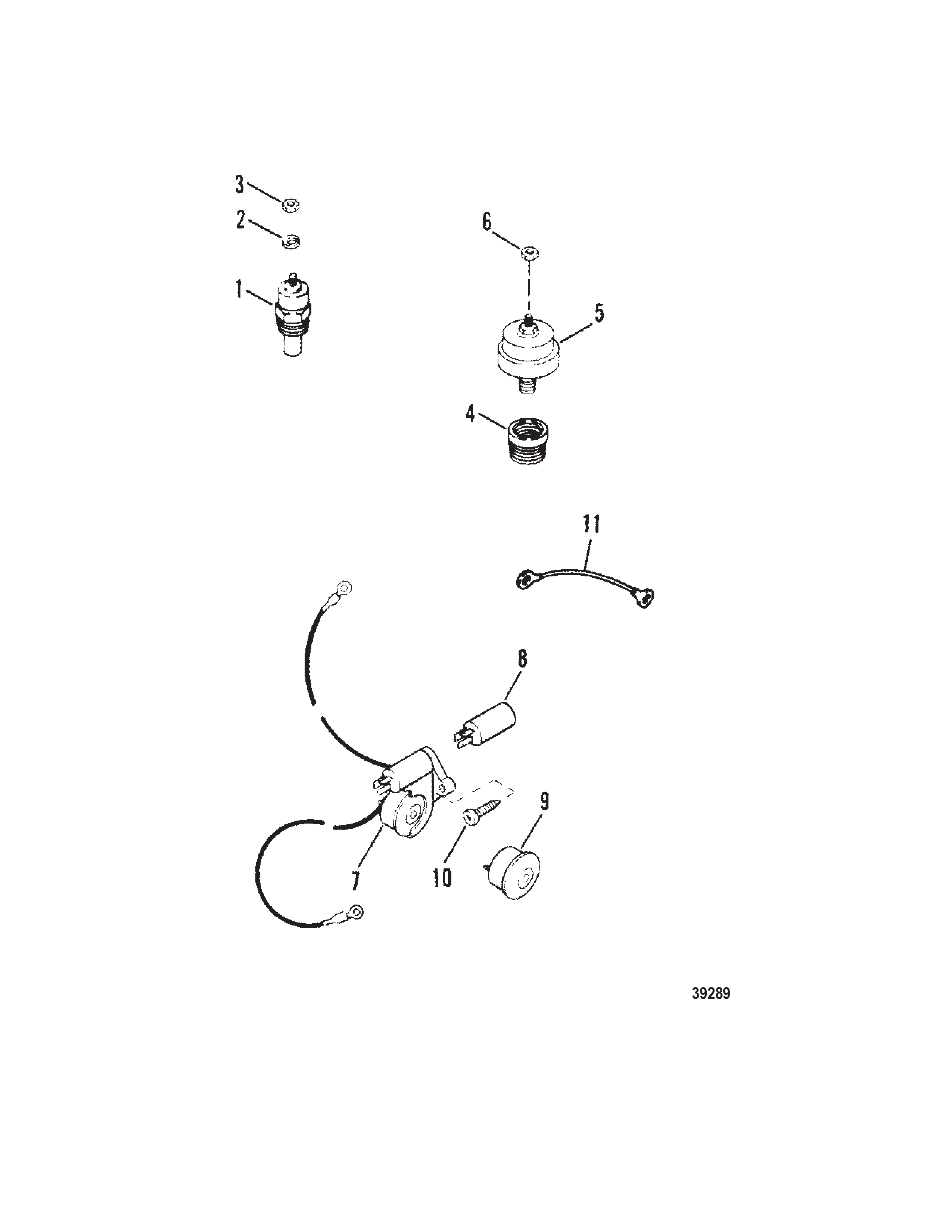

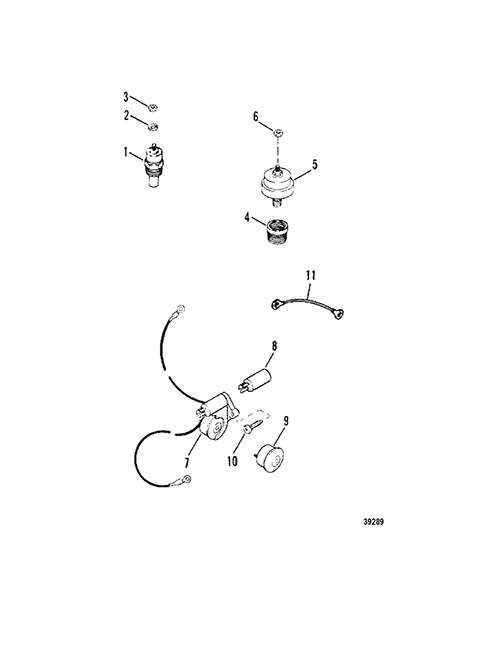

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 530-48952 SWITCH ASSEMBLY WATER TEMPATURE   1
2 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel TEMPERATURE SWITCH   1
3 0011 OEM: 525-11-45076 NUT (#10-32) Brass TEMPERATURE SWITCH   1
4 0022 18021 FITTING REDUCER   1
5 0000 38559 SWITCH   1
6 0011 OEM: 525-11-45076 NUT (#10-32) Brass PRESSURE SWITCH TERMINAL
7 0000 86047A11 HOUSING KIT (W/O BULLET CONNECTORS) 1
7 0000 86047A16 HOUSING KIT (W/BULLET CONNECTORS) 1
8 0000 86045 TIMER TEMPERATURE BUZZER   1
9 0000 68878A6 HORN ASSEMBLY Buzzer Alarm   1
10 0010 OEM: 525-10-69013 SCREW (#10-16 x .880) HORN ATTACHING   2
11 0084 13760A6 WIRE ASSEMBLY   1
