205 (4 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954] - Cylinder Block and Camshaft

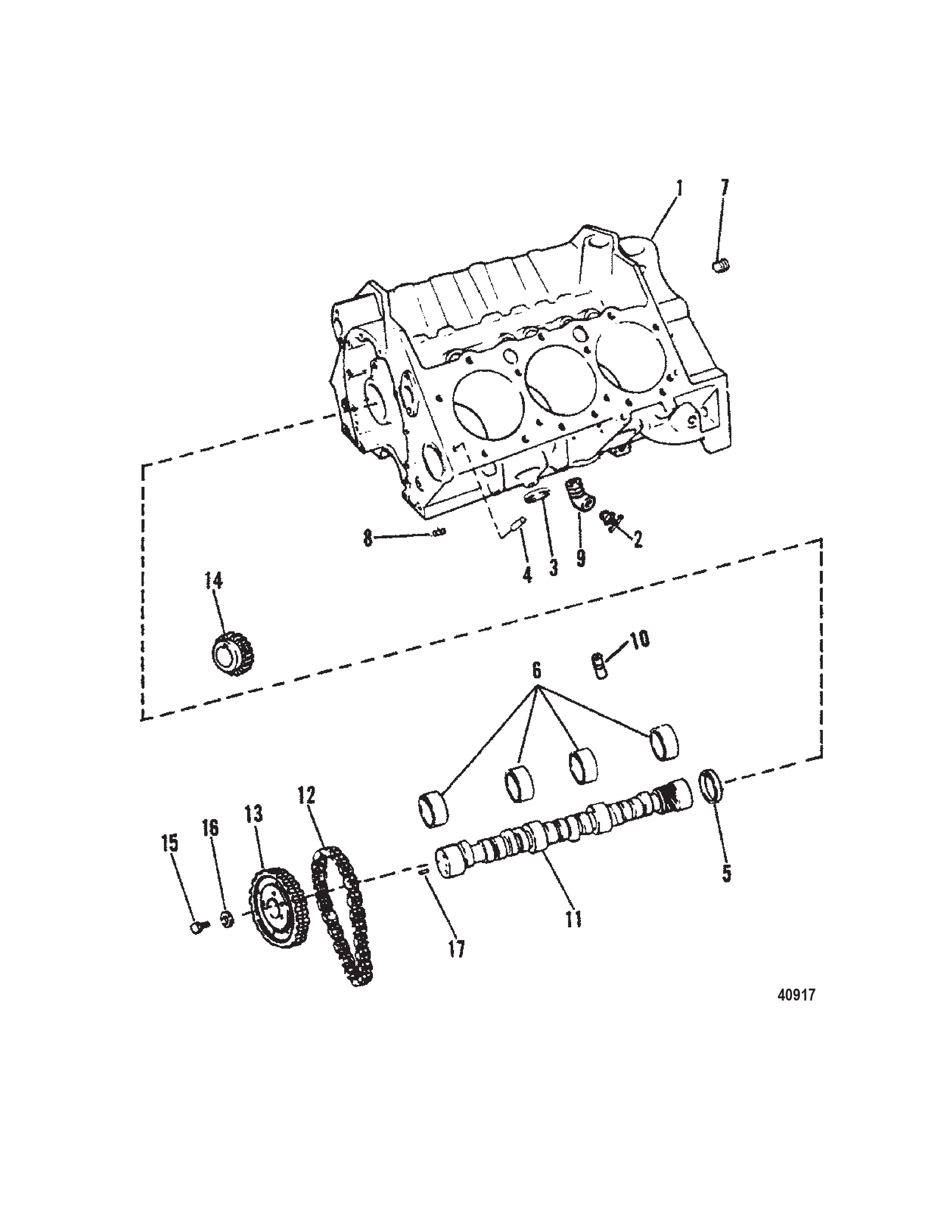

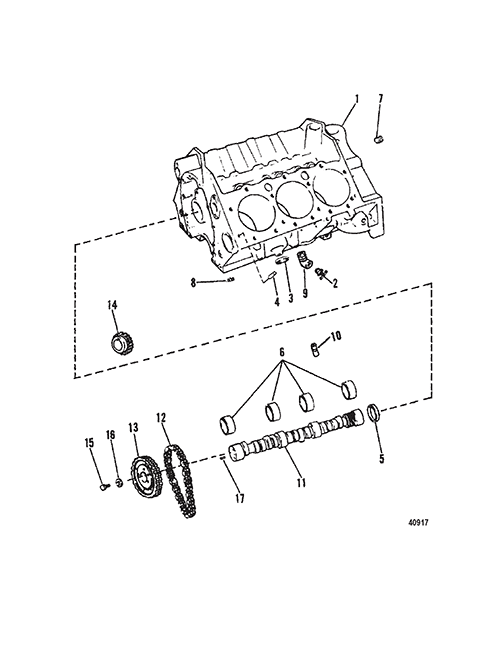

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (MANDO)
- Alternator (MOTOROLA)
- Carburetor (MerCarb) (185)
- Carburetor (Rochester) (205)
- Carburetor and Throttle Linkage (185)
- Carburetor and Throttle Linkage (205)
- Crankshaft and Pistons
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Engine Mounting
- Exhaust Manifold and Exhaust Elbow
- Exhaust System (3 In. Exhaust Elbow)
- Exhaust System (4 In. Exhaust Elbow)
- Flywheel Housing
- Fuel Pump and Fuel Filter
- Intake Manifold and Front Cover
- Oil Pan and Oil Pump
- Power Steering Components
- Service and Support Material
- Shift Bracket (NEW DESIGN)
- Shift Bracket (OLD DESIGN)
- Standard Cooling System
- Starter Motor
- Starter Motor and Alternator
- Wiring Harness and Electrical Components
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0841 | 9426 | CYLINDER BLOCK ASSEMBLY | (Use With 2 Piece Rear Seal) (SEE NOTE 1) | 1 | |
| 1 | 0841 | 9556 | CYLINDER BLOCK ASSEMBLY | (Use With 1 Piece Rear Seal, FULL CIRCLE) (SEE NOTE 1) | 1 | [1] |
| 2 | 0022 | 87238 | FITTING Cylinder Block | 2 | ||
| 3 | 0019 | OEM: 525-19-34270 | EXPANSION PLUG (1.625) Cylinder Block | 8 | ||
| 4 | 0017 | OEM: 525-17-35465 | PIN Dowel (.312) Block to Head | 4 | ||
| 5 | 0022 | OEM: 525-22-72640 | PLUG Expansion, Camshaft Bearing Hole | 1 | ||
| 6 | 0023 | 801797 | BEARING Camshaft (Set) | 1 | ||
| 7 | 0022 | 48340 | PLUG (.250-18 x .41) Oil Gallery | 5 | ||
| 8 | 0022 | OEM: 525-22-42796 | VALVE Oil Filter Bypass | 1 | ||
| 9 | 0022 | OEM: 525-22-37682 | FITTING Elbow (45 Degree) Drain Cock | 1 | ||
| 10 | 0000 | OEM: 525-72638, Sierra: 676-18-1402 | LIFTER Hydraulic Valve | 12 | ||
| 11 | 0431 | 9433 | CAMSHAFT | 1 | ||
| 12 | 0000 | 11985 | TIMING CHAIN Camshaft | 1 | ||
| 13 | 0043 | 42754 | SPROCKET Camshaft Timing | 1 | ||
| 14 | 0043 | 42755 | SPROCKET Camshaft Timing | 1 | ||
| 15 | 0010 | OEM: 525-10-34505 | SCREW (.312-18 x .875) Camshaft Timing Sprockets | 3 | ||
| 16 | 0012 | 39167 | WASHER | 3 | ||
| 17 | 0017 | 35312 | PIN Dowel (1/4 In. Diameter) Camshaft Sprocket | 1 | ||
| - | 0000 | 13409A1 | PARTIAL ENGINE 185 - 2 Barrel Carb. | (Includes Internal Parts & Cylinder Heads) | 1 | [2] |
| - | 0000 | 13410A1 | PARTIAL ENGINE 205 - 4 Barrel Carb. | (Includes Internal Parts & Cylinder Heads) | 1 | [3] |
| - | 0092 | 916011 | SEALER Red RTV | (Required for Complete Overhaul) | 1 | |
| - | 0092 | 342271 | SEALING COMPOUND (16 Ounce) | (Required for Complete Overhaul) | 1 | |
| - | 0027 | OEM: 525-27-11977A88, Sierra: 676-18-4388 | GASKET SET Engine | (Required for Complete Overhaul) | 1 |
PART NOTES:
[1] - Alternate part numbers:
14149R 5Reman
14149R50Reman Int'l
9556QS
[2] - Alternate part numbers:
13409A 1QS
14149R 5Reman
14149R50Reman Int'l
[3] - Alternate part numbers:
13410A 1QS
14149R 5Reman
14149R50Reman Int'l
