185 (2 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954 - Shift Bracket (OLD DESIGN)

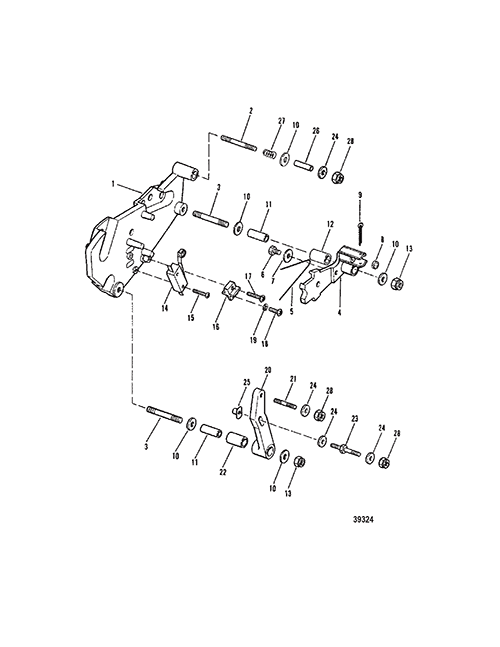

Section Drawing: (Hover or click to view larger)



Ref # Part Class Part Number Description Comments Qty Note
1 0000 99237A10 BRACKET ASSEMBLY   1
2 0016 98798 STUD Shift Cable   1
3 0016 96108 STUD Shift Bracket   2
4 0000 45517A2 ARM ASSEMBLY Actuating   1
5 0024 45599 SPRING Actuating Lever   1
6 0010 OEM: 525-10-88743 SCREW (.312-18 x .500) Spring to Lever   1
7 0012 OEM: 525-12-56720 WASHER (.330 x .750 x .060) Stainless Steel   1
8 0023 OEM: 525-23-98828 SPACER Rubber Pad   1
9 0018 32857 COTTER PIN Shift Cable Retaining   1
10 0012 OEM: 525-12-56720 WASHER (.330 x .750 x .060) Stainless Steel Shift Bracket Stud   5
11 0023 37981 SPACER Shift Bracket Stud   2
12 0023 45600 SLEEVE Actuating Lever   1
13 0011 35814 NUT (.312-24) Stainless Steel   2
14 0000 39670A28 SWITCH ASSEMBLY Cut-Out   1
15 0010 30902 SCREW (#6-32 x .750) Switch to Shift Bracket   2
16 0086 66986 TERMINAL BLOCK   1
17 0010 OEM: 525-10-96113 SCREW (#10-32 x .880) Stainless Steel Terminal Block   1
18 0010 OEM: 525-10-73287 SCREW (#10-32 x .380) Terminal Block   1
19 0013 OEM: 525-13-26996 LOCKWASHER (#10) Stainless Steel   2
20 0000 95854A3 LEVER ASSEMBLY Shift   1
21 0016 98851 STUD Shift Cable   1
22 0023 45600 SLEEVE Shift Lever   1
23 0016 96112 STUD (.250-28 x 2.00) Shift Cable   1
24 0012 OEM: 525-12-35462 WASHER (.2656 x .625 x .0625) Stainless Steel   5
25 0011 OEM: 525-11-63341 TEE NUT Shift Cable Stud   1
26 0023 98820 SPACER Shift Cable Stud   1
27 0024 OEM: 525-24-98880 SPRING Shift Cable Stud   1
28 0011 20361 NUT (.250-28)   3
