250 VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Gear Housing,, Prop Shaft-Counter Rotation, 5.44 Torpedo

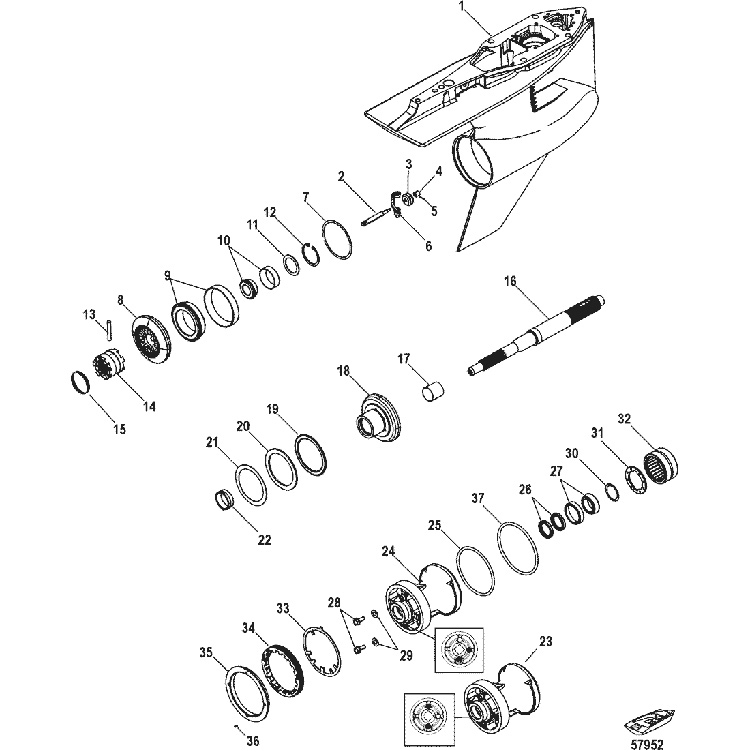

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Gear Housing,, Driveshaft, 5.44 Torpedo
- Gear Housing,, Prop Shaft-Counter Rotation, 5.44 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 Thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 1600-8M0078251 | GEAR HOUSING ASSEMBLY, Complete, Black (Long)(1.85:1) | 1 | ||||||
| - | 1600-8M0089984 | GEAR HOUSING ASSEMBLY, Complete, Silver (Long)(1.85:1) | 1 | ||||||
| - | 1600-8M0117254 | GEAR HOUSING ASSEMBLY, Complete, Black (X-Long)(1.85:1) | 1 | 8M0078248 | |||||
| - | 1600-8M0117242 | GEAR HOUSING ASSEMBLY, Complete, Silver (X-Long)(1.85:1) | 1 | 8M0089986 | |||||
| - | 1600-8M0117256 | GEAR HOUSING ASSEMBLY, Complete, Black (XX-Long)(1.85:1) | 1 | ||||||
| - | 1600-8M0089988 | GEAR HOUSING ASSEMBLY, Complete, Silver (XX-Long)(1.85:1) | 1 | ||||||
| - | 1600-8M0102483 | GEAR HOUSING ASSEMBLY, Complete, Silver (Long)(1.75:1) | 1 | ||||||
| - | 1600-8M0117249 | GEAR HOUSING ASSEMBLY, Complete, Silver (Long)(1.75:1) | 1 | 8M0102484 | |||||
| - | 1600-8M0102485 | GEAR HOUSING ASSEMBLY, Complete, Silver (XX-Long)(1.75:1) | 1 | ||||||
| 1 | 1600-8M0117258 | GEAR HOUSING ASSEMBLY, Basic, Black | 1 | 8M0053108 | |||||
| 1 | 1600-8M0117251 | GEAR HOUSING ASSEMBLY, Basic, Silver | 1 | 8M0053107 | |||||
| 2 | 8M0053114 | SPOOL ASSEMBLY | 1 | ||||||
| 3 | NSS | NOT SOLD SEPARATE, SPOOL | 1 | ||||||
| 4 | NSS | NOT SOLD SEPARATE, SLEEVE | 1 | ||||||
| 5 | 18-469501 | COTTER PIN | 1 | ||||||
| 6 | 8M0046215 | CRANK, Shifter, 1/4 Pivot Pin | 1 | ||||||
| 7 | 15-8M0063270 | SHIM SET | 1 | ||||||
| 8 | 43-8M0053122 | GEAR KIT, Reverse | 1 | ||||||
| 8 | 43-8M0053121 | GEAR KIT, Reverse | 1 | ||||||
| 9 | 31-884323T01 | BEARING ASSEMBLY, Roller | 1 | ||||||
| 10 | 31-884325T01 | BEARING ASSEMBLY, Roller-Tappered | 1 | ||||||
| 11 | 12-8M0053823 | THRUST WASHER | 1 | ||||||
| 12 | 53-8M0051043 | RETAINING RING | 1 | ||||||
| 13 | 17-8M0045493 | PIN | 1 | ||||||
| 14 | 52-8M0053113 | CLUTCH | 1 | ||||||
| 15 | 24-8M0050575 | SPRING | 1 | ||||||
| 16 | 44-8M0073657 | PROPELLER SHAFT, 1 Inch | 1 | ||||||
| 16 | 44-8M0103300 | PROPELLER SHAFT, 1.25 Inch | 1 | ||||||
| 17 | 23-8M0064306 | SPACER | A/R | ||||||
| 18 | 43-8M0053119 | GEAR SET, 13/24 (1.85:1), Forward | 1 | ||||||
| 18 | 43-8M0053120 | GEAR SET, 12/21 (1.75:1), Forward | 1 | ||||||
| 19 | 31-8M0050692 | BEARING | 1 | ||||||
| 20 | 12-8M0050688 | WASHER | 1 | ||||||
| 21 | 15-8M0053116 | SHIM SET | A/R | ||||||
| 22 | 8M0053183 | ADAPTOR | 1 | ||||||
| 23 | 8M0097323 | CARRIER ASSEMBLY, Bearing, 1.85 Ratio | 1 | ||||||
| 24 | 8M0117237 | CARRIER ASSEMBLY, Bearing, 1.75 Ratio | 1 | ||||||
| 25 | 25-8M0000190 | O-RING, (4.475 x .210) | 1 | ||||||
| 26 | 26-888483 | SEAL, Oil | 2 | ||||||
| 27 | 31-884330T01 | BEARING ASSEMBLY, Tapered | 1 | ||||||
| 28 | 10-8M0071653 | SCREW, Special | 2 | ||||||
| 29 | 26-830749 | SEAL | 2 | ||||||
| 30 | 15-8M0076745 | SHIM SET | 1 | ||||||
| 30 | 12-8M0050423 | WASHER, .020 | A/R | ||||||
| 30 | 12-8M0050424 | WASHER, .022 | A/R | ||||||
| 30 | 12-8M0050425 | WASHER, .024 | A/R | ||||||
| 30 | 12-8M0050427 | WASHER, .026 | A/R | ||||||
| 30 | 12-8M0050428 | WASHER, .028 | A/R | ||||||
| 30 | 12-8M0050429 | WASHER, .030 | A/R | ||||||
| 30 | 12-8M0050430 | WASHER, .032 | A/R | ||||||
| 30 | 12-8M0050431 | WASHER, .034 | A/R | ||||||
| 30 | 12-8M0050432 | WASHER, .036 | A/R | ||||||
| 30 | 12-8M0050433 | WASHER, .038 | A/R | ||||||
| 30 | 12-8M0050434 | WASHER, .040 | A/R | ||||||
| 30 | 12-8M0050435 | WASHER, .042 | A/R | ||||||
| 30 | 12-8M0050436 | WASHER, .044 | A/R | ||||||
| 30 | 12-8M0050437 | WASHER, .046 | A/R | ||||||
| 30 | 12-8M0050438 | WASHER, .048 | A/R | ||||||
| 30 | 12-8M0050439 | WASHER, .050 | A/R | ||||||
| 31 | 53-8M0056639 | RING, Retainer | 1 | ||||||
| 32 | 31-8M0050704 | BEARING, Needle | 1 | ||||||
| 33 | 14-8M0108527 | TAB WASHER | 1 | ||||||
| 34 | 11-8M0001491 | NUT, Retainer | 1 | ||||||
| 35 | 8M0050726 | COVER KIT | 1 | ||||||
| 35 | 8M0050821 | COVER KIT, Flush, Standard | 1 | ||||||
| 36 | 10-8M0036819 | SET SCREW, (10-32) | 1 | ||||||
| 37 | 12-8M0046569 | RING, Thrust | 1 |
