250 VERADO 4-STROKE 6 CYL - Serial 0T980000 Thru 1B226999 - Crankshaft, Pistons and Connecting Rods

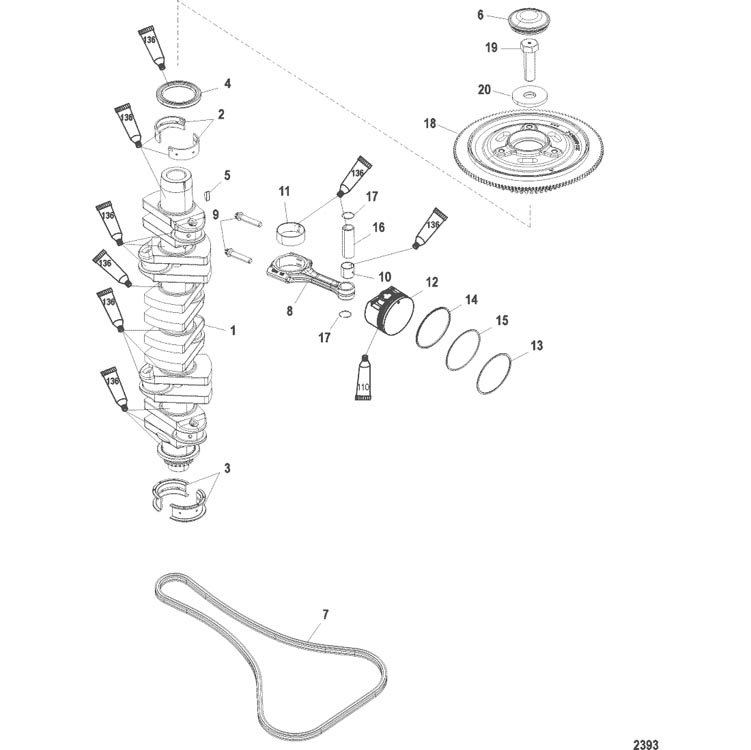

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor/Electrical Cable Bracket Mounting
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 400-891644A04 | CRANKSHAFT ASSEMBLY | 1 | ||||||
| 2 | 23-897498T01 | BEARING, Green-Upper Crankshaft | 12/AR | 895715T01 | |||||
| 2 | 23-897498T02 | BEARING, Navy Blue-Upper Crankshaft | 12/AR | 895715T02 | |||||
| 2 | 23-897498T03 | BEARING, White-Upper Crankshaft | 12/AR | 895715T03 | |||||
| 2 | 23-897498T04 | BEARING, Orange-Upper Crankshaft | 12/AR | 895715T04 | |||||
| 3 | 23-892309T01 | BEARING, Thrust-Green-Lower Crankshaft | 2/AR | 895716T01 | |||||
| 3 | 23-892309T02 | BEARING, Thrust-Navy Blue-Lower Crankshaft | 2/AR | 895716T02 | |||||
| 3 | 23-892309T03 | BEARING, Thrust-White-Lower Crankshaft | 2/AR | 895716T03 | |||||
| 3 | 23-895716T04 | BEARING, Thrust-Orange-Lower Crankshaft | 2/AR | ||||||
| 4 | 26-8M0032912 | SEAL, Top Main Bearing | 1 | 8805251 | |||||
| 5 | 28-91800 | KEY, Woodruff | 1 | ||||||
| 6 | 19-885348 | CAP, Flywheel Bolt | 1 | ||||||
| 7 | 897797A02 | CHAIN | 1 | No Longer Available | |||||
| 8 | 662-881210T02 | CONNECTING ROD ASSEMBLY | 6 | ||||||
| 9 | 10-884441 | BOLT | 12 | ||||||
| 10 | 23-881211 | BUSHING | 6 | ||||||
| 11 | 23-892005A01 | BEARING, Connecting Rod - Blue | 12/AR | ||||||
| 11 | 23-892005A02 | BEARING, Connecting Rod - White | 12/AR | ||||||
| 11 | 23-892005A03 | BEARING, Connecting Rod - Orange | 12/AR | ||||||
| 12 | 700-897737A04 | PISTON ASSEMBLY | 6 | 896092T01 | |||||
| 13 | 39-881180A02 | RING SET, Piston | 1 | 881180A01 | |||||
| 14 | NSS | Piston Ring-Oil | 6 | No Sold Separate | |||||
| 15 | NSS | Piston Ring-2nd | 6 | No Sold Separate | |||||
| 16 | NSS | Piston Pin | 6 | No Sold Separate | |||||
| 17 | 40-881184 | CIRCLIP | 12 | ||||||
| 18 | 200-888983T03 | FLYWHEEL | 1 | 888983T02 | |||||
| 19 | 10-880515 | BOLT, (M20 x 68 MM) | 1 | ||||||
| 20 | 12-880517 | WASHER | 1 | ||||||
| - | 27-880552A07 | GASKET SET, Powerhead | 1 | 880552A05 | |||||
| - | 61-895247R06 | POWERHEAD ASSEMBLY | 1 | 895247A05 |
