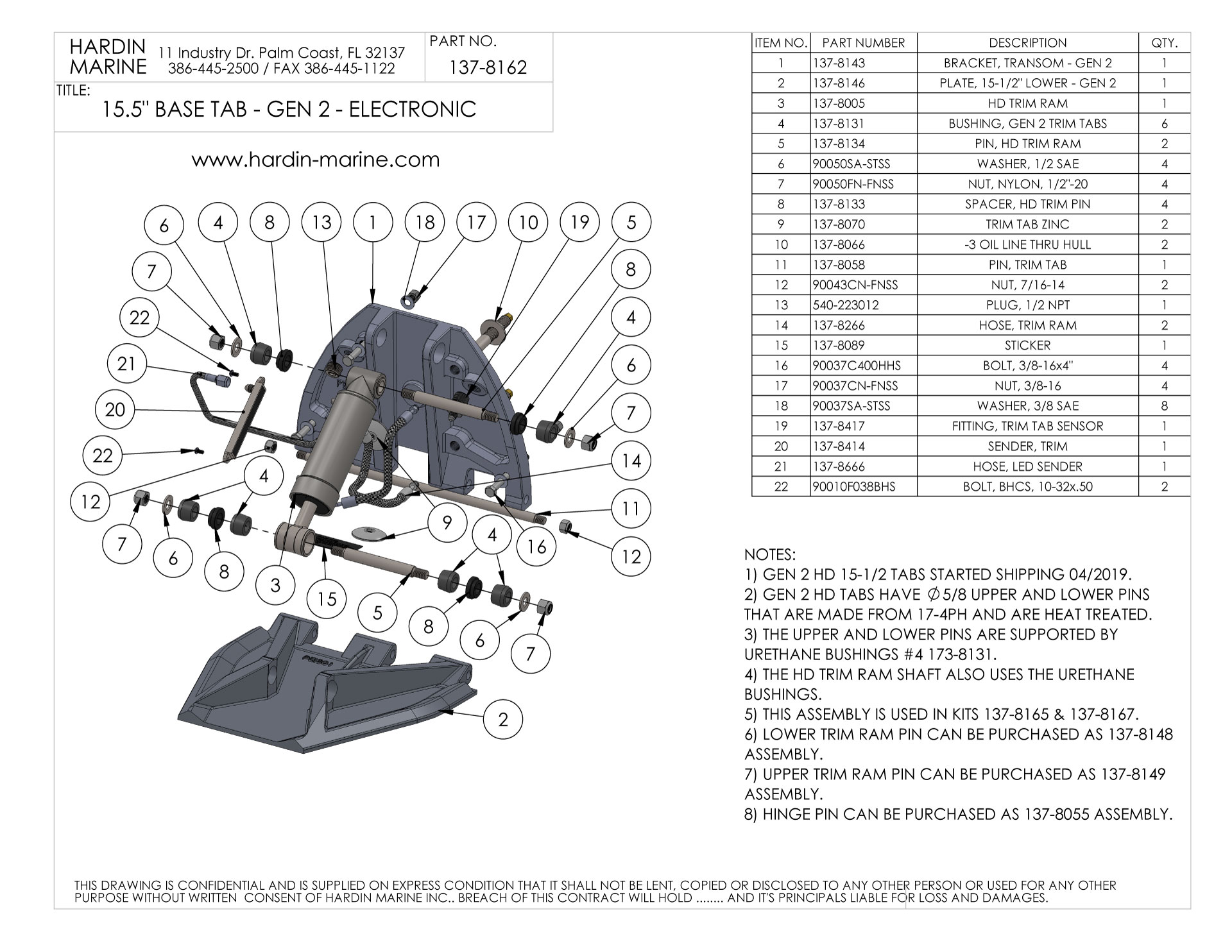

15.5 in Trim Tabs
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 137-8143 BRACKET, TRANSOM - GEN 2 1
2 137-8146 PLATE, 15-1/2" LOWER - GEN 2 1
3 137-8005 HD TRIM RAM 1
4 137-8131 BUSHING, GEN 2 TRIM TABS 6
5 137-8134 PIN, HD TRIM RAM 2
6 90050SA-STSS WASHER, 1/2 SAE 4
7 90050FN-FNSS NUT, NYLON, 1/2"-20 4
8 137-8133 SPACER, HD TRIM PIN 4
9 137-8070 TRIM TAB ZINC 2
10 137-8066 -3 OIL LINE THRU HULL 2
11 137-8058 PIN, TRIM TAB 1
12 90043CN-FNSS NUT, 7/16-14 2
13 540-223012 PLUG, 1/2 NPT 1
14 137-8266 HOSE, TRIM RAM 2
15 137-8089 STICKER 1
16 90037C400HHS BOLT, 3/8-16x4" 4
17 90037CN-FNSS NUT, 3/8-16 4
18 90037SA-STSS WASHER, 3/8 SAE 8
19 137-8417 FITTING, TRIM TAB SENSOR 1
20 137-8414 SENDER, TRIM 1
21 137-8666 HOSE, LED SENDER 1
22 90010F038BHS BOLT, BHCS, 10-32x.50 2
